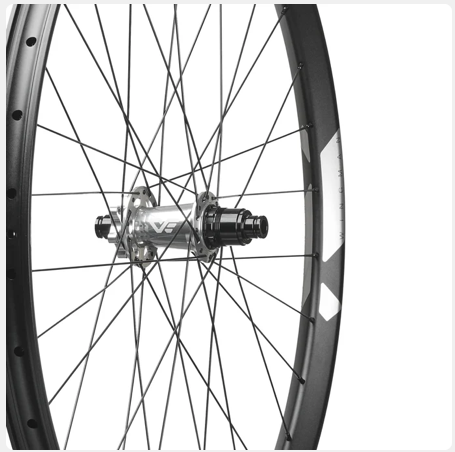

Wingman Downhill Origin Alloy 27.5" Rear Wheel

Wingman Origin Alloy Rear Wheel – Clockwork Hub

Built to handle everything from aggressive trail riding to full-power eMTBs, the Wingman Origin Alloy Rear Wheel combines the strength of the Origin rim with the proven reliability of the Wingman Clockwork rear hub. This is a wheel designed for riders who want maximum durability, easy servicing and dependable performance season after season.

The Wingman Origin rim is constructed from premium 6069 aluminium and features a unique hollow-bead profile that delivers exceptional impact resistance while helping reduce pinch flats. A welded rim joint, reinforced spoke holes and premium triple-butted spokes create a wheel that's ready for hard landings, rough terrain and demanding conditions.

At its centre is the Wingman Clockwork rear hub, utilising a proven star ratchet mechanism renowned for its durability, low maintenance and consistent performance. The standard 36-tooth ratchet provides 10° engagement for reliable power transfer, while an optional 45-tooth upgrade is available for riders wanting quicker engagement. Additional hub seals help prevent water ingress, a reinforced butted axle improves strength, and premium TPI sealed bearings deliver smooth, long-lasting performance.

Hand-built with premium Pillar Sandvik triple-butted spokes and locking brass nipples, this is a wheel built to stay true and keep performing ride after ride.

Features

• Wingman Origin 6069 aluminium rim
• Wingman Clockwork rear hub
• Proven star ratchet drive system

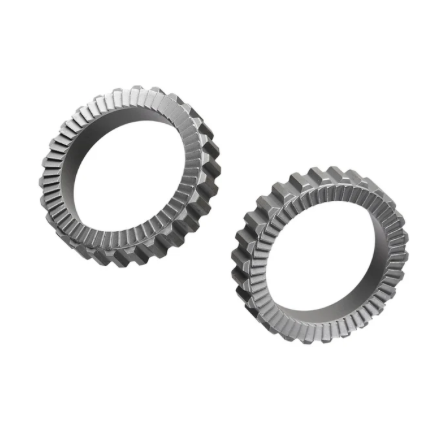

• 36-tooth ratchet (10° engagement)
• Optional 45-tooth ratchet upgrade
• 30mm internal rim width
• Hollow-bead rim technology for superior impact resistance
• Welded rim joint for maximum strength
• Reinforced spoke holes with machined washers
• Hand-built and precision tensioned
• Pillar Sandvik triple-butted spokes
• Locking brass nipples
• Premium TPI sealed bearings
• Reinforced butted axle for increased durability
• Additional hub seals for improved weather resistance
• Available with HG, Shimano Microspline or SRAM XD freehub bodies
• Boost 148x12mm, Super Boost 157x12mm and 150x12mm options
• IS 6-bolt rotor mount
• Tubeless ready

Ideal for

• Trail
• Enduro
• Downhill
• eMTB
• Riders wanting a strong, reliable and easily serviceable rear wheel with proven star ratchet performance.
