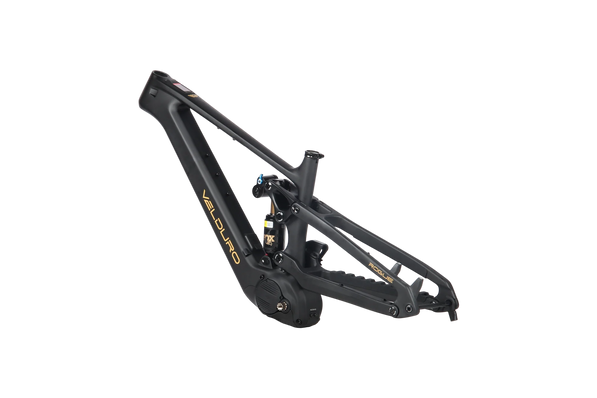

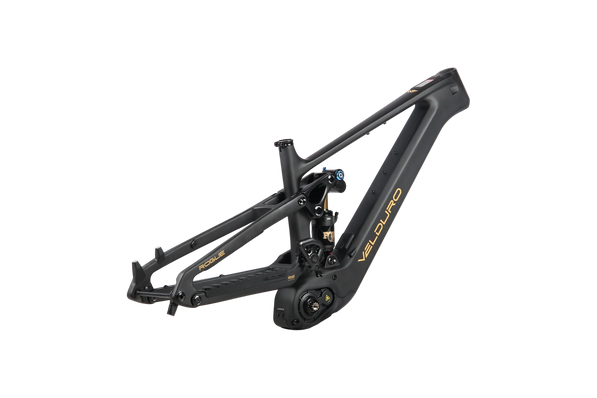

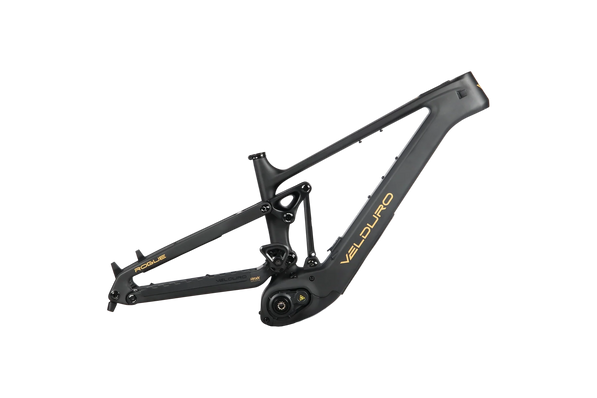

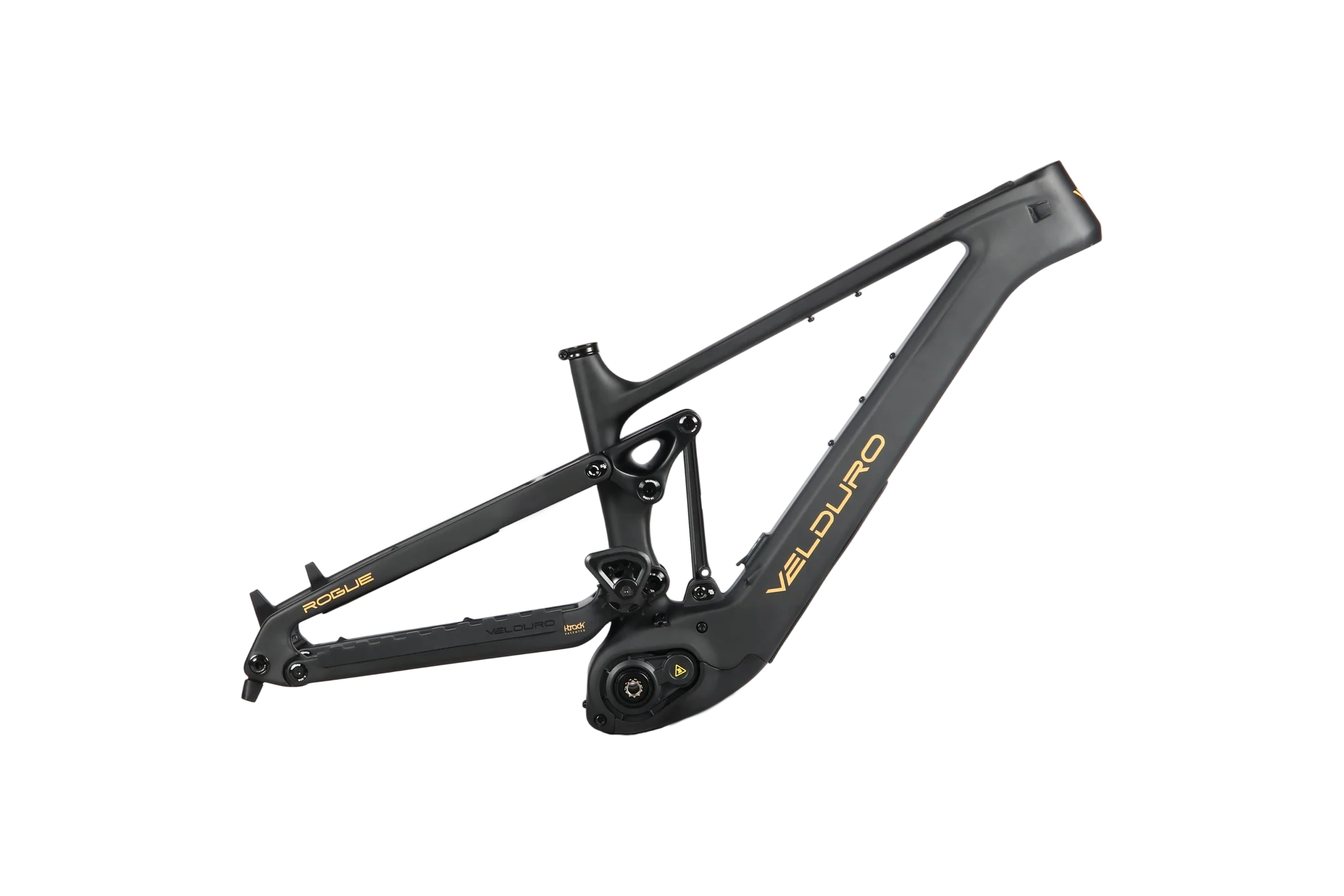

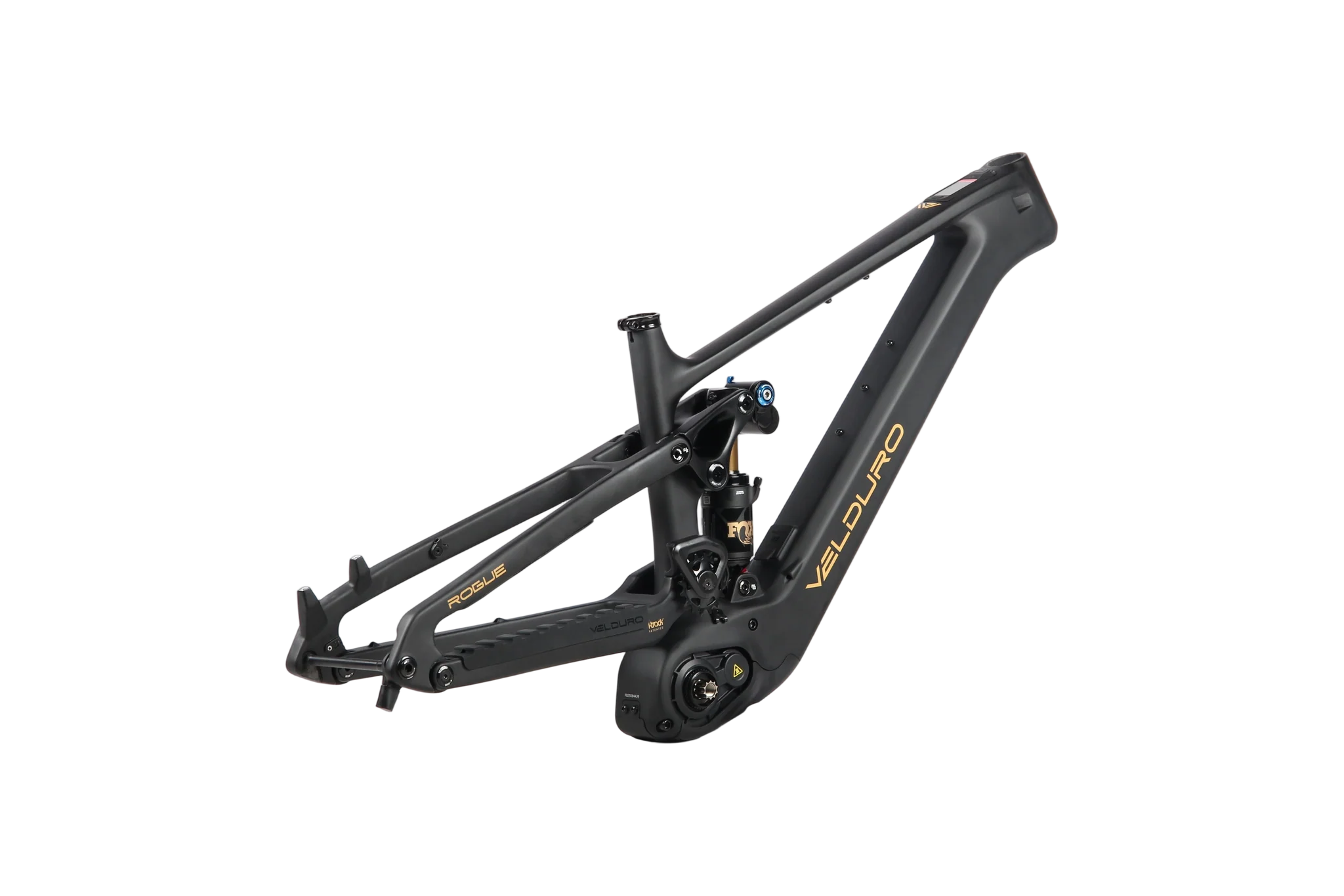

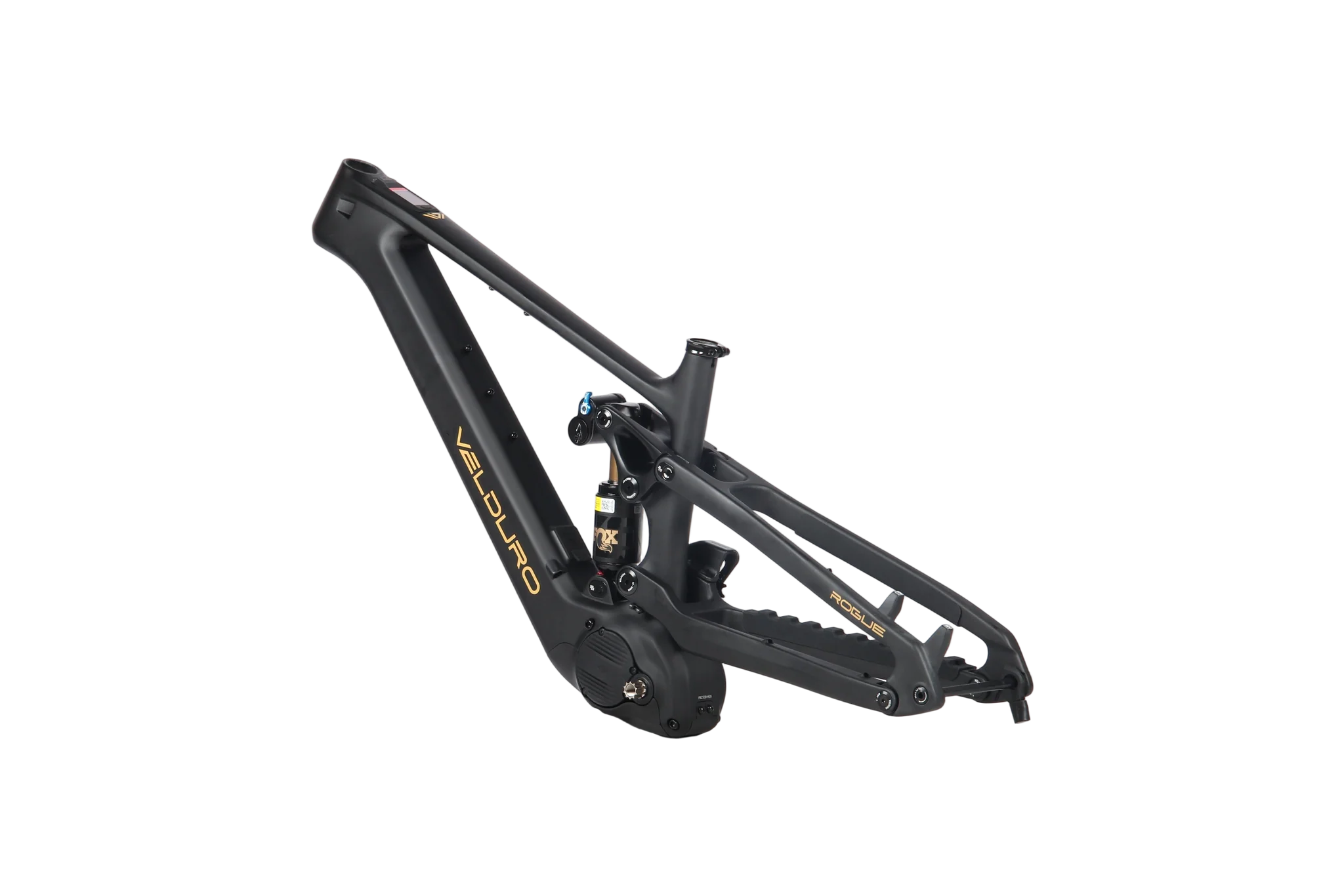

Velduro Rogue - Frameset with X2 shock

Velduro Part no. 10125

Low stock

    $8,839.00
    $8,839.00
    Velduro Rogue - Frameset with X2 shock
    Velduro Rogue - Frameset with X2 shock
    Velduro Rogue - Frameset with X2 shock

    VELDURO ROGUE BUILT DIFFERENT

    The Velduro Rogue is a carbon-fibre enduro eMTB built around the DJI Avinox drive system and Velduro's mid-pivot i-Track suspension platform. Configurable as a full 29er or mullet with up to 172mm of rear travel, the Rogue is designed as a highly adaptable platform for aggressive trail and enduro riding.

    UP TO 172MM
    Rear travel

    29" OR MULLET
    Adjustable wheel configuration

    DJI AVINOX M2S
    130Nm · 150Nm Boost

    800WH
    DJI Avinox battery

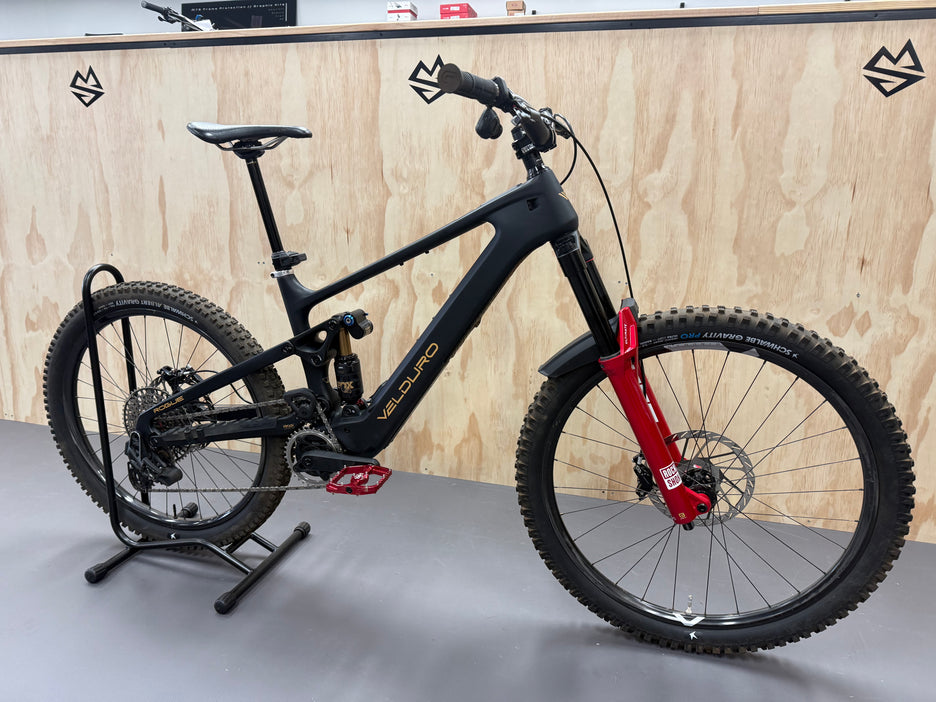

    Velduro Rogue electric mountain bike at CB Cycles Australind

    OUR ROGUE BUILD

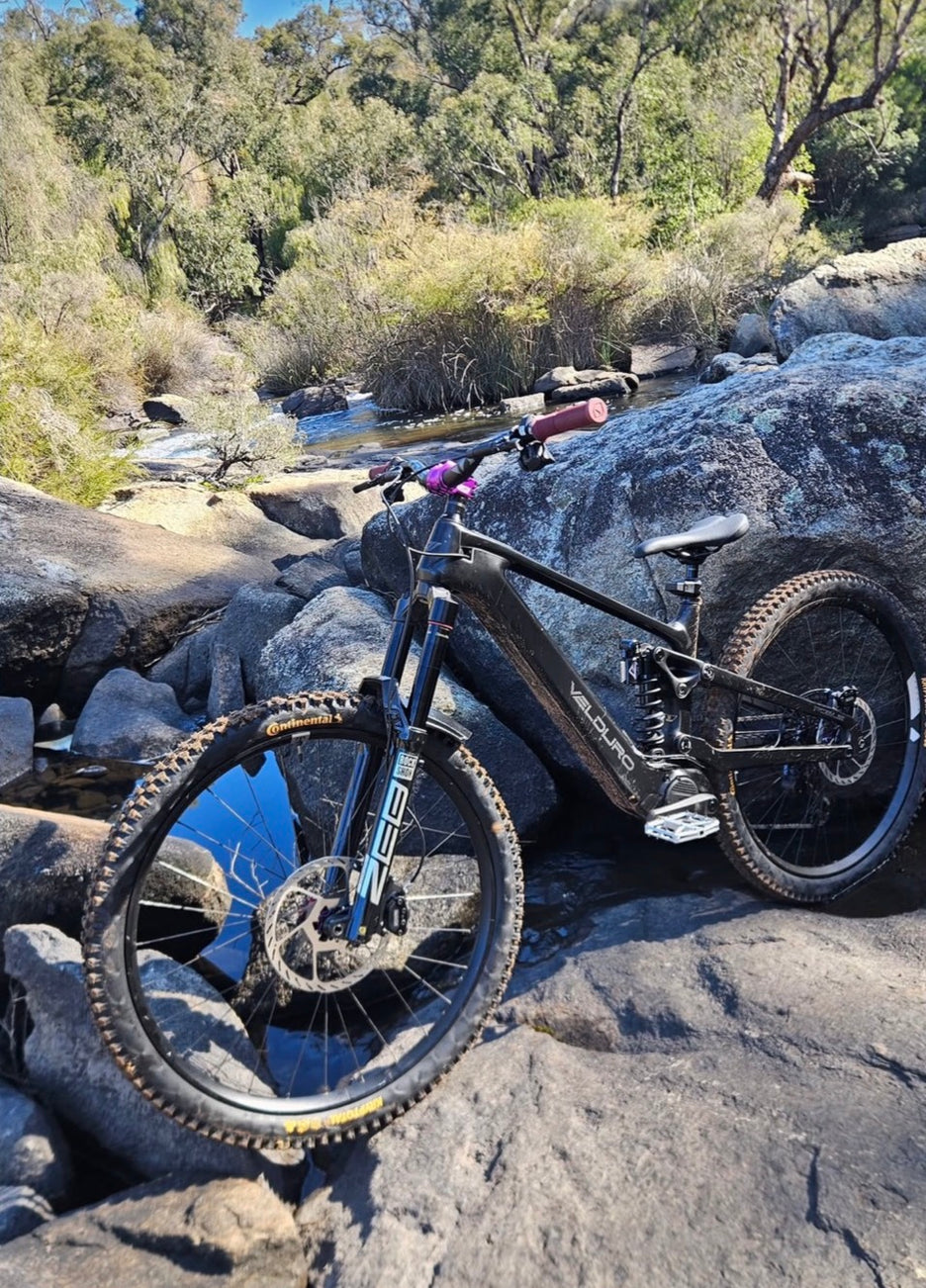

    This was Will's personal Rogue, built from the frameset up and ridden and raced for eight weeks before moving onto his current Forbidden Druid E.

    That time on the bike gave us first-hand experience with the Rogue's handling, suspension setup and component selection — knowledge we can use when helping customers build their own.

    • REAL WORLD TESTED

      Built to be

      RIDDEN

      This Rogue wasn't built as a showroom bike. It was ridden on local trails and raced, giving us first-hand experience with the platform beyond the workshop.

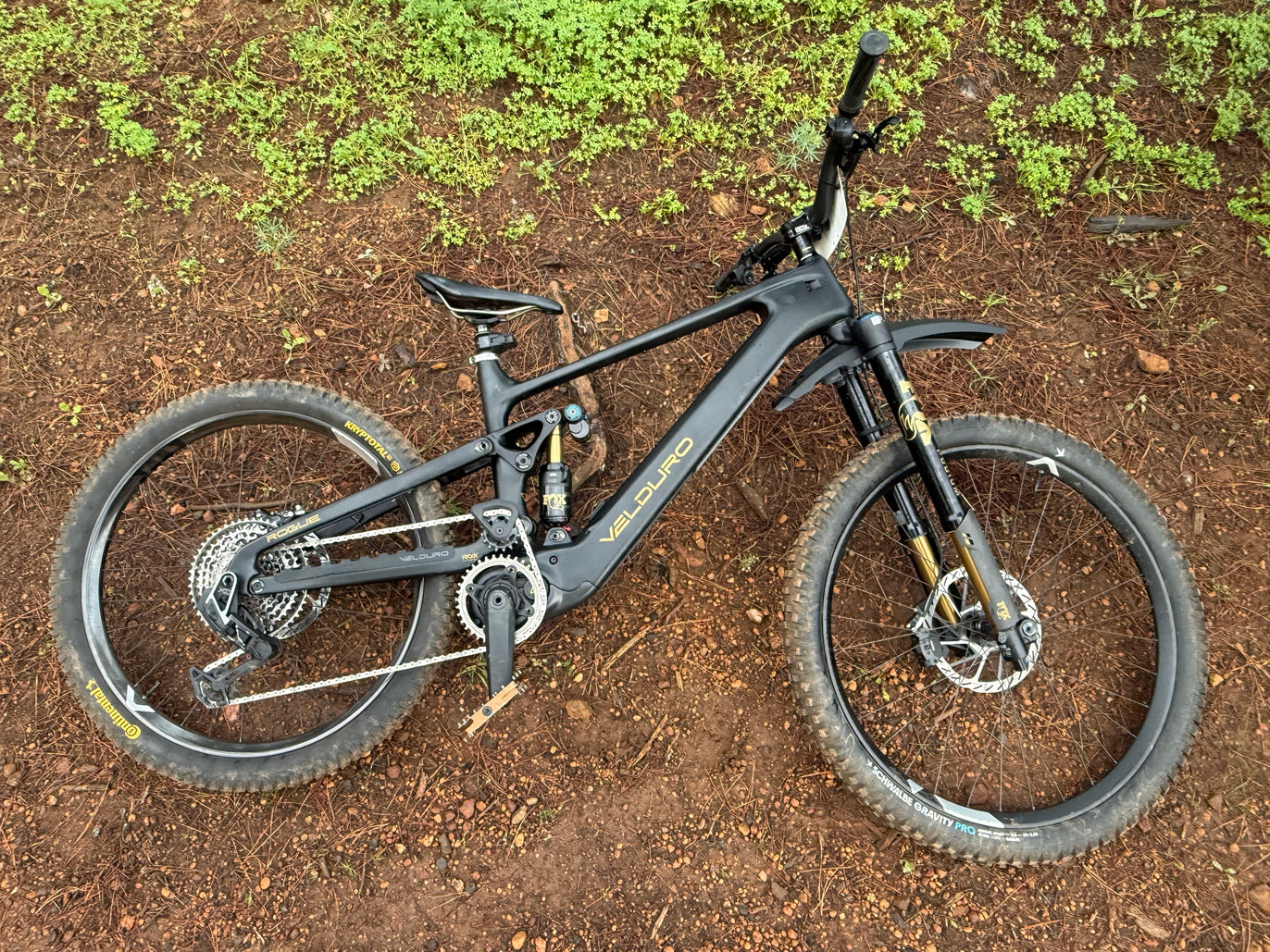

      Velduro Rogue electric mountain bike raced at Wellington Mills State DH

    • OUR BUILD

      Eight weeks of

      RIDING & RACING

      Will rode and raced this Rogue for eight weeks before moving to his Forbidden Druid E, testing different setup and component choices along the way

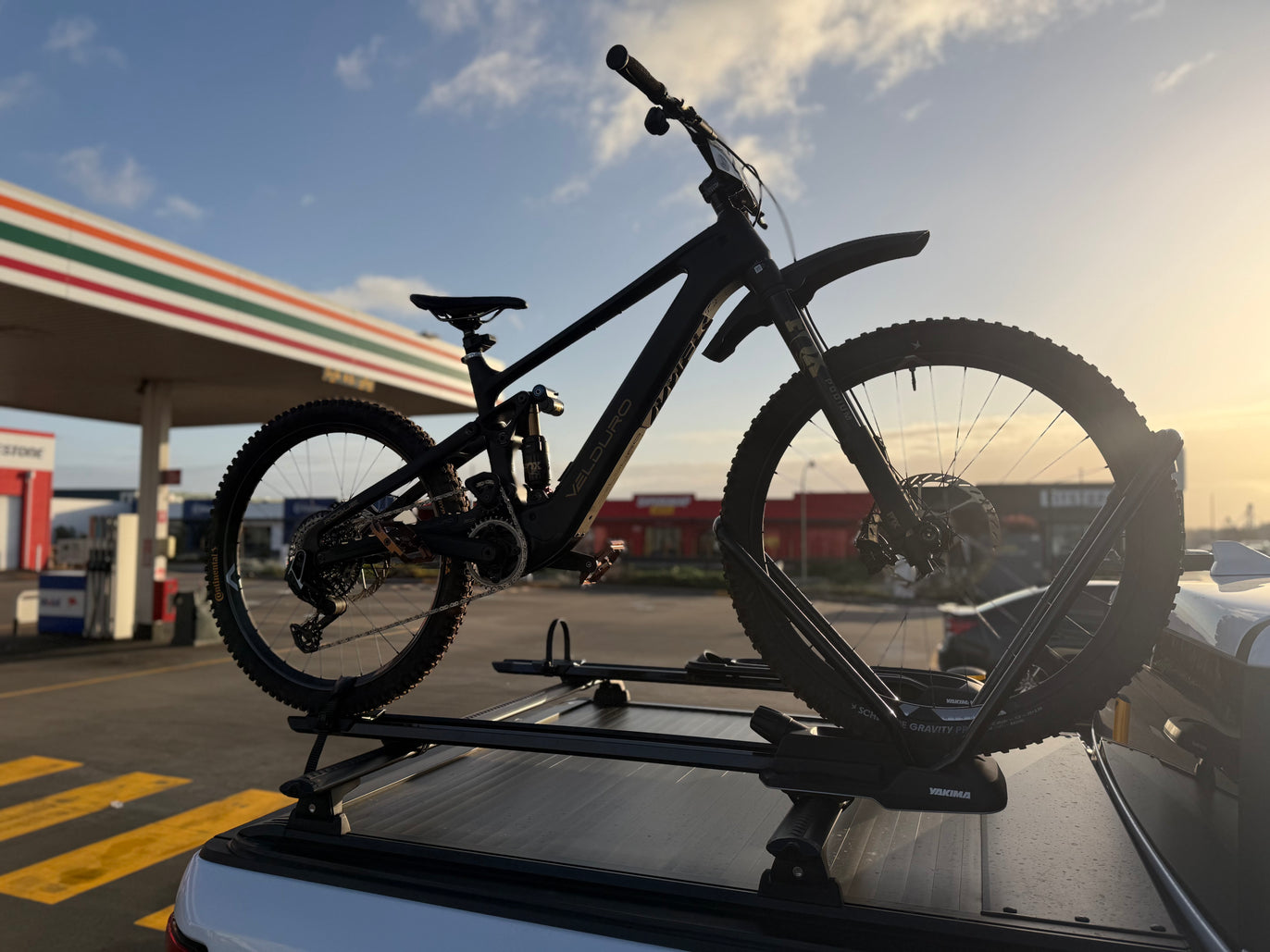

      Velduro Rogue electric mountain bike on Yakima bike rack

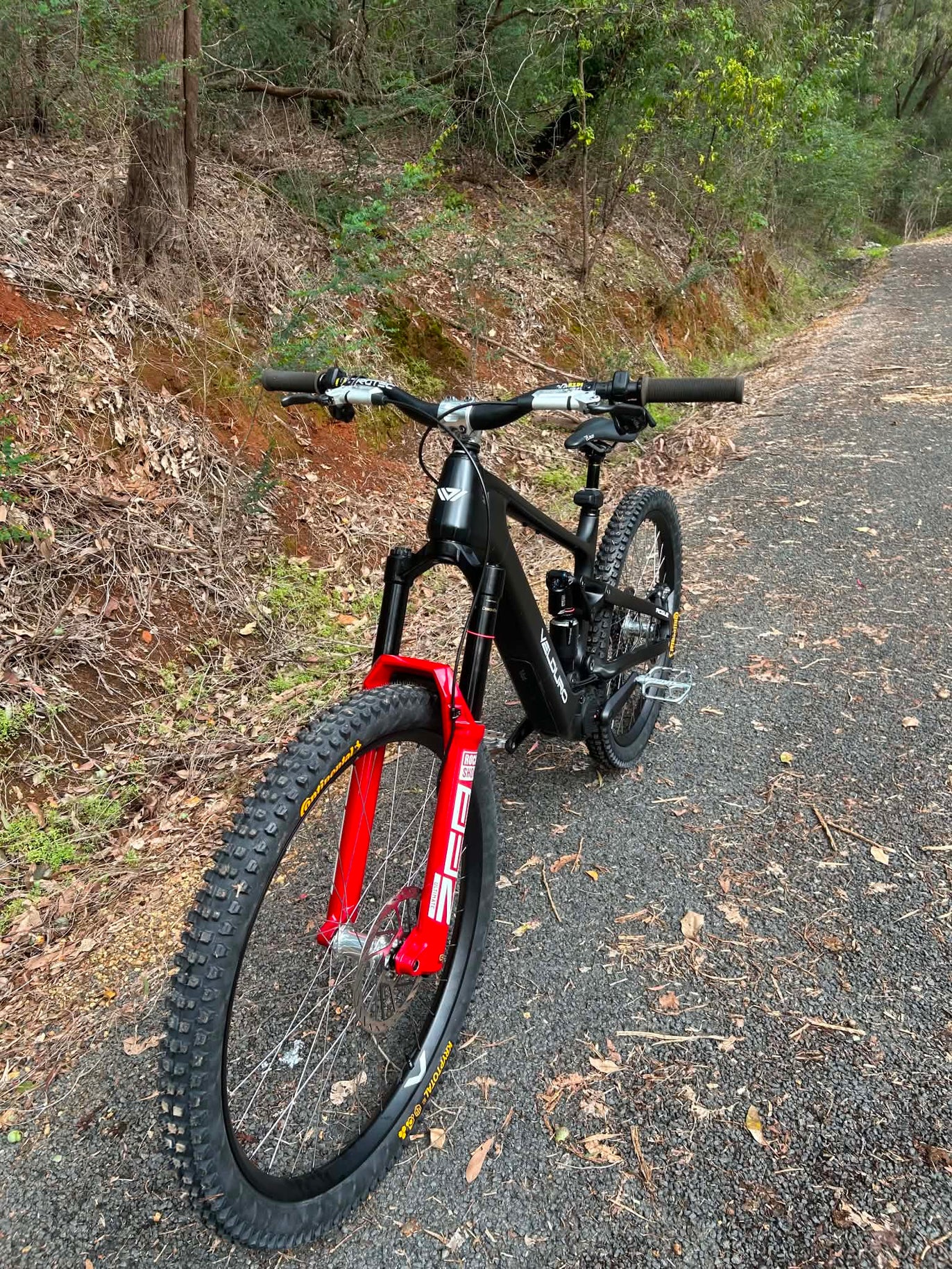

    • CUSTOMER BUILD

      Built around the

      RIDER

      Another custom Rogue built by CB Cycles. Starting with the frameset, we can tailor the suspension, drivetrain, wheels and finishing kit around how and where you ride.

    • CUSTOM BUILDS

      More than a

      FRAMESET

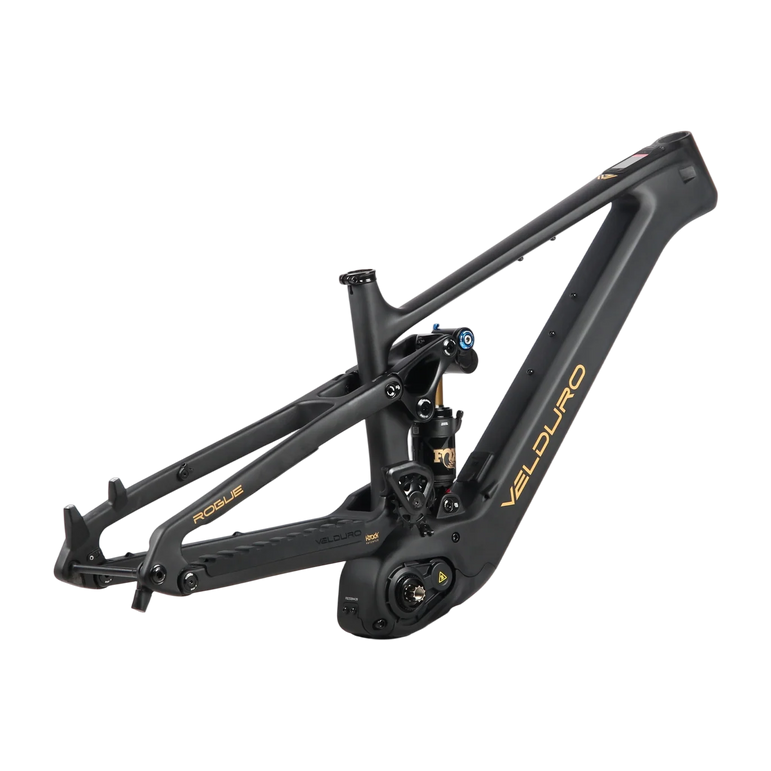

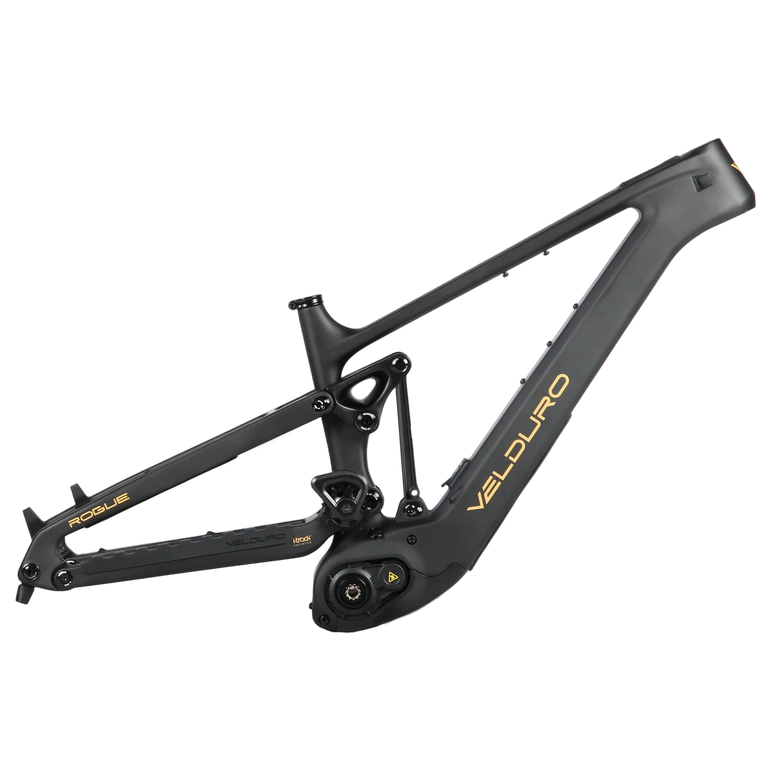

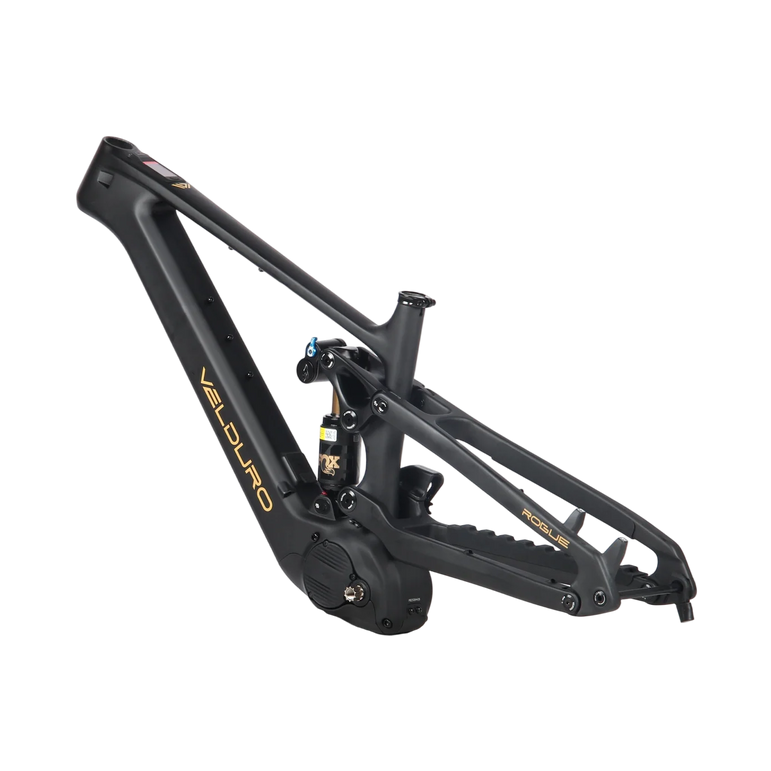

      Start with the Velduro Rogue frameset and build it your way. We can help select the suspension, drivetrain, wheels and finishing kit, or put together a complete custom build around your riding and budget.

    BUILD YOUR ROGUE YOUR WAY

    Start with the Velduro Rogue frameset and build it around the way you ride. We can help with component selection, suspension setup or put together a complete custom build to suit your riding and budget.

    Product Specifications

    Frame
    Carbon-fibre enduro eMTB frame
    Mid-pivot i-Track suspension
    29" or mullet (29"/27.5") configuration
    12 × 148mm rear axle spacing
    Oversize frame bearings

    Headset
    FSA No.57 44/56

    Seatpost
    31.6mm seatpost clamp included

    Wheel configuration
    Compatible with 29" or 27.5" rear wheel using the adjustable flip-chip system.

    Included frame hardware

    • Headset
    • Rear axle
    • SRAM UDH
    • Bottle cage bolts
    • 31.6mm seatpost clamp
    • Cable lugs
    • Trunnion bolts
    • Lower shock bolt

    29" Rear Wheel

    65mm shock stroke + Standard flip chip — 167mm travel
    65mm shock stroke + Pro flip chip — 172mm travel
    62.5mm shock stroke + Standard flip chip — 162mm travel
    62.5mm shock stroke + Pro flip chip — 167mm travel

    27.5" Rear Wheel / Mullet

    65mm shock stroke + Standard flip chip — 165mm travel
    65mm shock stroke + Pro flip chip — 170mm travel
    62.5mm shock stroke + Standard flip chip — 160mm travel
    62.5mm shock stroke + Pro flip chip — 165mm travel

    Shock mounting
    Frames supplied without a shock include the lower shock bolt but do not include shock-specific lower eyelet hardware. Required hardware is 30 × 8mm.

    Frames ordered with the Fox shock include the appropriate lower eyelet mounting hardware.

    Motor
    DJI Avinox M2S
    1300W maximum power
    130Nm torque
    150Nm Boost Mode torque

    Battery
    DJI Avinox 36V 800Wh

    Display
    DJI Avinox 2" integrated display

    Controllers
    Left and right wireless controllers

    Charger
    DJI Avinox 4A 168W charger

    Speed sensor
    Rear wheel speed sensor cable and sensor ring included.

    Cranks
    DJI Avinox ISIS 155mm cranks included

    Chainring
    Velduro steel 34T, 104 BCD chainring

    Includes:

    • Chainring spider
    • Lockring
    • Lockring installation tool

    The supplied chainring is compatible with SRAM Flattop, SRAM 12-speed, Shimano 12-speed and Shimano Linkglide drivetrains.

    SRAM AXS setup reference
    Position A
    21T cassette cog
    124-link chain

    AXS power cable
    Not included. An AXS power cable is a drivetrain-specific component and is required separately if powering an AXS derailleur from the bike.

    WANT TO BUILD A ROGUE? TALK TO US

    Get in touch with CB Cycles and we'll help you work out the right Rogue setup for your riding and budget.
