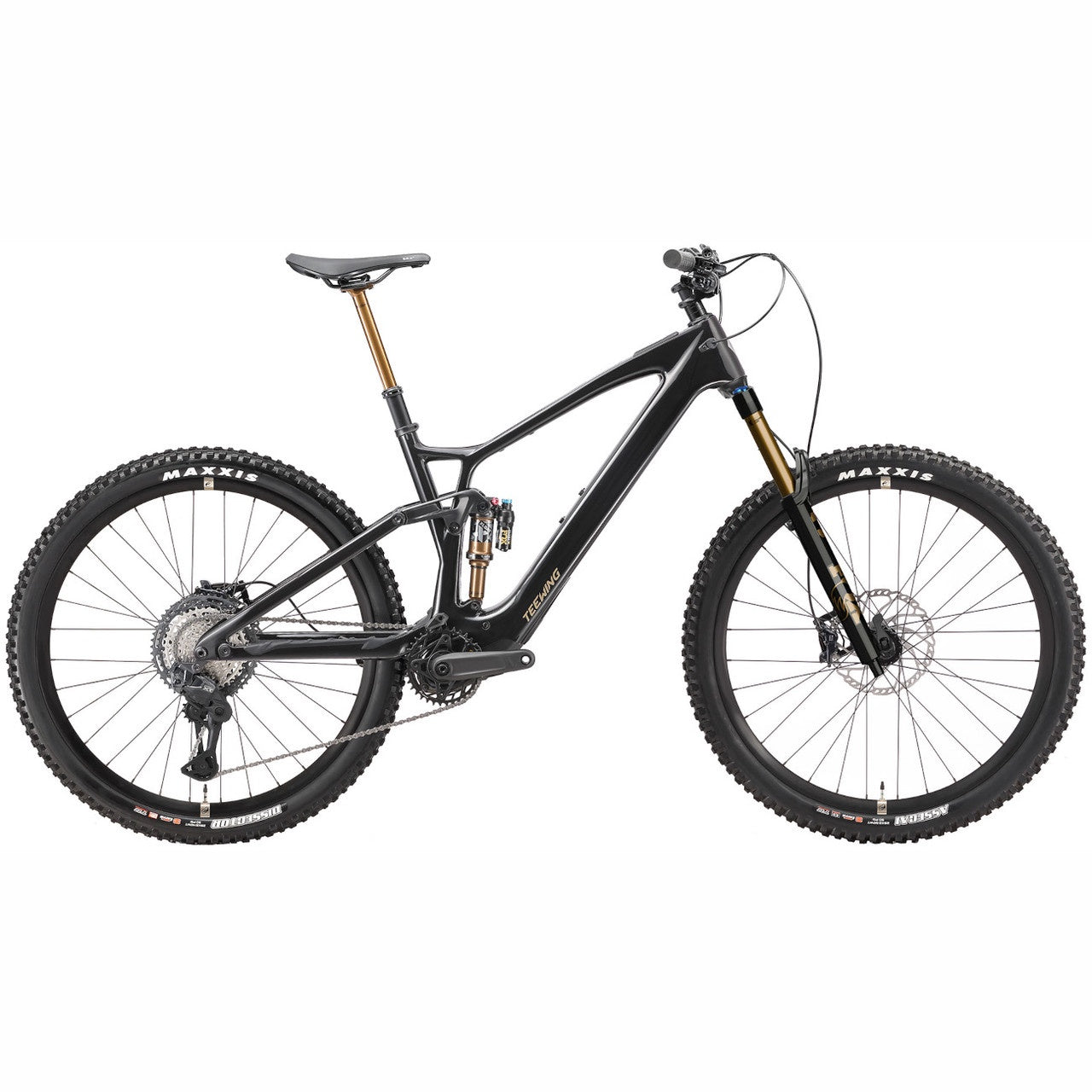

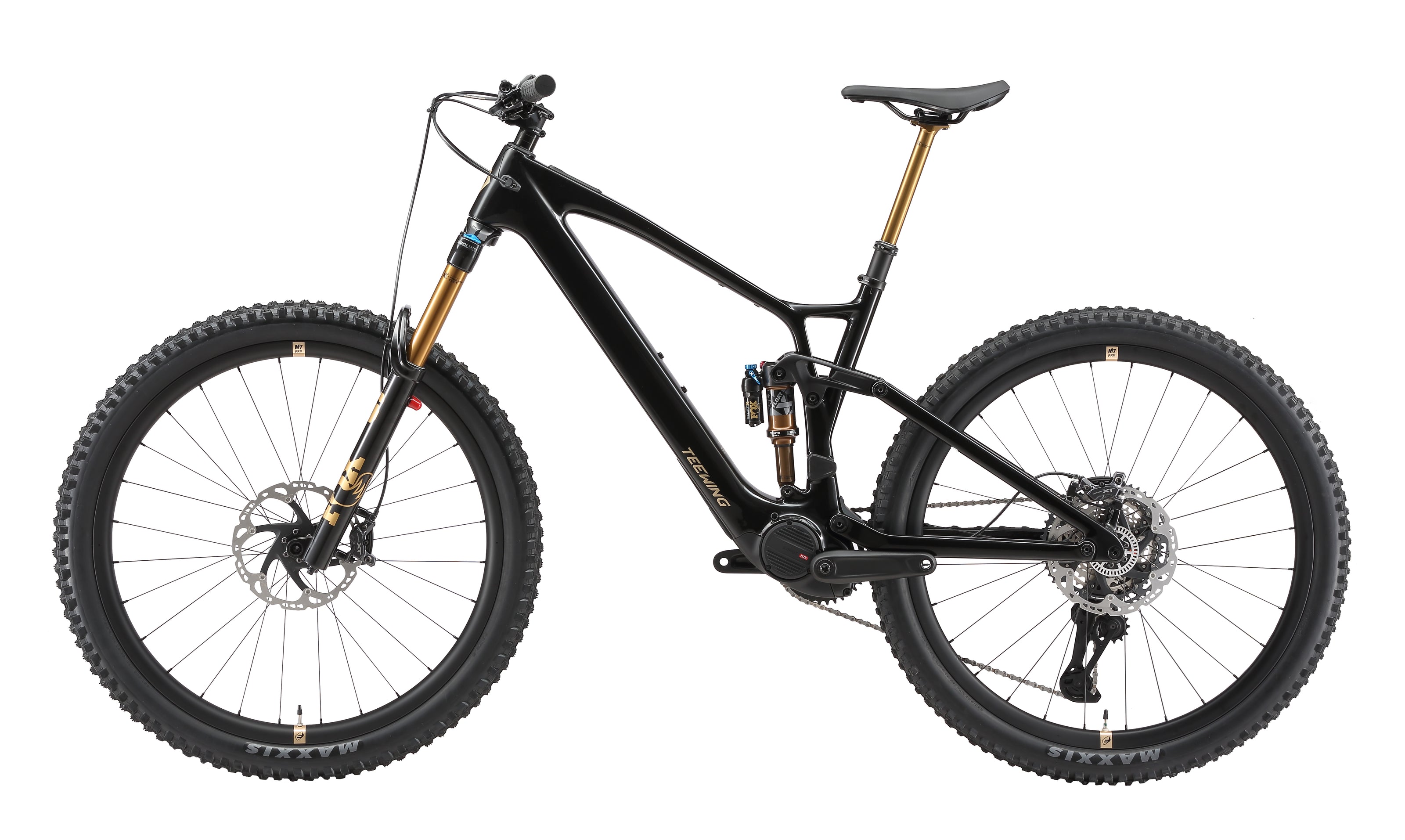

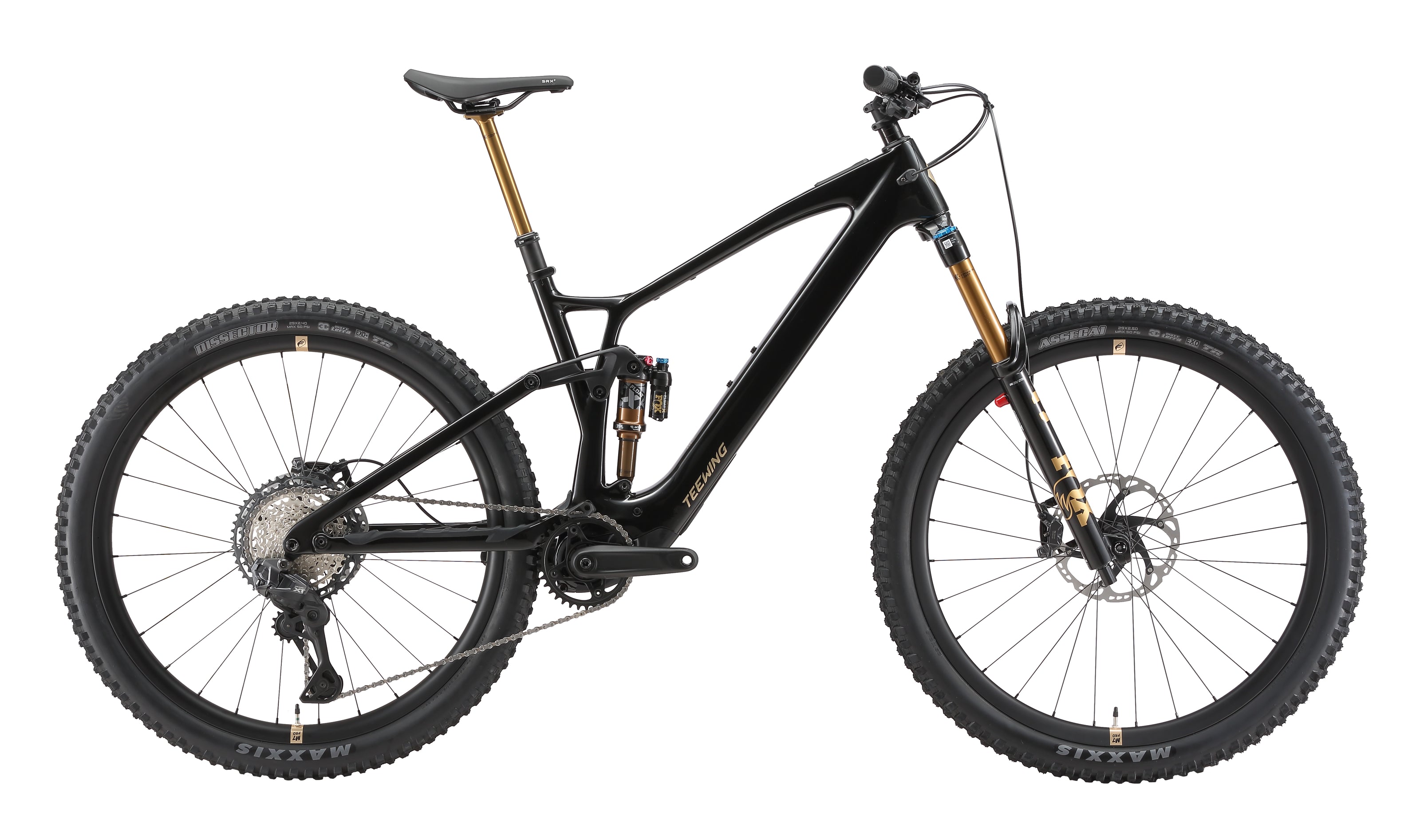

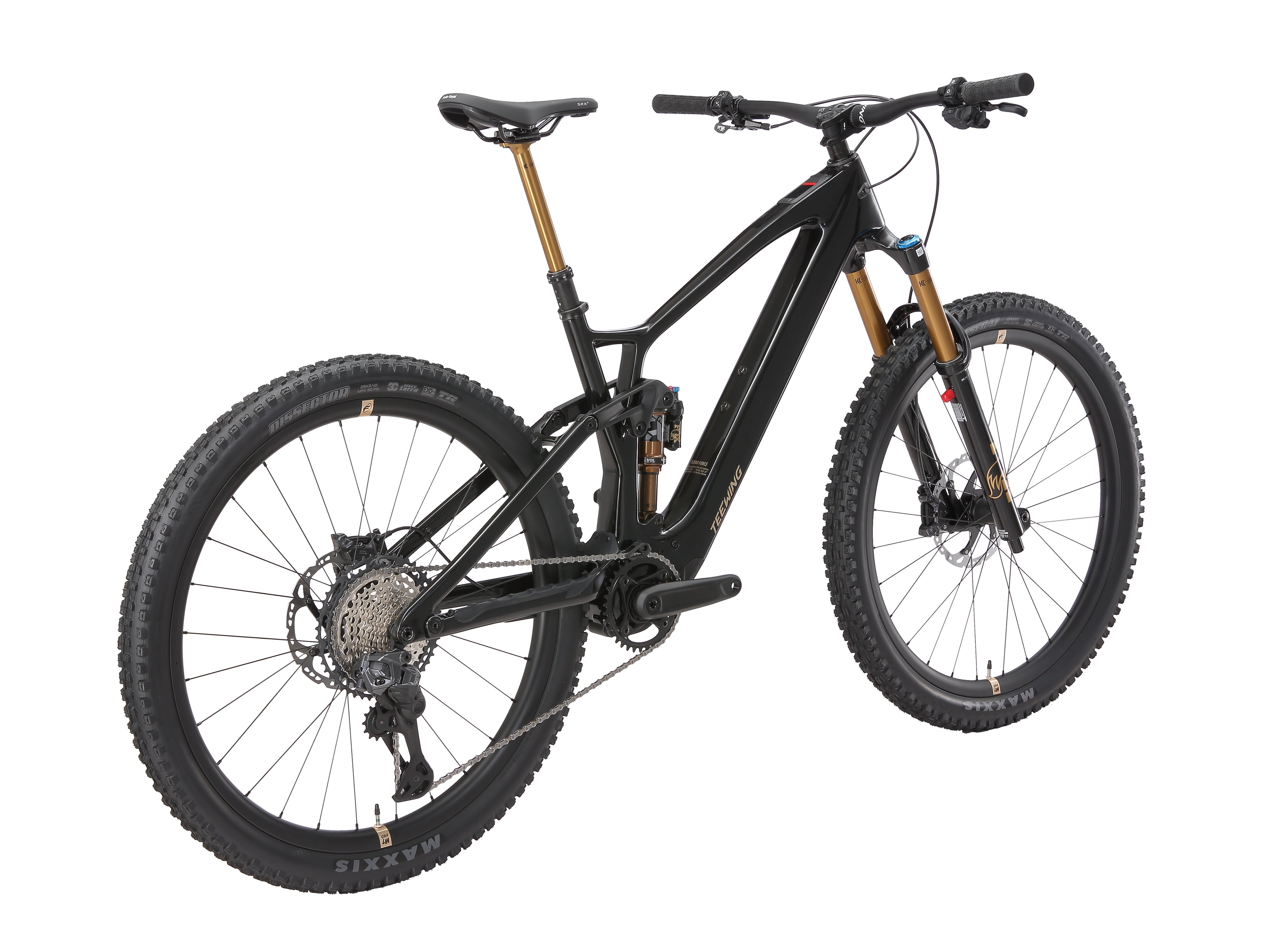

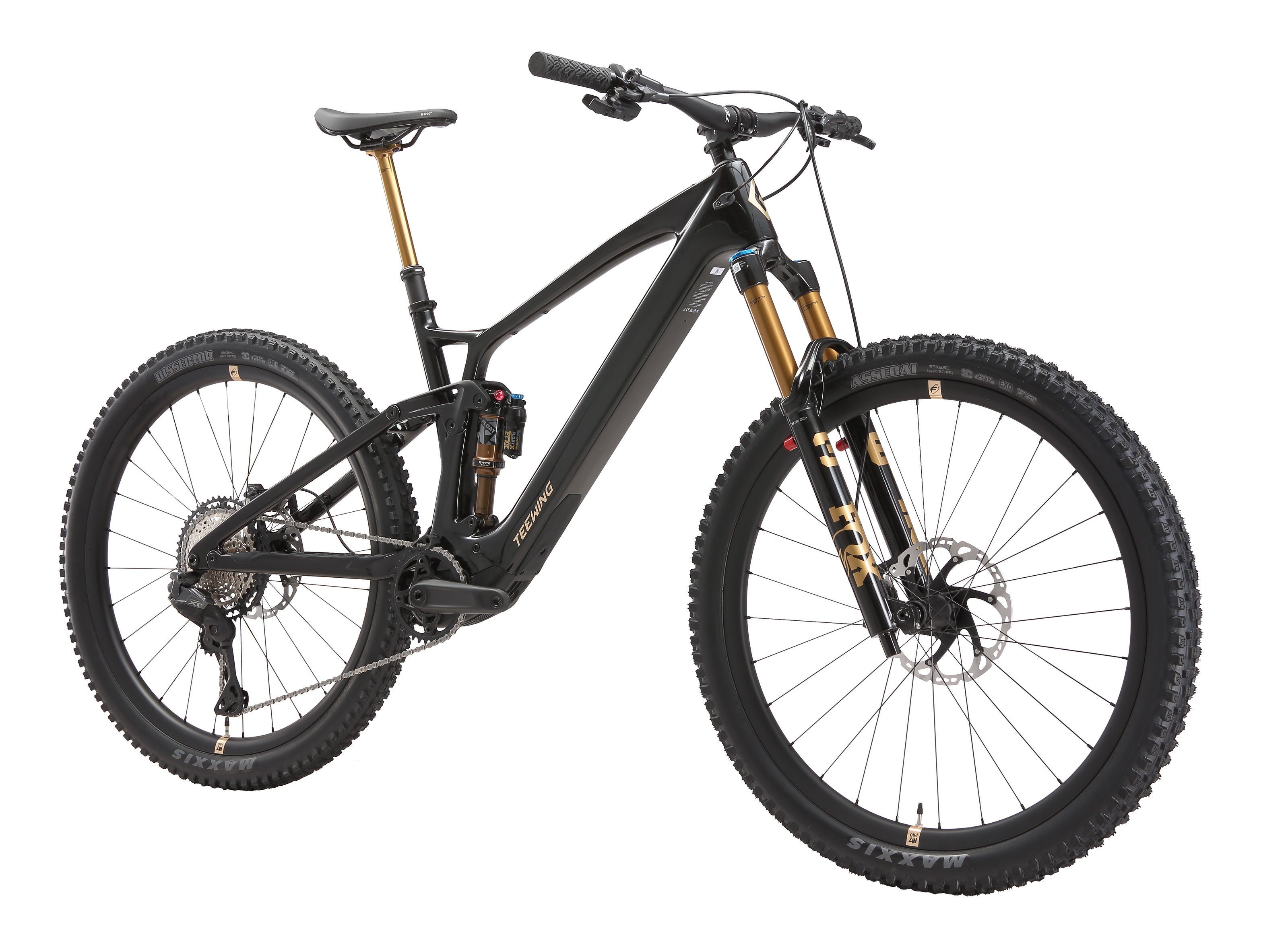

Teewing Turbo Force Pro

Ride Everything And Anything.

Carve through technical lines with this carbon-framed beast that’s as stiff as it is light. Offering a high-energy, responsive feel with the precise shifting feel of Shimano XT Di2. Backed by the heavy-hitting new 2027 FOX 36 Float and Float X suspension, it’s designed to turn chaotic trails into your personal playground.

Whether you're climbing or descending, the Turbo Force PRO delivers unmatched performance on any trail.

Features

• Enhanced Frame Stiffness: The Teewing Turbo Force Pro carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

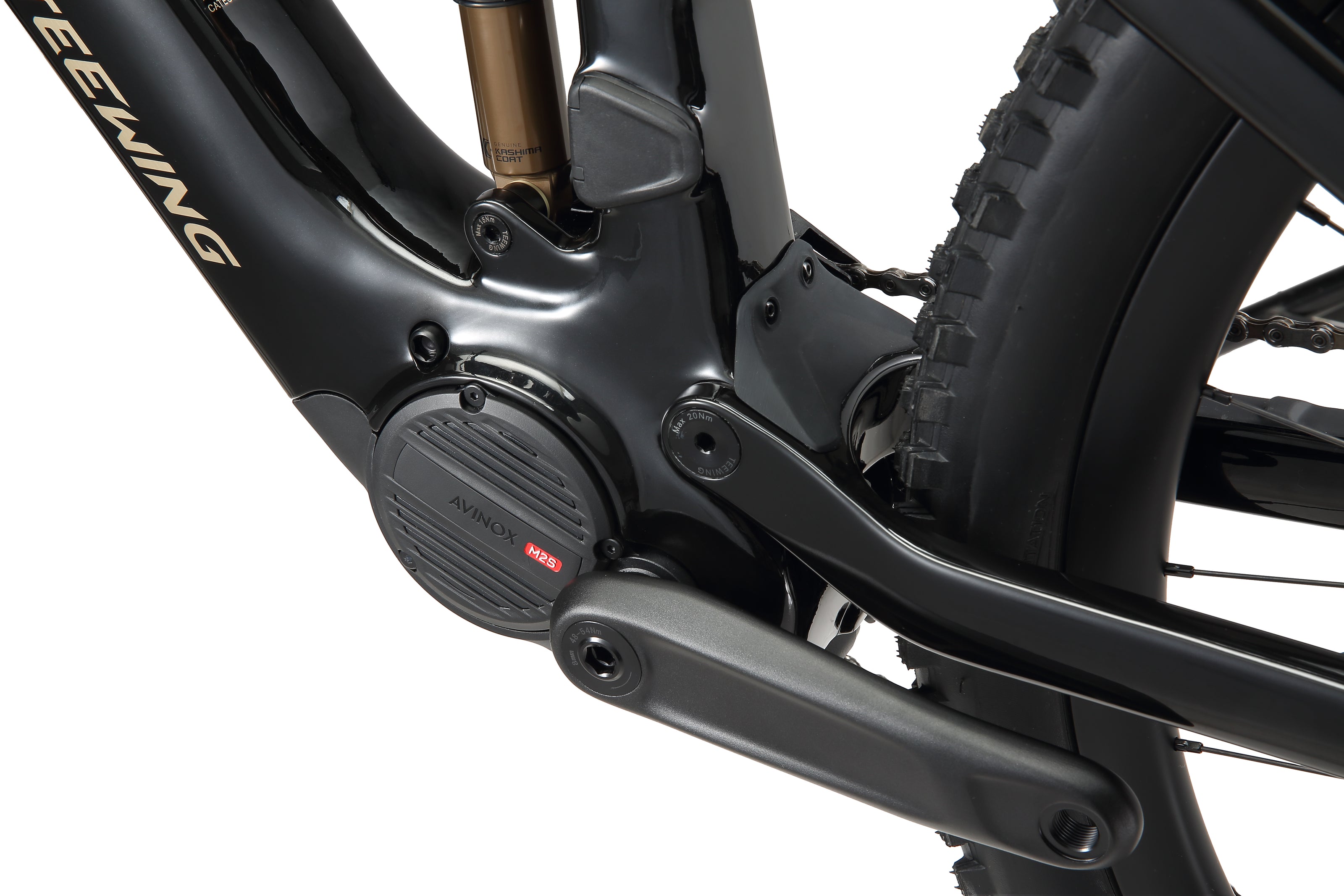

• Avinox Motor: equipped with the latest Avinox Drive Unit. The Avinox Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customise their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.
• Lightweight, High-Capacity Battery: The Teewing Turbo Force Pro E-MTB is equipped with Avonix's 600Wh (Small), 800Wh (Medium, Large, Extra Large), weighing approximately 3.74 kg (800Wh). This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.
• Smart Touchscreen Control: A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.
• 12A Fast Charging: Utilizing GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.
• Optimised Frame Geometry: The Teewing Turbo Force Pro e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

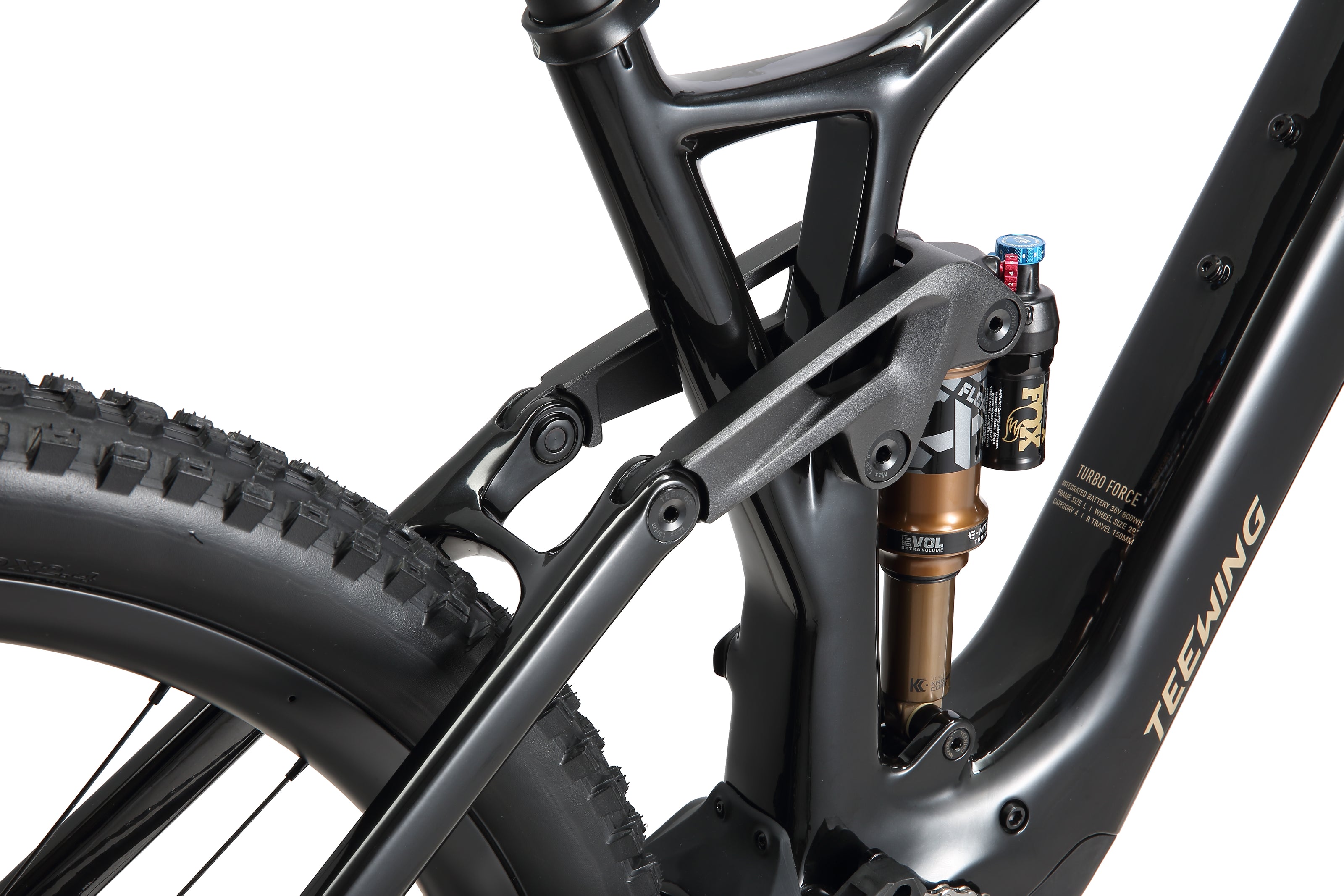

• Advanced Four-Bar Linkage: The advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.

Specifications

• Frame
  • Teewing Turbo Force Carbon Frame
  • Cosmic Black
  • 29"
  • 150mm rear travel
• E-Bike System
  • Avinox Drive Unit
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 600Wh (Small), 800Wh (Medium, Large, Extra Large)
  • Avinox Wireless Controllers
  • Avinox Charger: 12A/508W
• Rear Shock
  • 2027 FOX Float X
  • Kashima
  • LV EVOL
  • Trunnion
  • 185x55mm

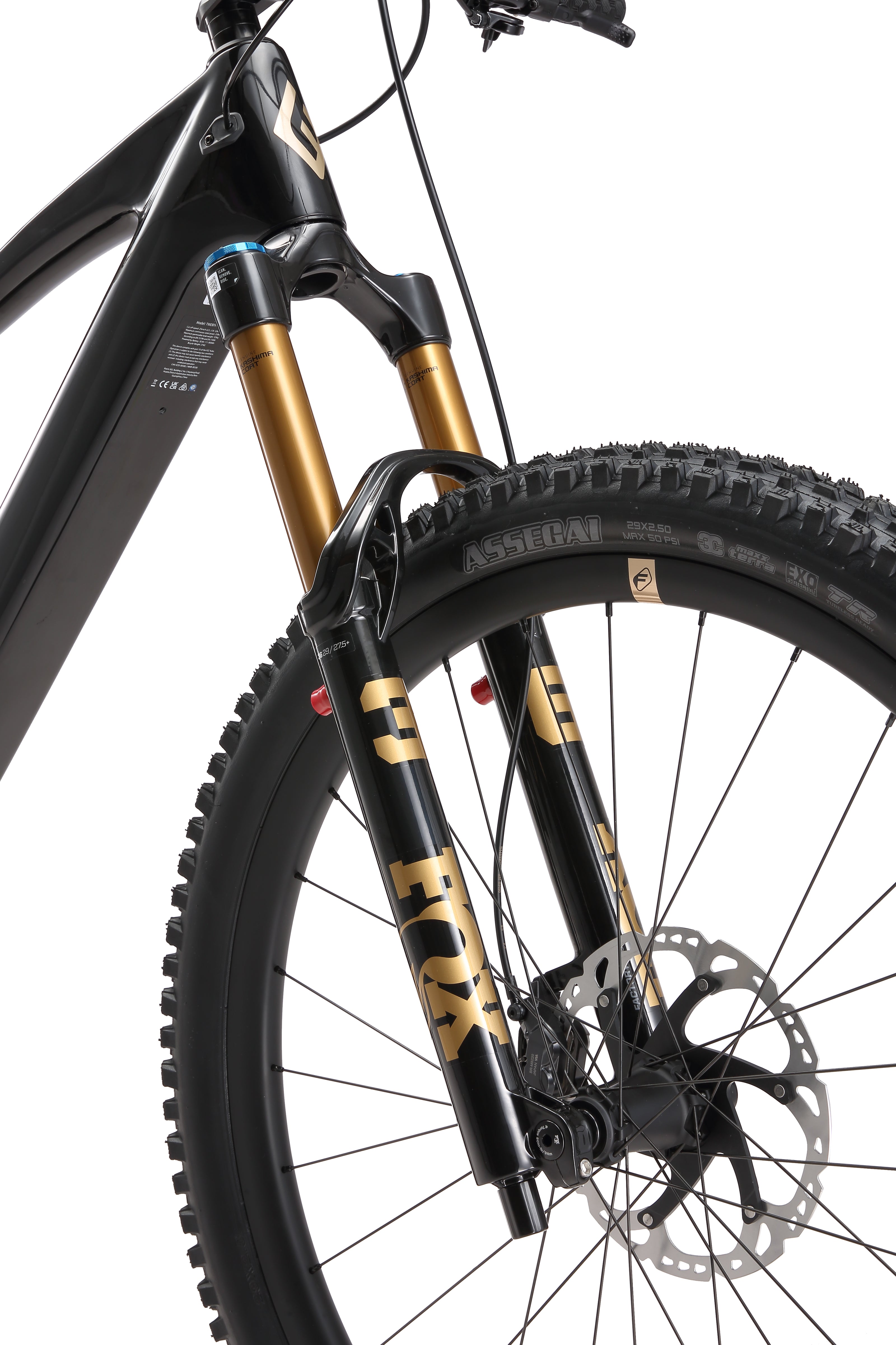

• Fork
  • 2027 FOX 36 Float Factory
  • 29”
  • Kashima
  • 160mm Travel
  • Next Generation Grip X2
  • HSC, LSC, HSR, LSR
  • 44mm Rake
  • Shiny Black

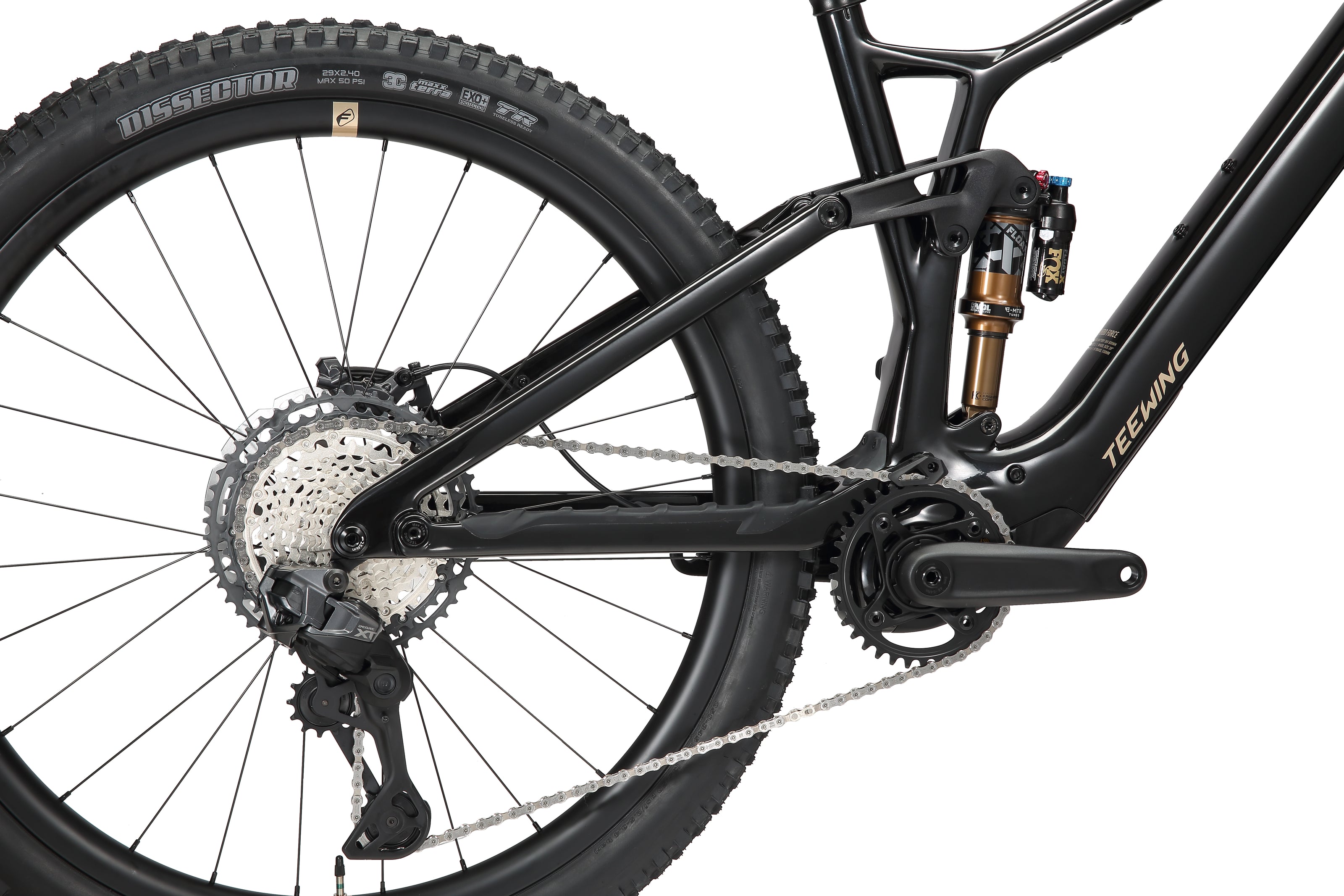

• Transmission

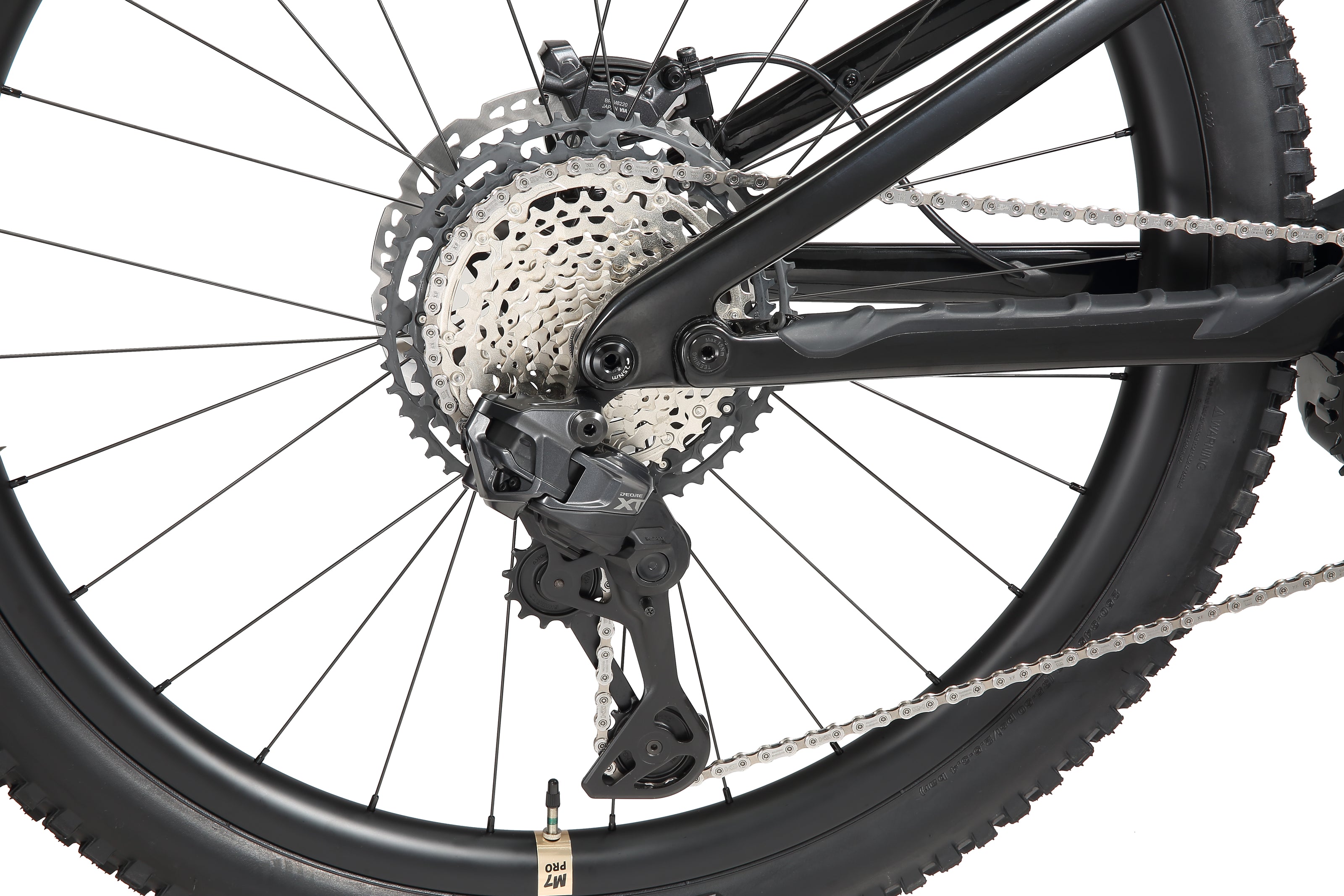

  • Rear Derailleur:Shimano XT RD-M8250 SGS Di2 12spd
  • Chainring: Shimano SM-CRE70-12-B 36T
  • Shift Levers: Shimano XT SW-M6250 Di2 12spd
  • Cassette: Shimano XT M8200, 10-51T 12spd
  • Chain: Shimano SLX CN-M7100 12spd
  • Crankset: Teewing SL Crank 155mm
• Brakes

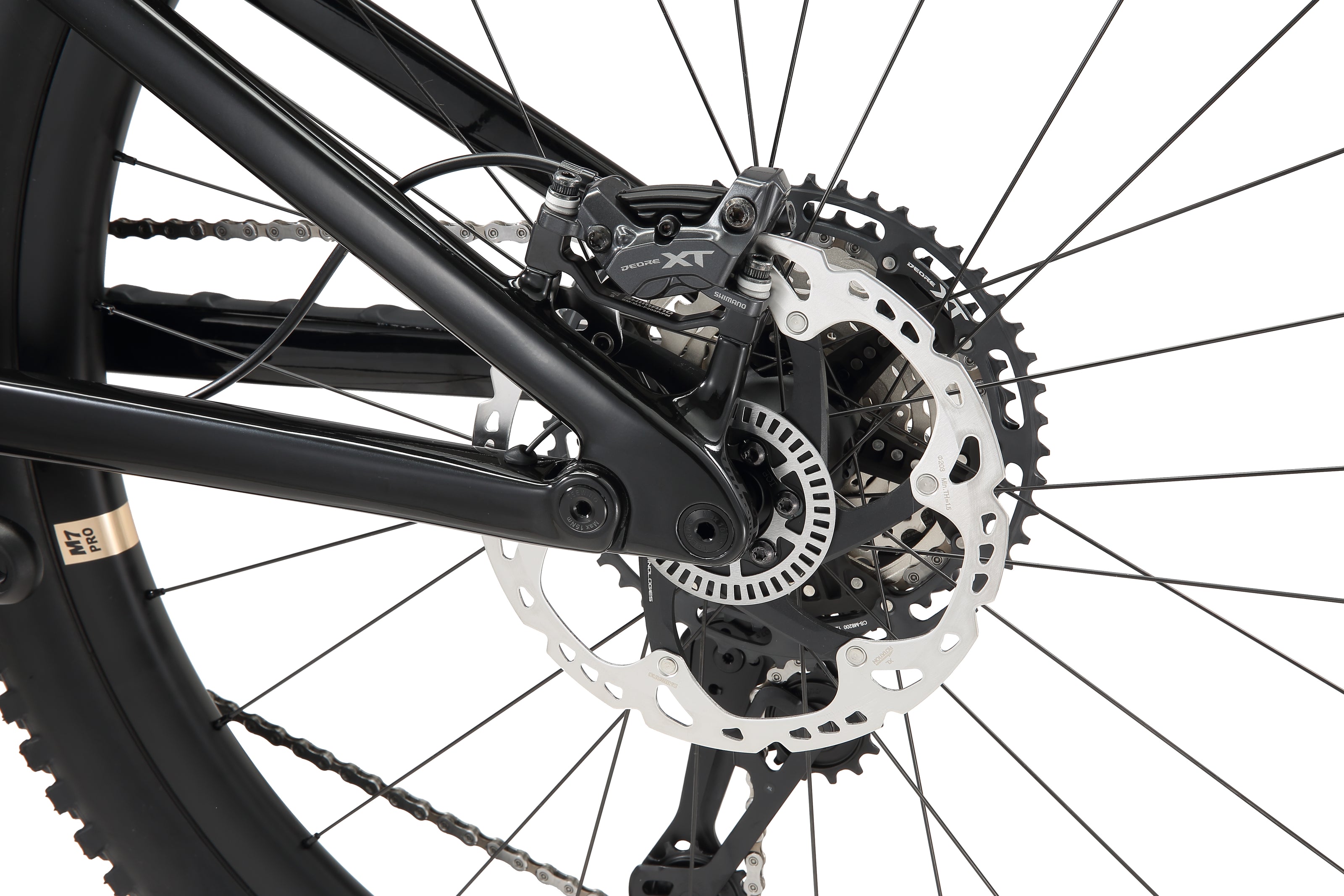

  • Shimano XT BR-M8220
  • Shimano RT86-203mm
• Wheels
  • Formula -M7 PRO Hybrid
  • Rim: Carbon, Tubeless Ready 29"
  • Spokes: SAPIM E-Light
  • Hubs: 6-Bolt Alloy, Sealed Bearings, 15x110mm, 12x148mm
• Tyres
  • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
  • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR

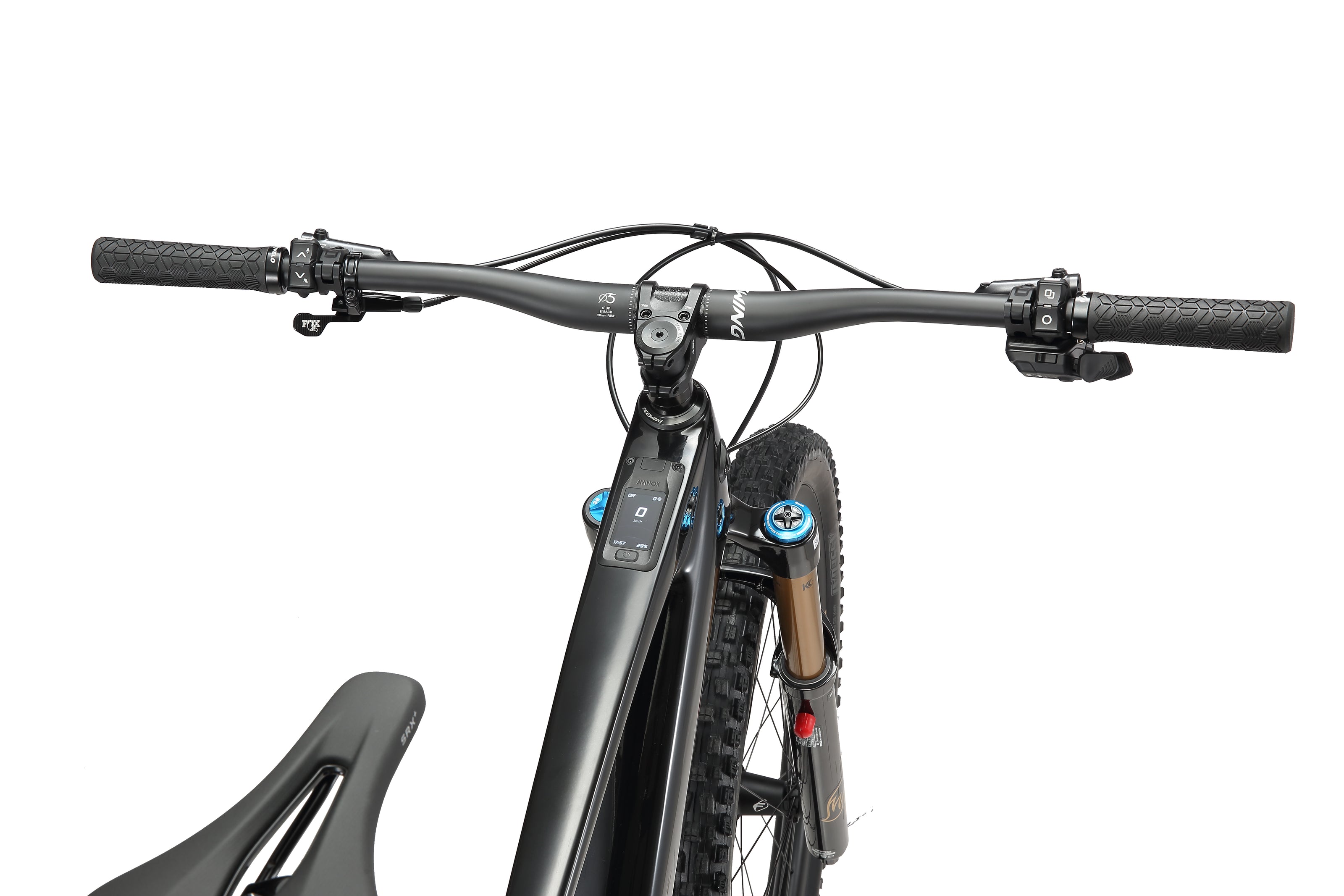

• Handlebar

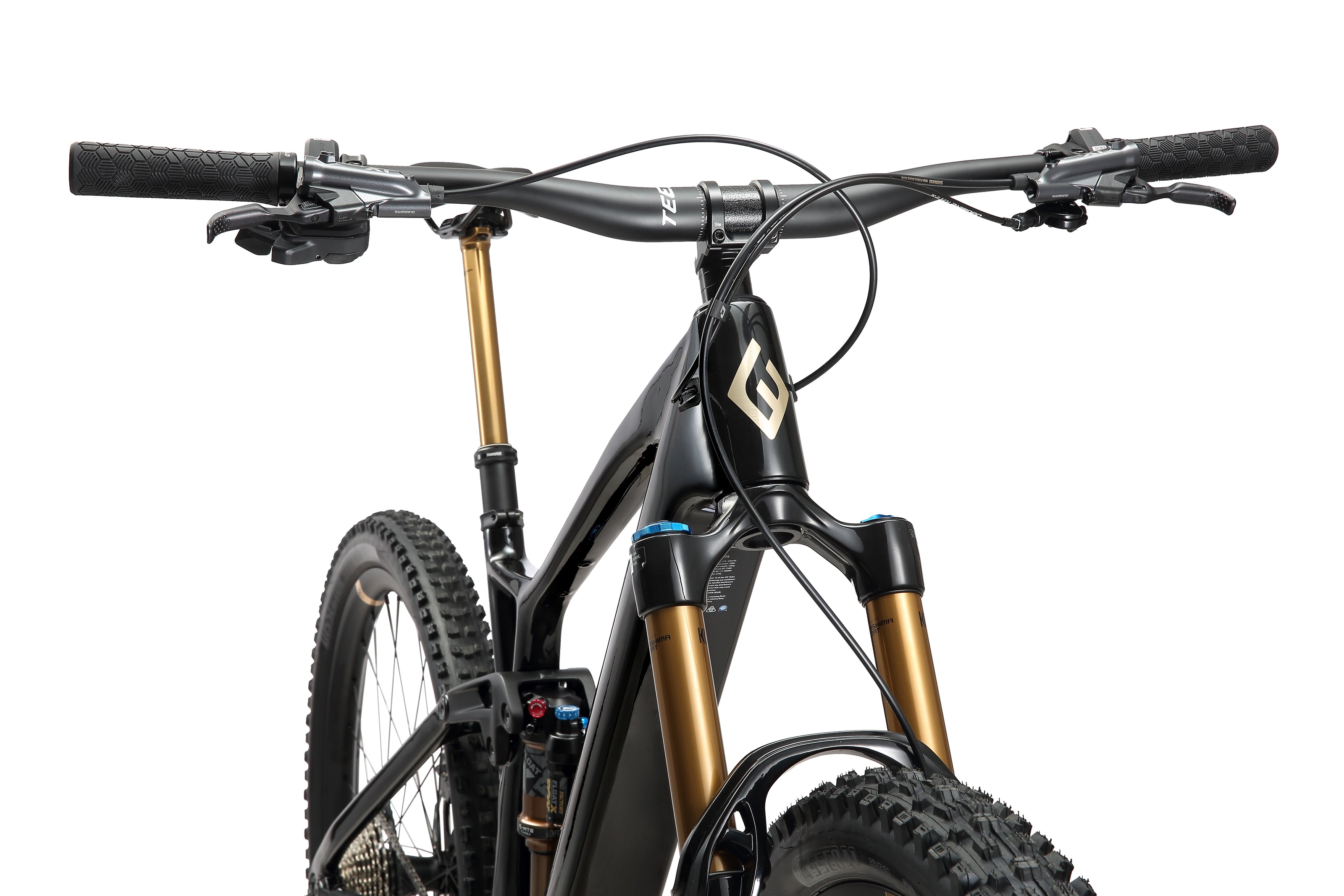

  • Teewing Enduro Carbon Handlebar
  • 40mm rise
  • 800mm wide
  • 5° upsweep
  • 8° backsweep
  • Black
• Grips
  • VELO Enduro Grips
• Stem
  • Teewing Enduro Alloy 7075 CNC
  • Length: 40mm
  • Clamp: 35mm
  • Black
• Saddle

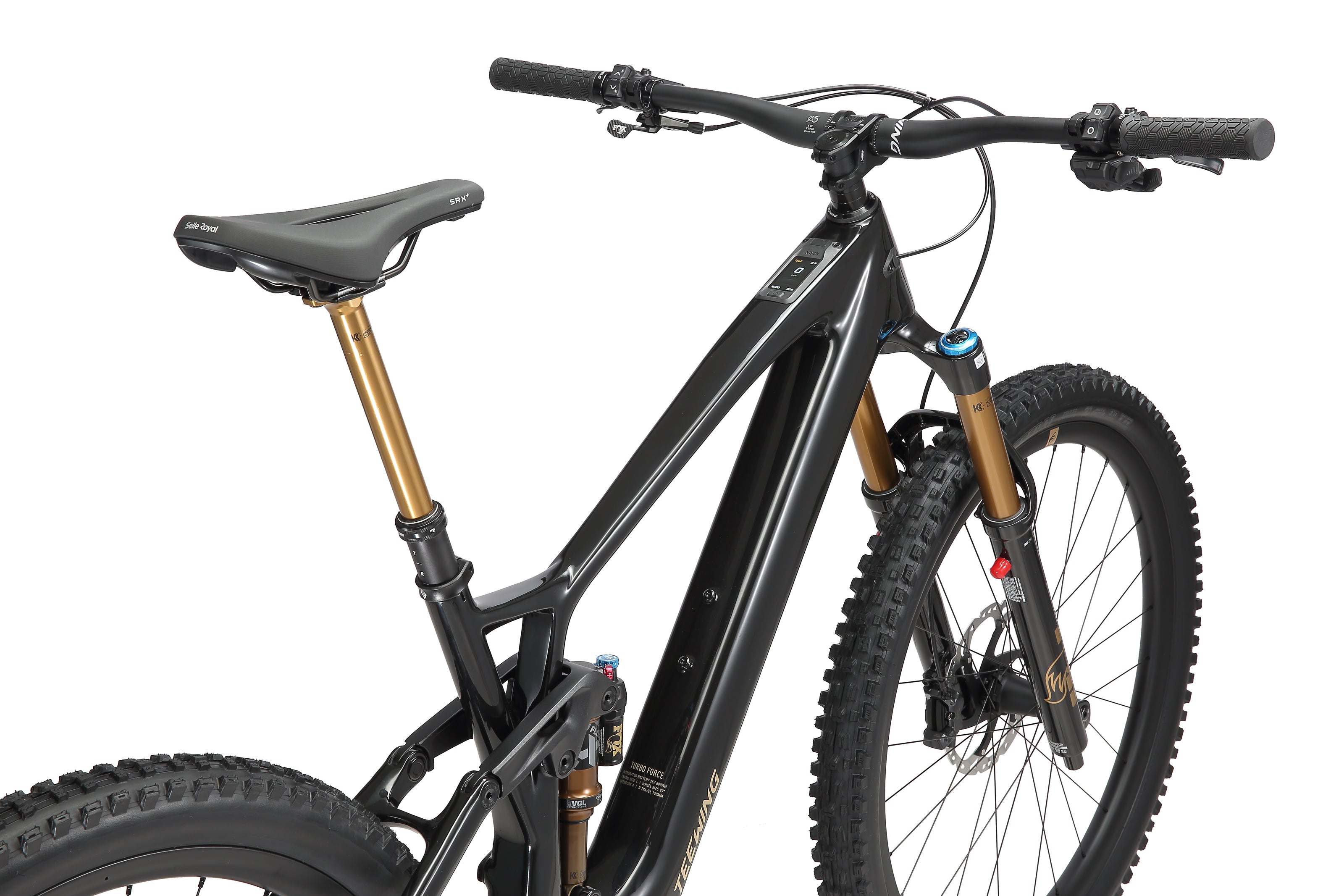

  • Selle Royal SRX Plus
• Seatpost
  • Fox Transfer Dropper Kashima 31.6mm
  • M: 150mm
  • L: 180mm
  • XL: 210mm
• Accessories
  • User Manual
  • Torque Wrench (3~25 Nm, Hex 2/3/4/5/6mm, Torx® 25)
  • Shock Pump
• Weight
  • 21kgs*
