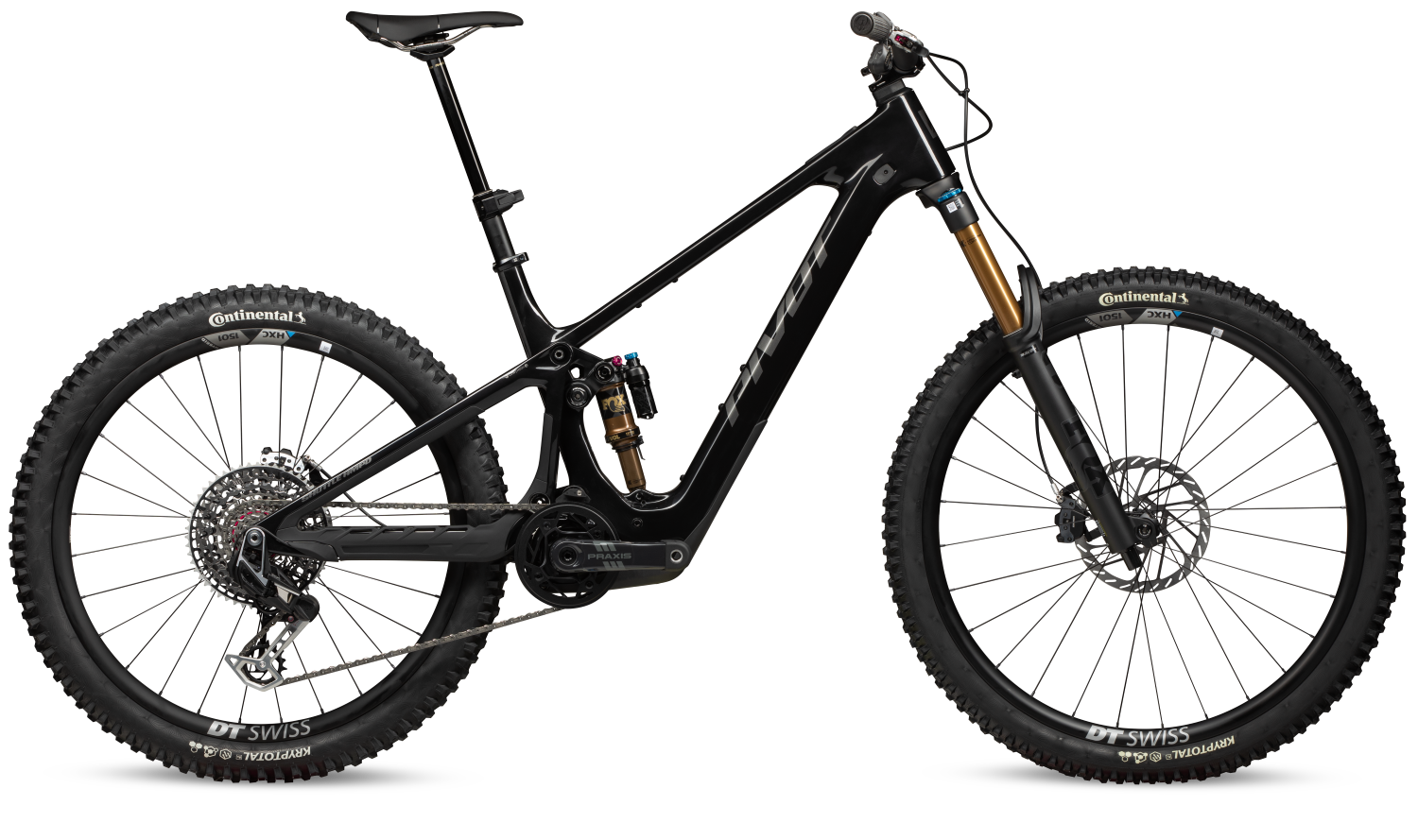

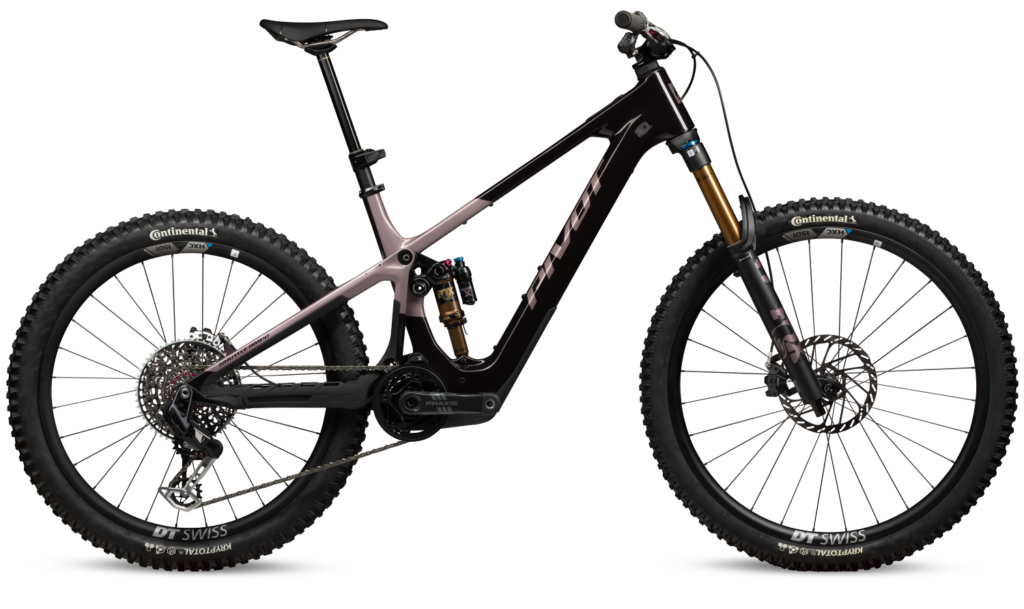

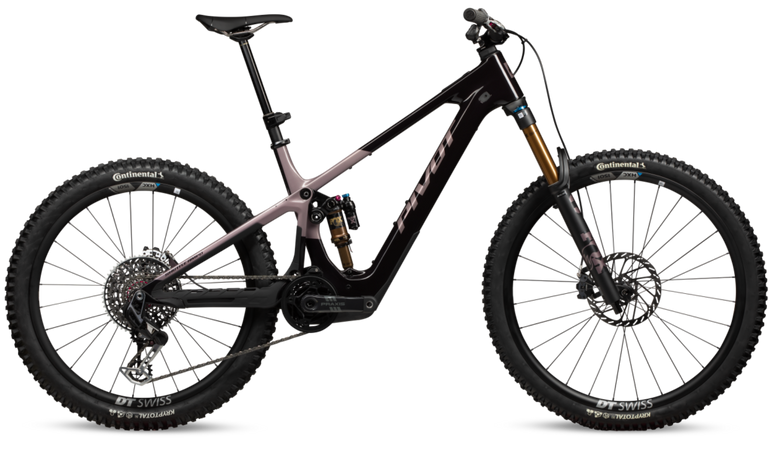

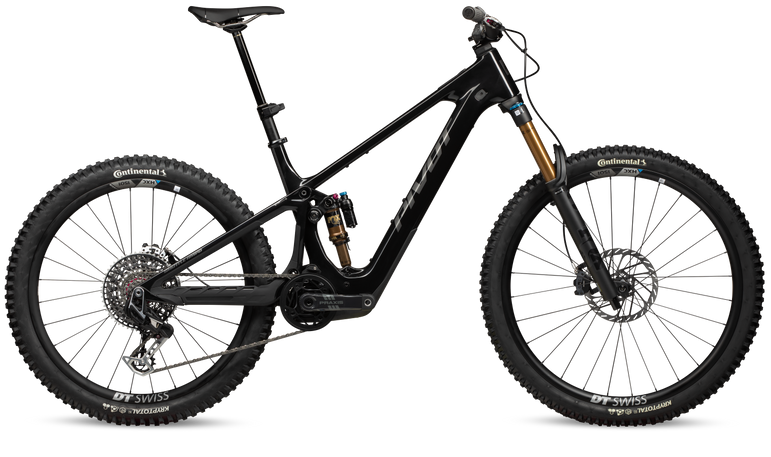

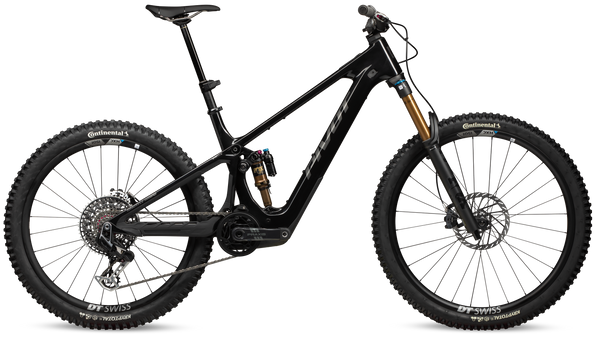

Shuttle AMP'D Team XX

Pivot Cycles introduces the all-new Shuttle AMP’d – a bike that brings a full-volume assault to the mountain. Built to shred with sharp reactions, lively handling and a ride that stays settled even when the trail is not. The Shuttle AMP’d stays planted and aggressive through it all.

• Ultra light Hollow Core carbon frame
• Avinox M2S drive unit and long-range 800Wh battery across all build levels
• Available in XS to XL frame sizes

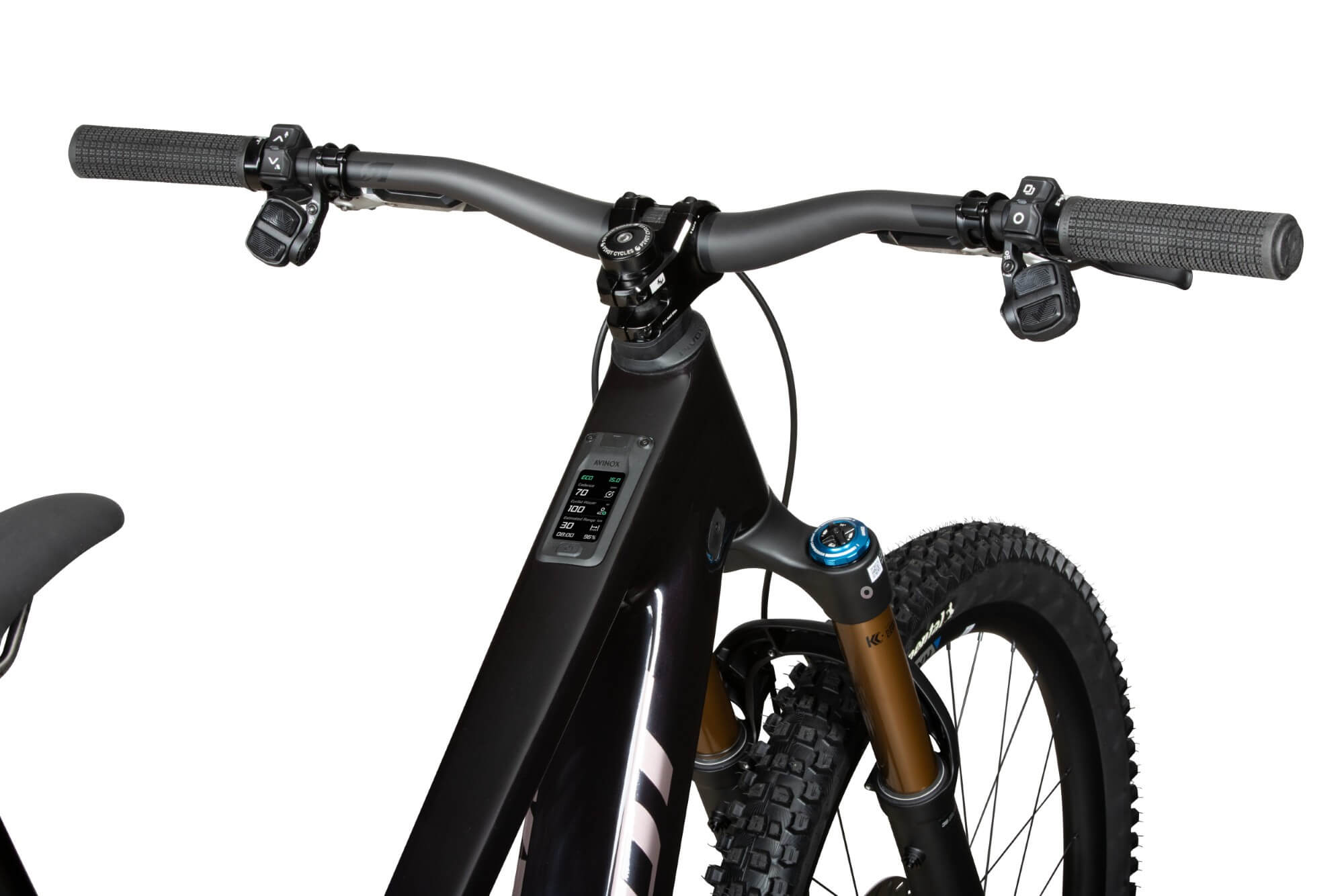

• Full-color, OLED touchscreen display
• Wireless Avinox remotes
• 160mm travel fork
• 150mm of progressive rear suspension travel
• Mixed-wheel setup

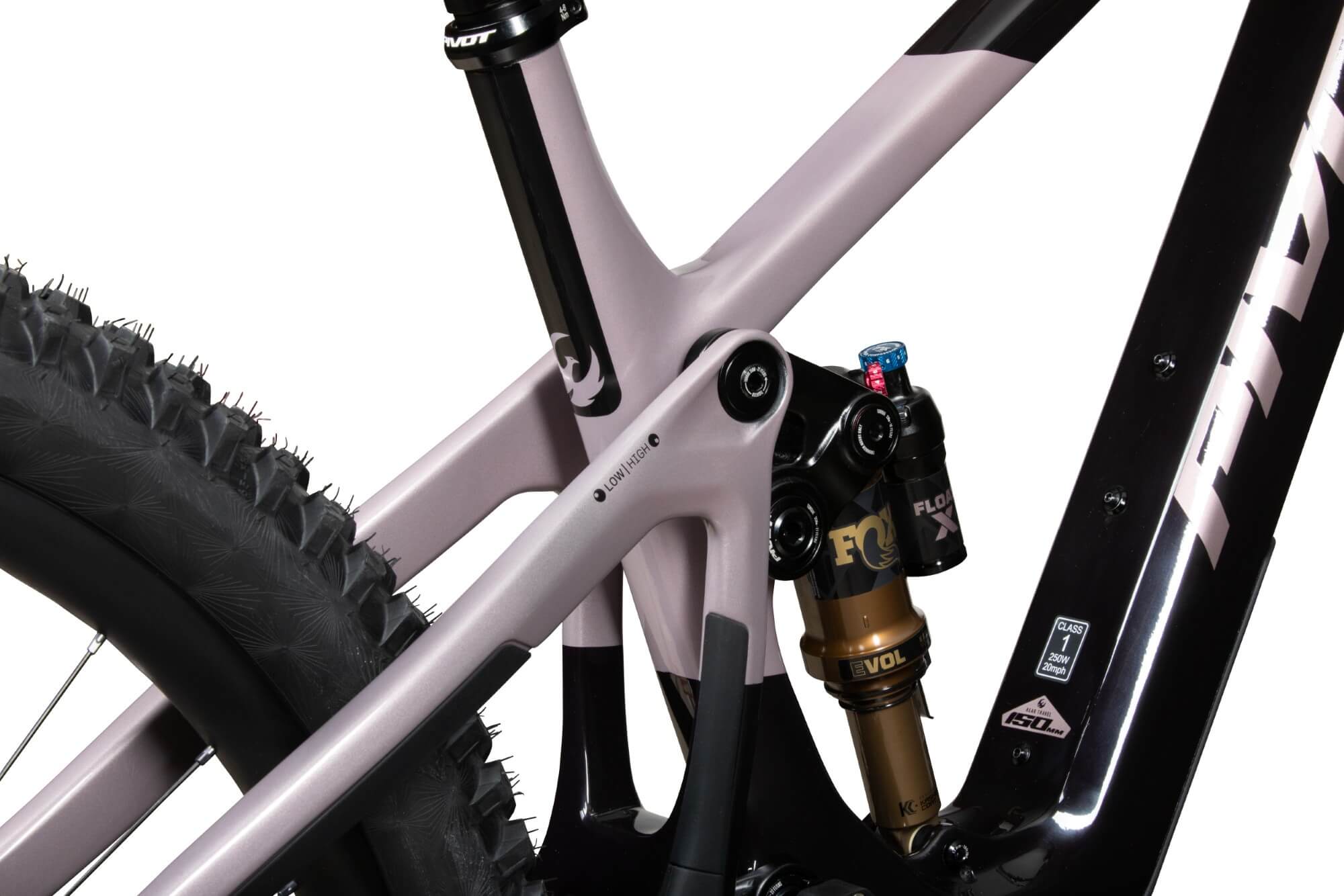

• Geo flip chip via upper link mount

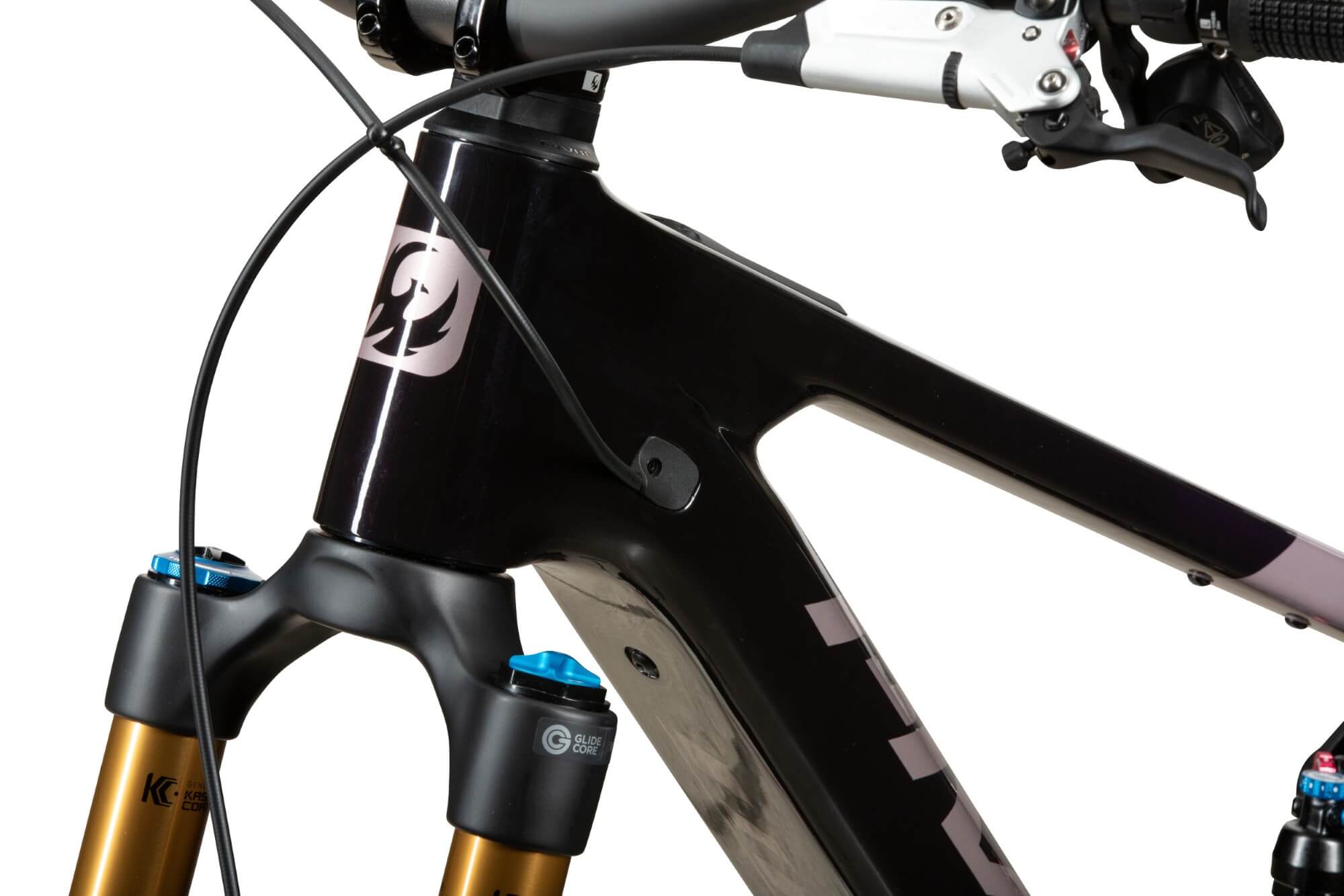

• Full internal routing with Pivot Cable Port System
• Injection molded rubberized frame protection
• Pivot dock tool system compatible
• Water bottle clearance on all sizes

Specs

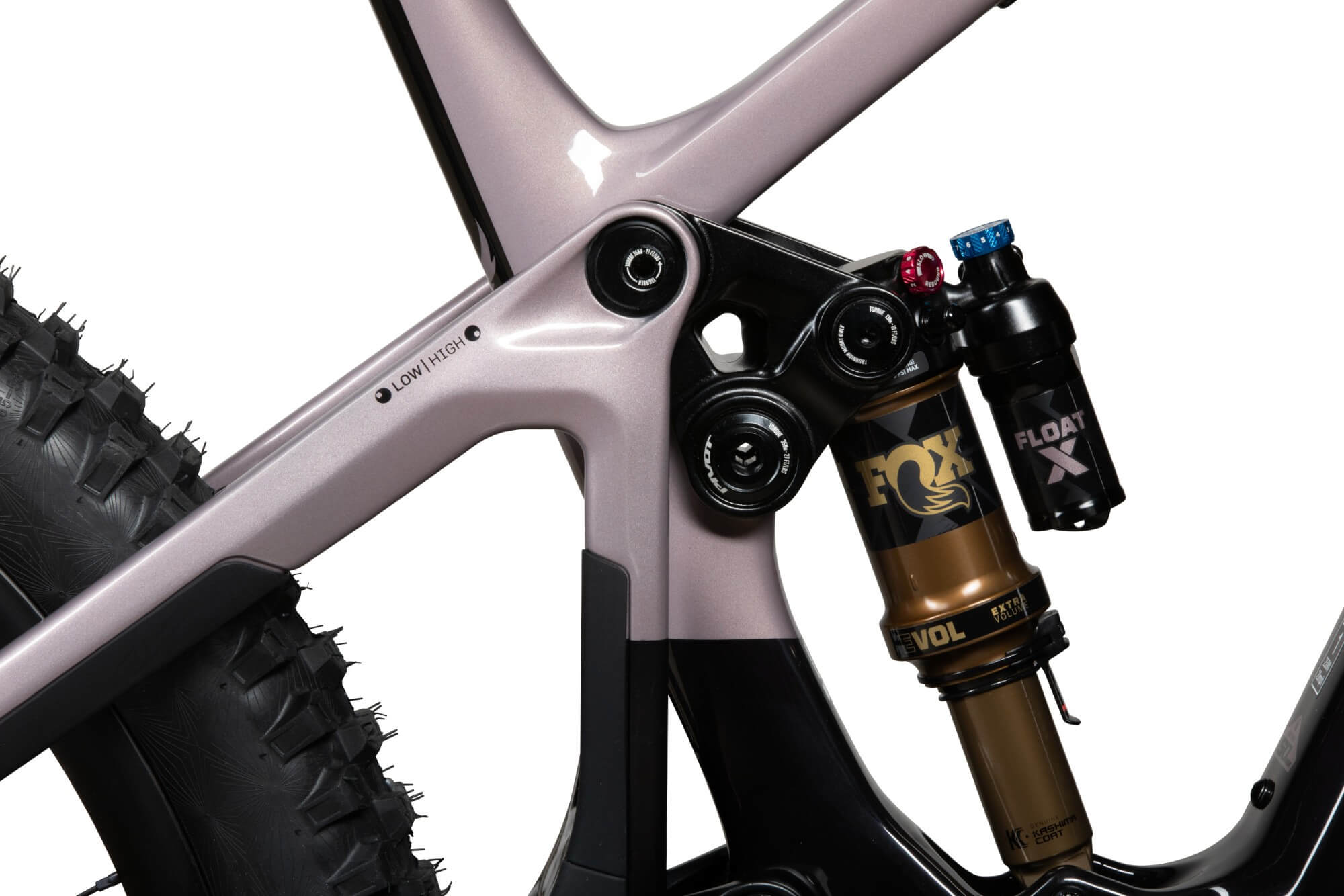

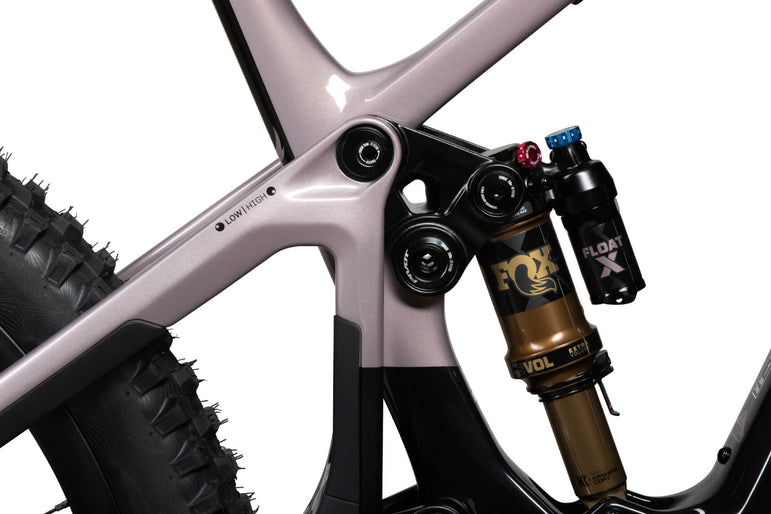

REAR SHOCK - Fox Factory Float X

FORK - Fox Factory 38 29”, 44mm offset, GRIP X2 - 160mm

HEADSET - Pivot Precision Sealed Cartridge

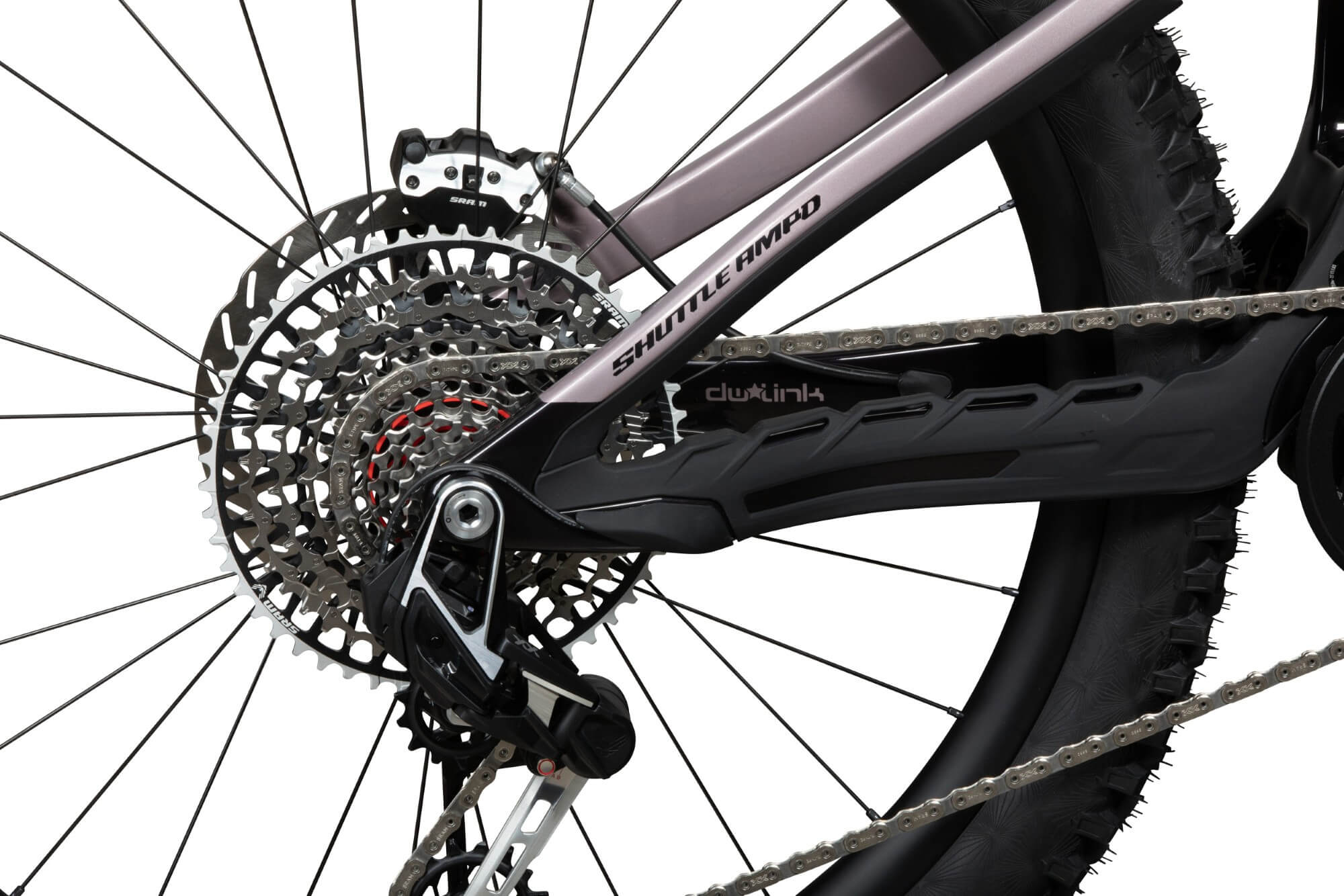

REAR DERAILLEUR - Sram XX Eagle Transmission 12-Speed

SHIFTER - Sram AXS Pod Controller

CASSETTE - Sram XX 1297 Eagle Transmission 12-Speed

CHAIN - Sram XX Eagle Flattop 12-Speed

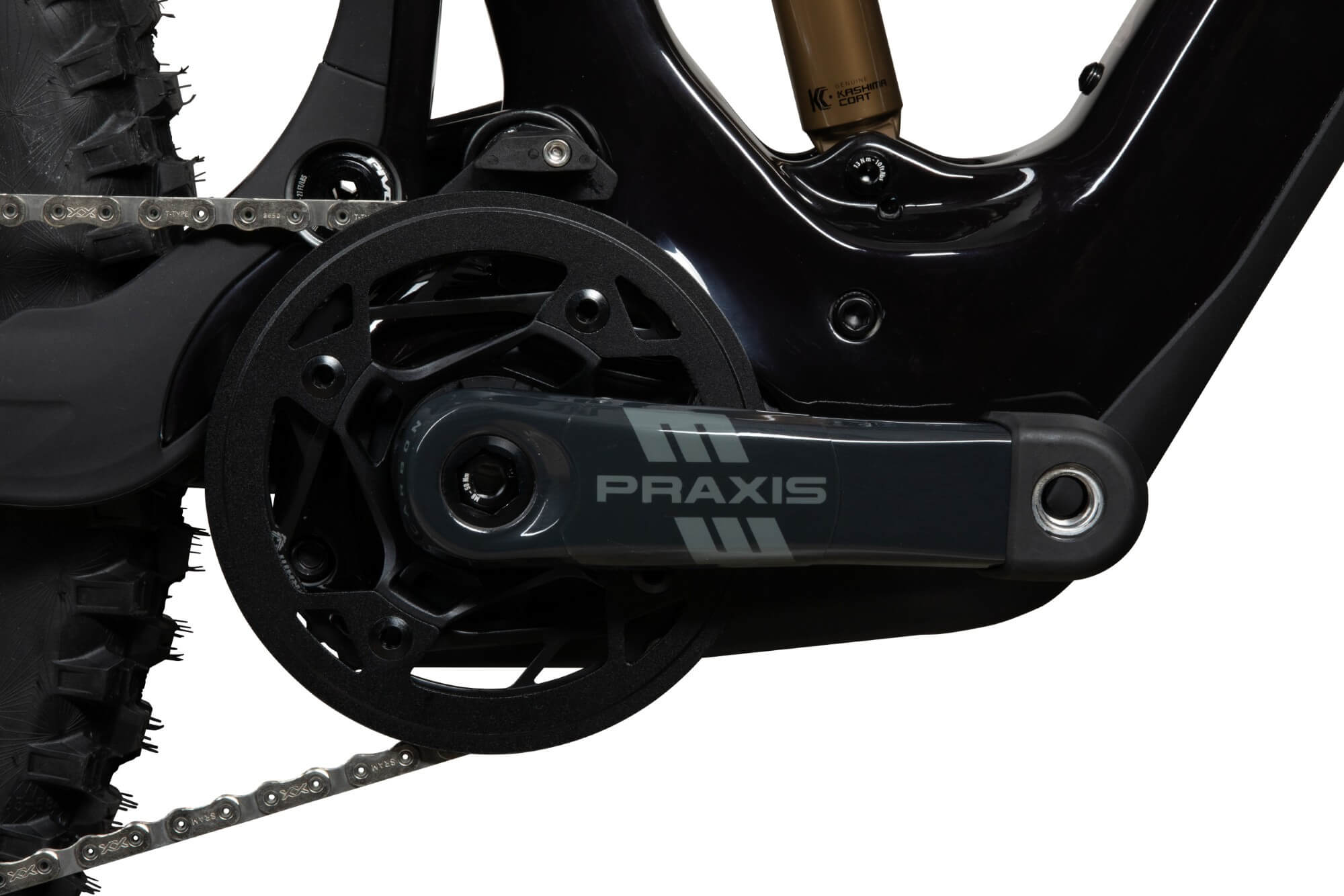

CRANKS - Praxis Carbon eCranks E-MTB 34t - 155mm

BRAKES - Sram Maven Ultimate 4-piston

ROTORS - Sram HS2 2.0 6 Bolt | F - 200mm / R - 200mm

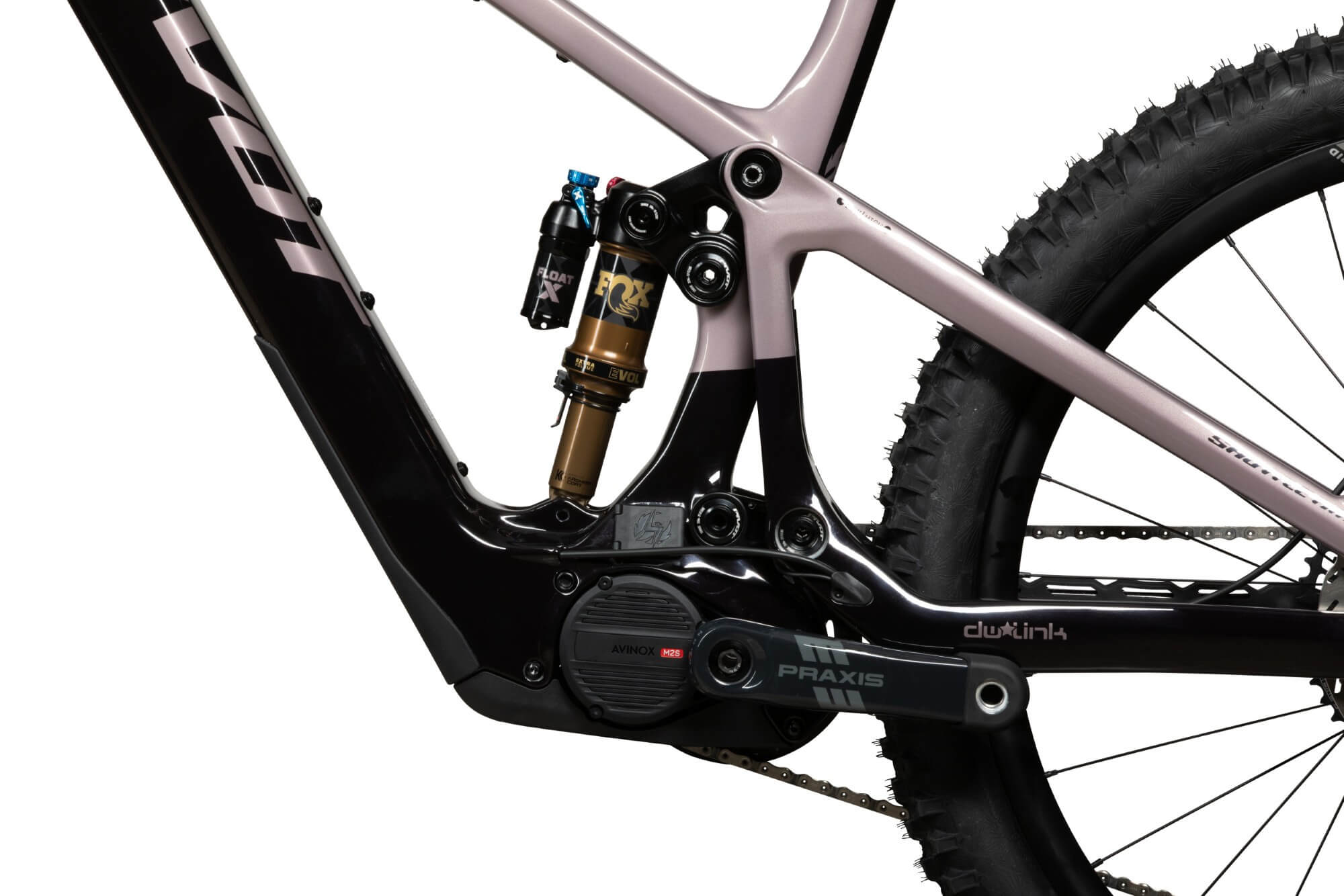

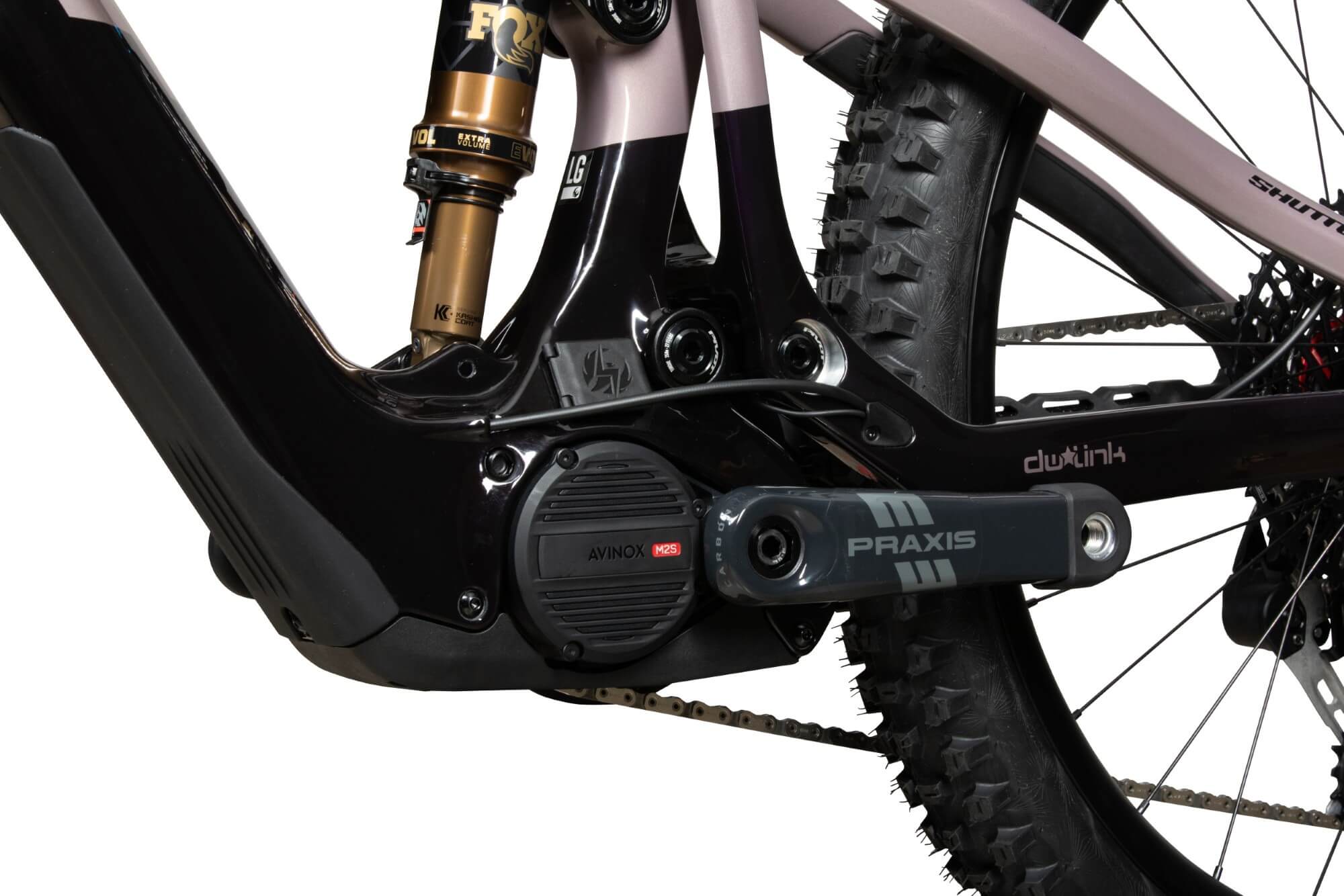

DRIVE UNIT - Avinox M2S

BATERY - Avinox 800Wh

DISPLAY - Avinox OLED Control Display w/ L/R Remotes

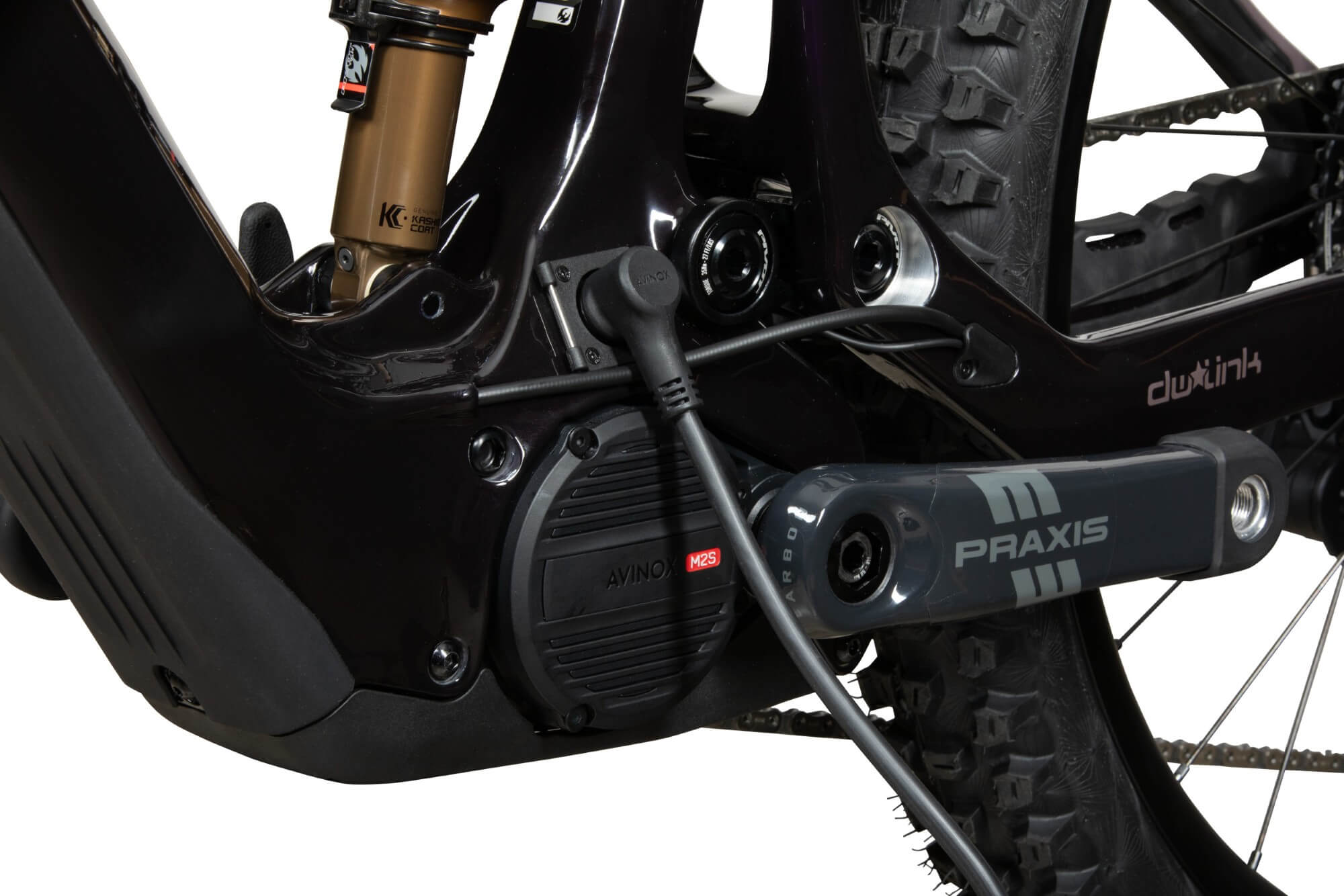

CHARGER - Avinox 508W Charger

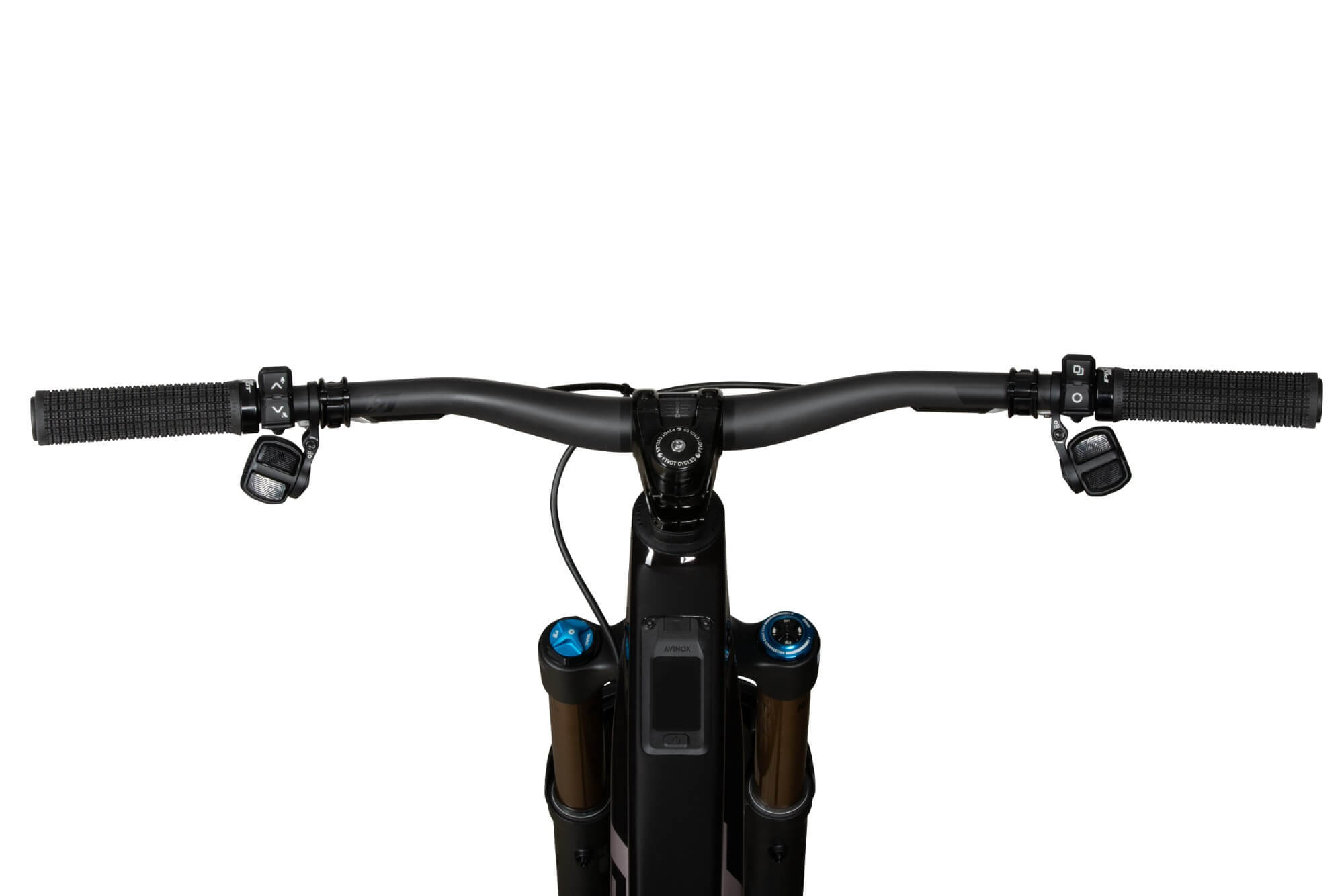

HANDLEBAR - Phoenix Race Carbon- 20mm Rise 780mm(XS-SM), 35mm Rise 780mm(MD-XL)

GRIPS - Phoenix Factory Lock-On

STEM - Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)

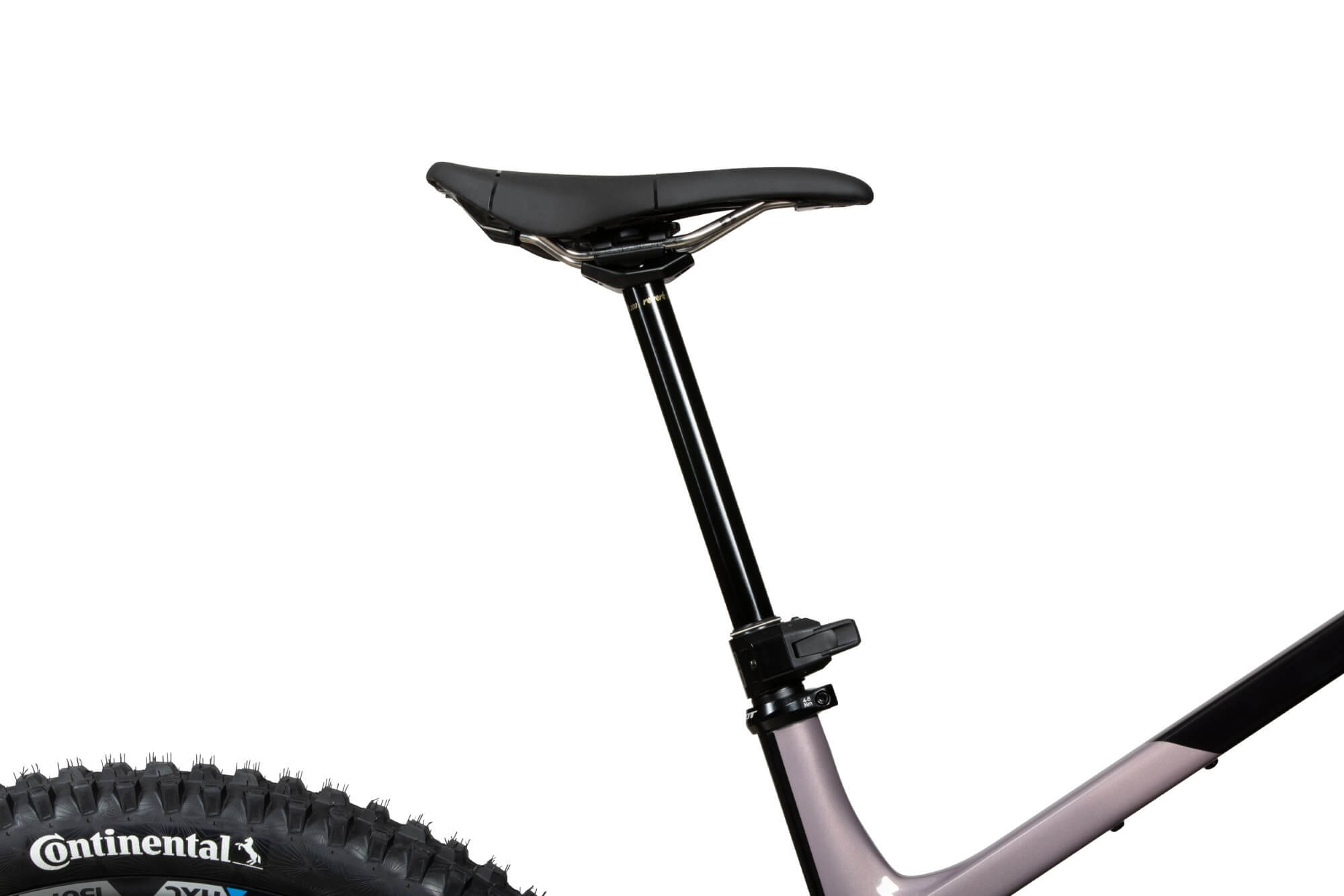

SEATPOST - RockShox Reverb V2 150mm (XS-SM), 175mm (MD), 200mm (LG), 225mm (XL)

SADDLE -  Pivot Team E-Bike

WHEELS - DT Swiss Hybrid HXC1501 Carbon, 30mm - Mixed | F - 15x110 / R - 12x157

FRONT TIRE - Continental Kryptotal-F 29” x 2.4” Super Soft Compound Enduro Casing

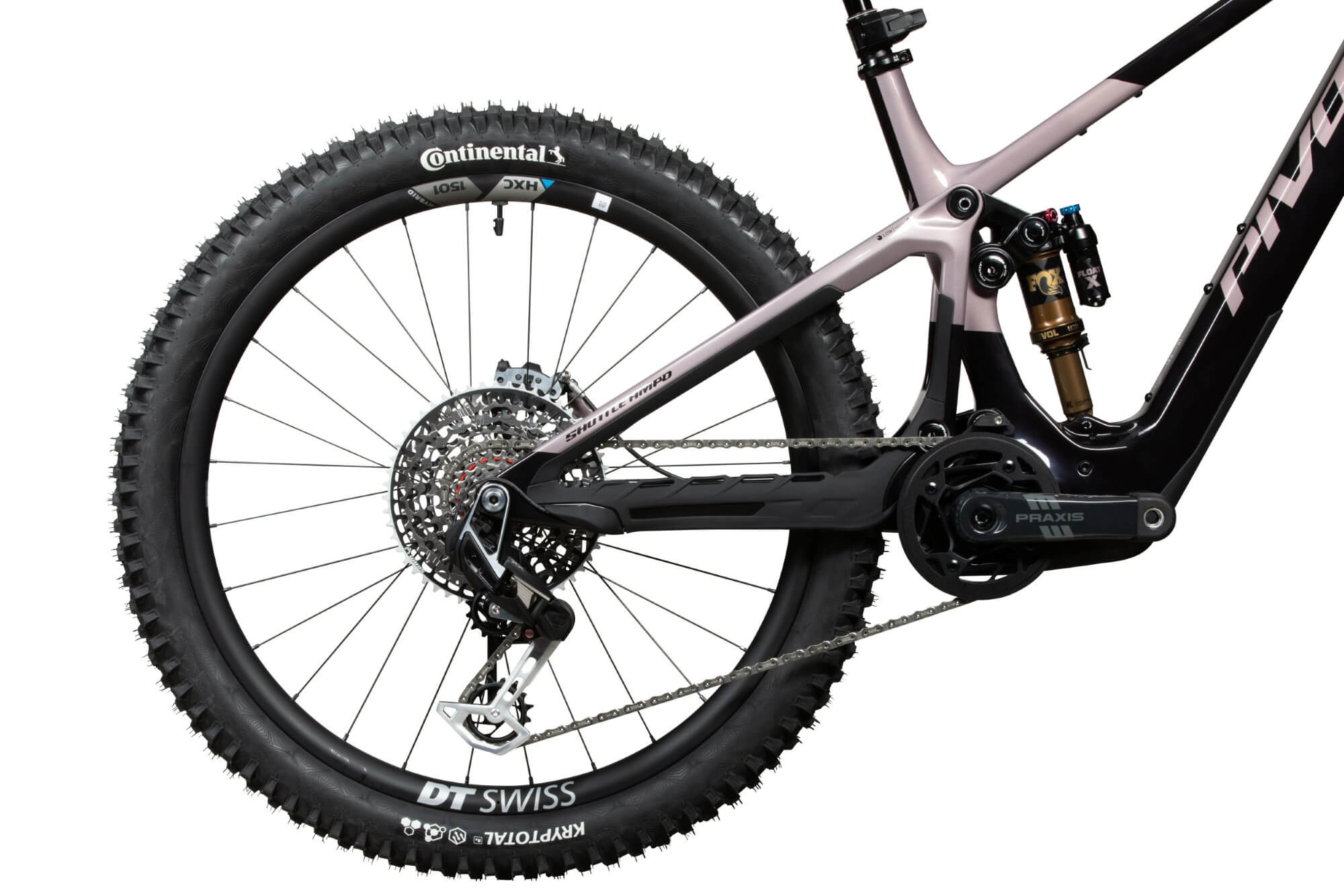

REAR TIRE - Continental Kryptotal-R 27.5” x 2.6” Soft Compound Enduro Casing
