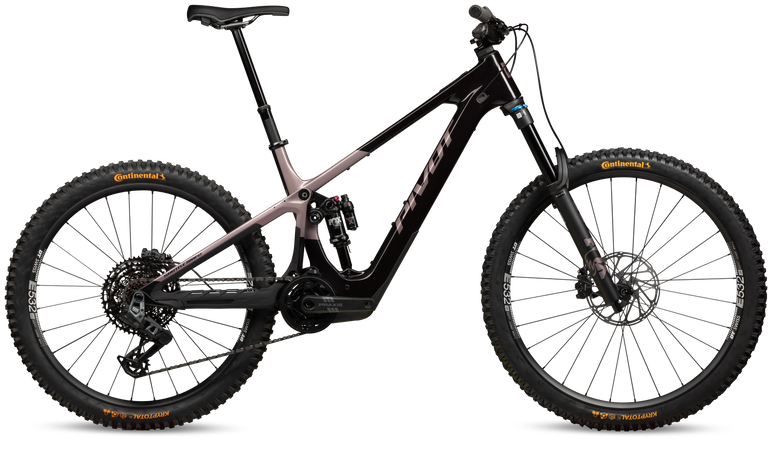

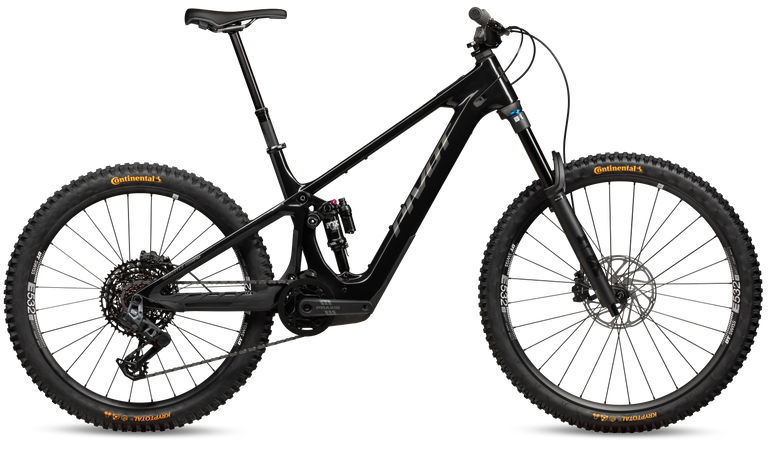

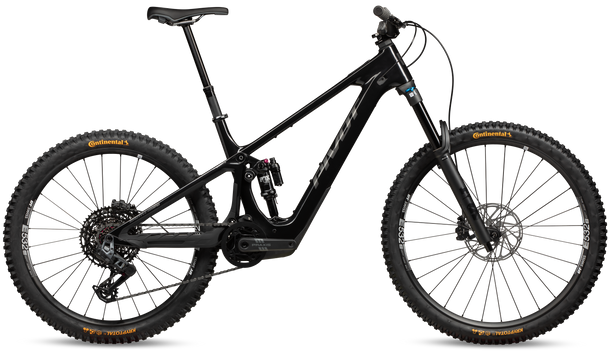

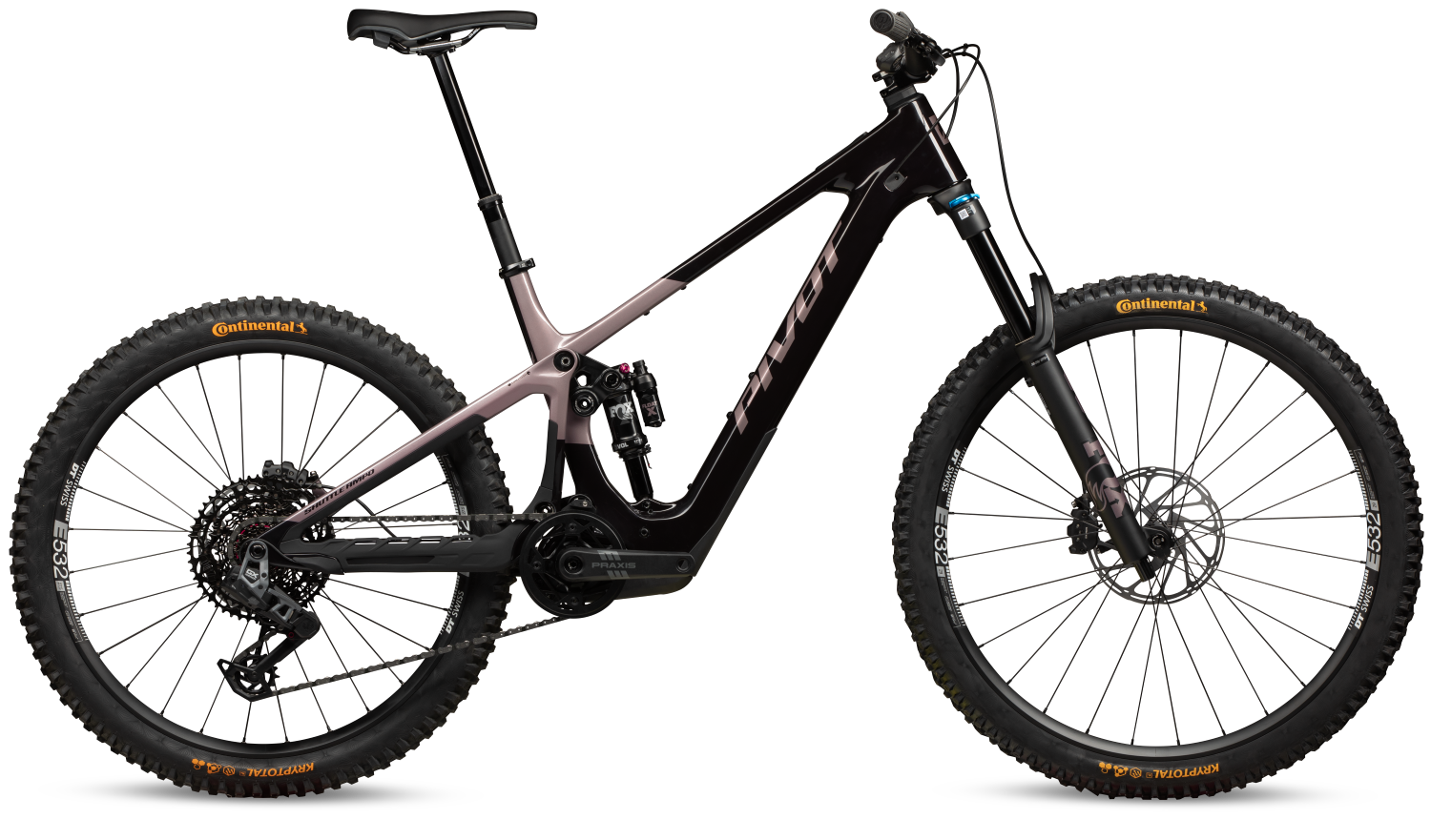

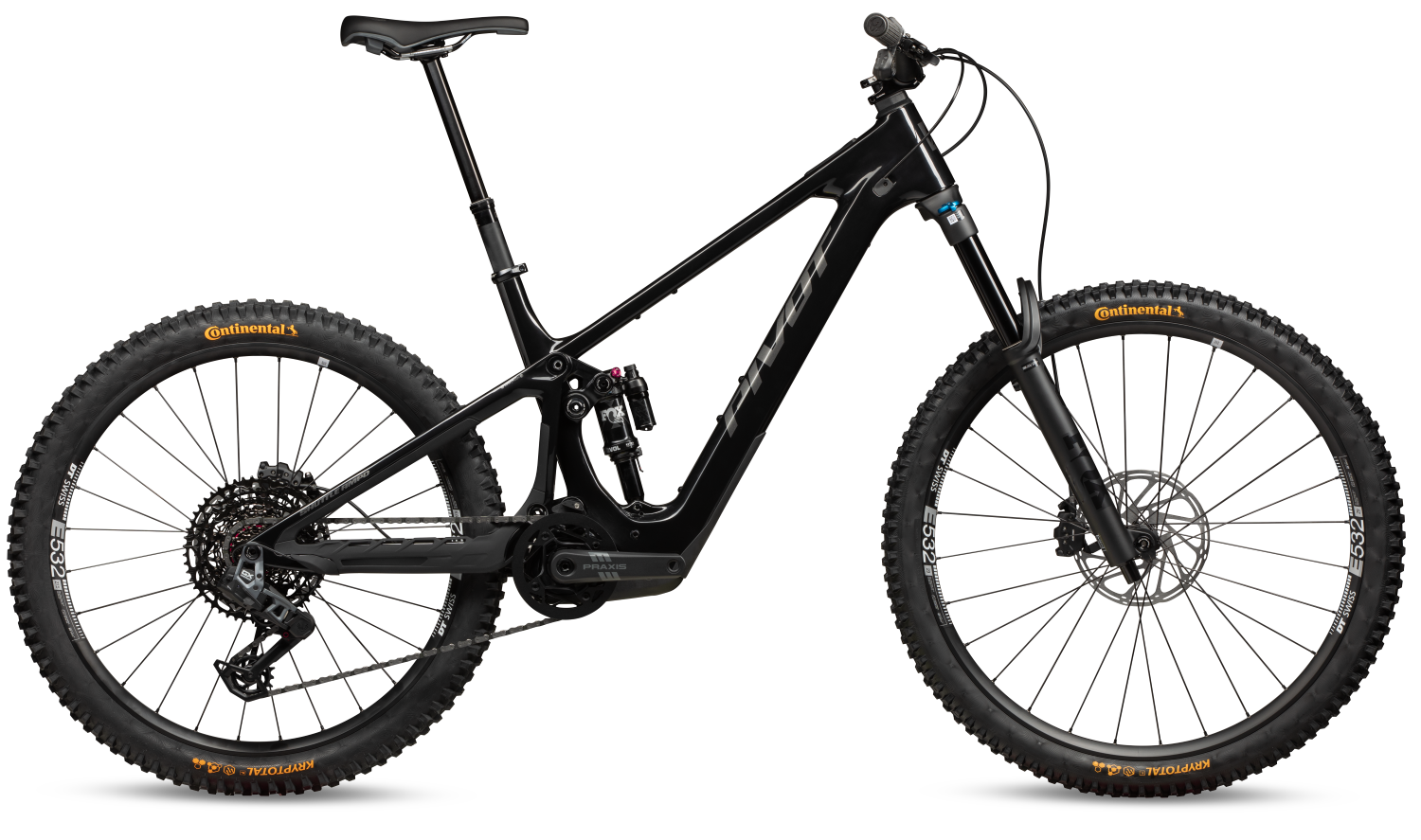

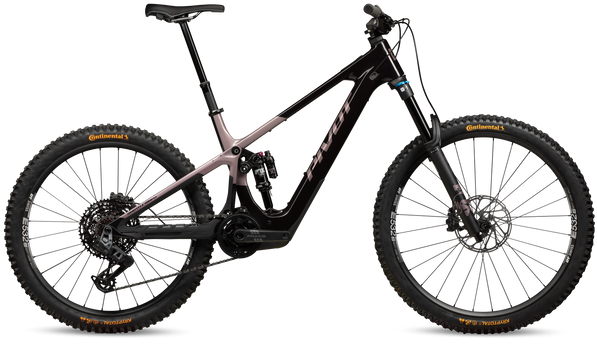

Shuttle AMP'D Ride GX

Pivot Cycles introduces the all-new Shuttle AMP’d – a bike that brings a full-volume assault to the mountain. Built to shred with sharp reactions, lively handling and a ride that stays settled even when the trail is not. The Shuttle AMP’d stays planted and aggressive through it all.

• Ultra light Hollow Core carbon frame
• Avinox M2S drive unit and long-range 800Wh battery across all build levels
• Available in XS to XL frame sizes
• Full-color, OLED touchscreen display
• Wireless Avinox remotes
• 160mm travel fork
• 150mm of progressive rear suspension travel
• Mixed-wheel setup
• Geo flip chip via upper link mount
• Full internal routing with Pivot Cable Port System
• Injection molded rubberized frame protection
• Pivot dock tool system compatible
• Water bottle clearance on all sizes

Specs

REAR SHOCK - Fox Performance Float X

FORK - Fox Performance 38 29”, 44mm offset, GRIP - 160mm

HEADSET - Pivot Precision Sealed Cartridge

REAR DERAILLEUR - Sram GX Eagle Transmission 12-Speed

SHIFTER - Sram AXS Pod Controller

CASSETTE - Sram XS-1270 Eagle Transmission 10 -52t

CHAIN - Sram Eagle 70 Flattop 12-Speed

CRANKS - Praxis Alloy eCranks E-MTB 34t - 155mm

BRAKES - Sram Maven 4-piston

ROTORS - Sram Centerline 2.0 6 Bolt | F - 200mm / R - 200mm

DRIVE UNIT - Avinox M2S

BATERY - Avinox 800Wh

DISPLAY - Avinox OLED Control Display w/ L/R Remotes

CHARGER - Avinox 168W Charger

HANDLEBAR - Phoenix Race Aluminum- 20mm Rise 780mm(XS-SM), 35mm Rise 780mm(MD-XL)

GRIPS - Phoenix Factory Lock-On

STEM - Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)

SEATPOST - OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL))

SADDLE -  Pivot Team E-Bike

WHEELS - DT Swiss E532, 30mm - Mixed - Mixed | F - 15x110 / R - 12x157

FRONT TIRE - Continental Kryptotal-F 29” x 2.4” Super Soft Compound Enduro Casing

REAR TIRE - Continental Kryptotal-R 27.5” x 2.6” Soft Compound Enduro Casing
