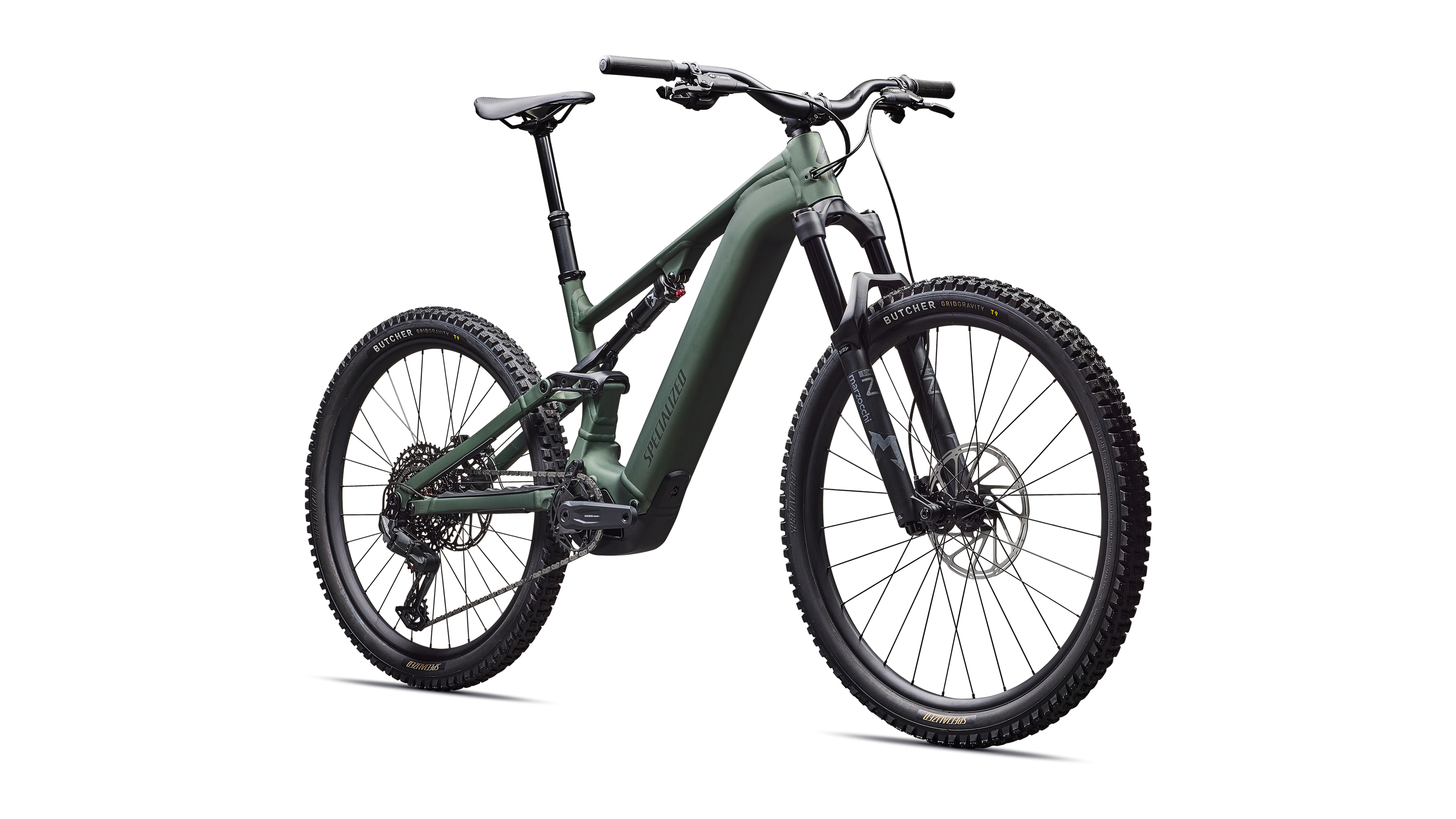

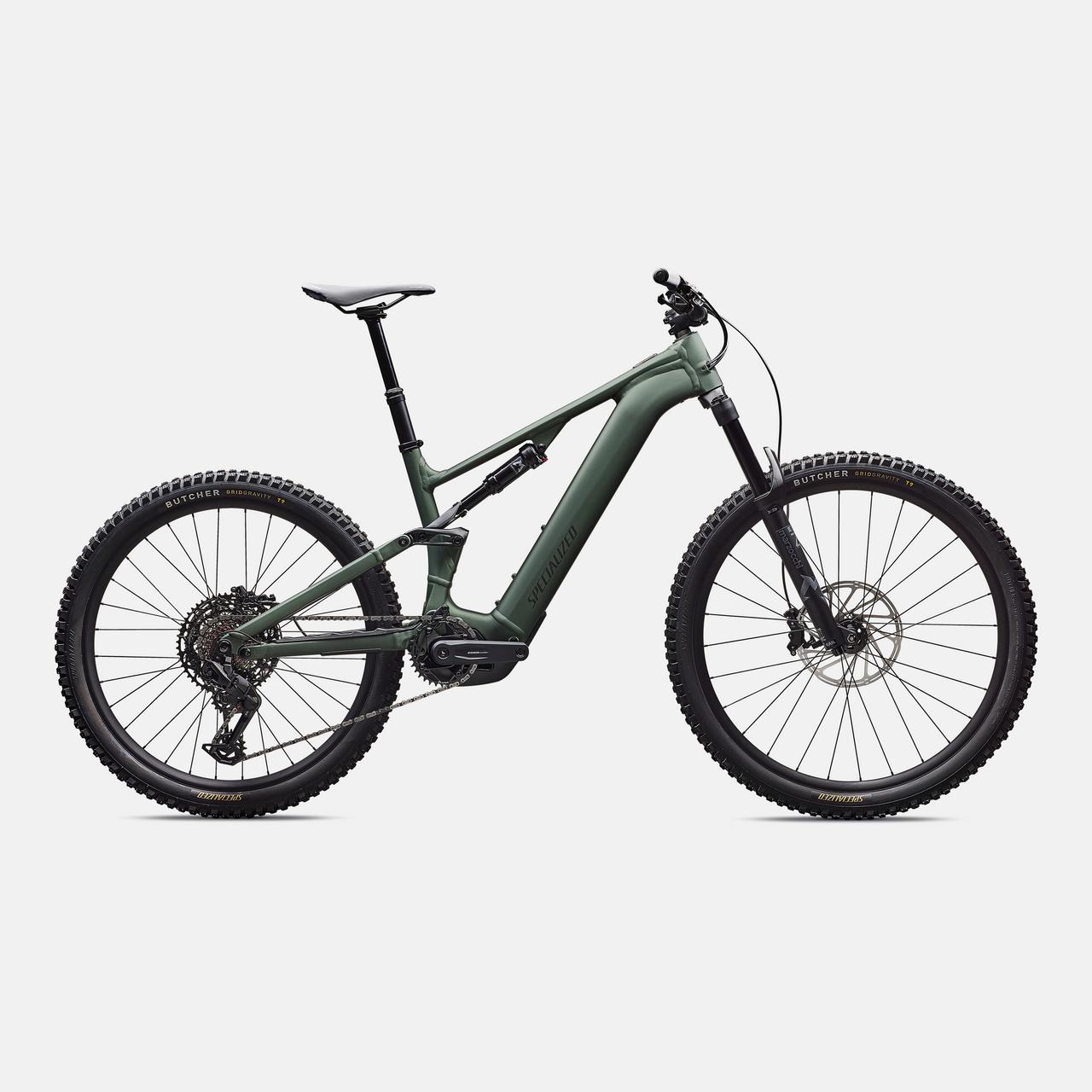

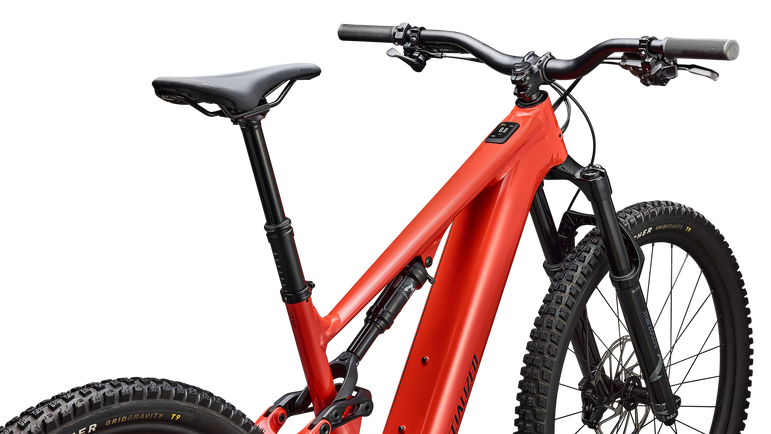

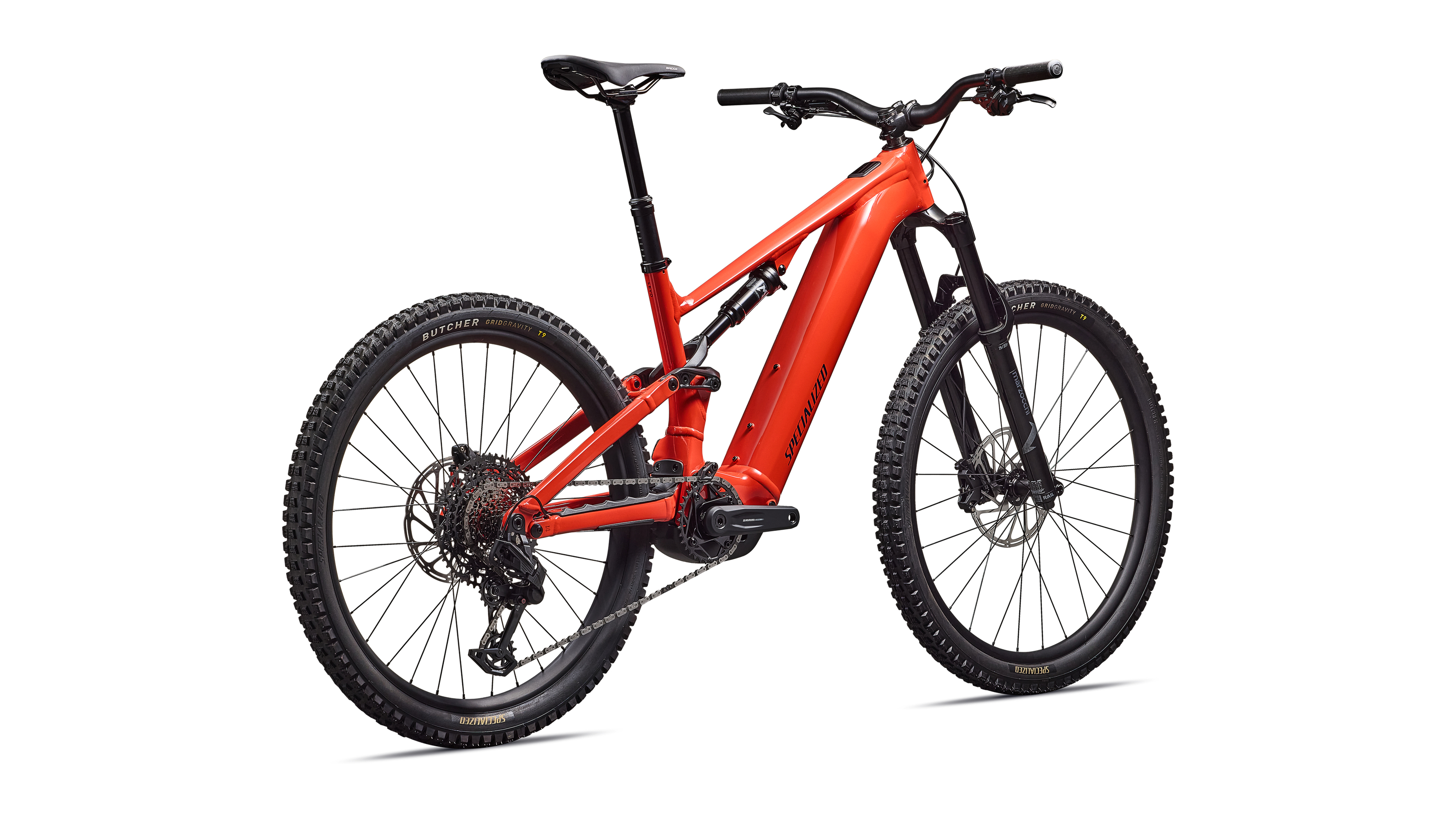

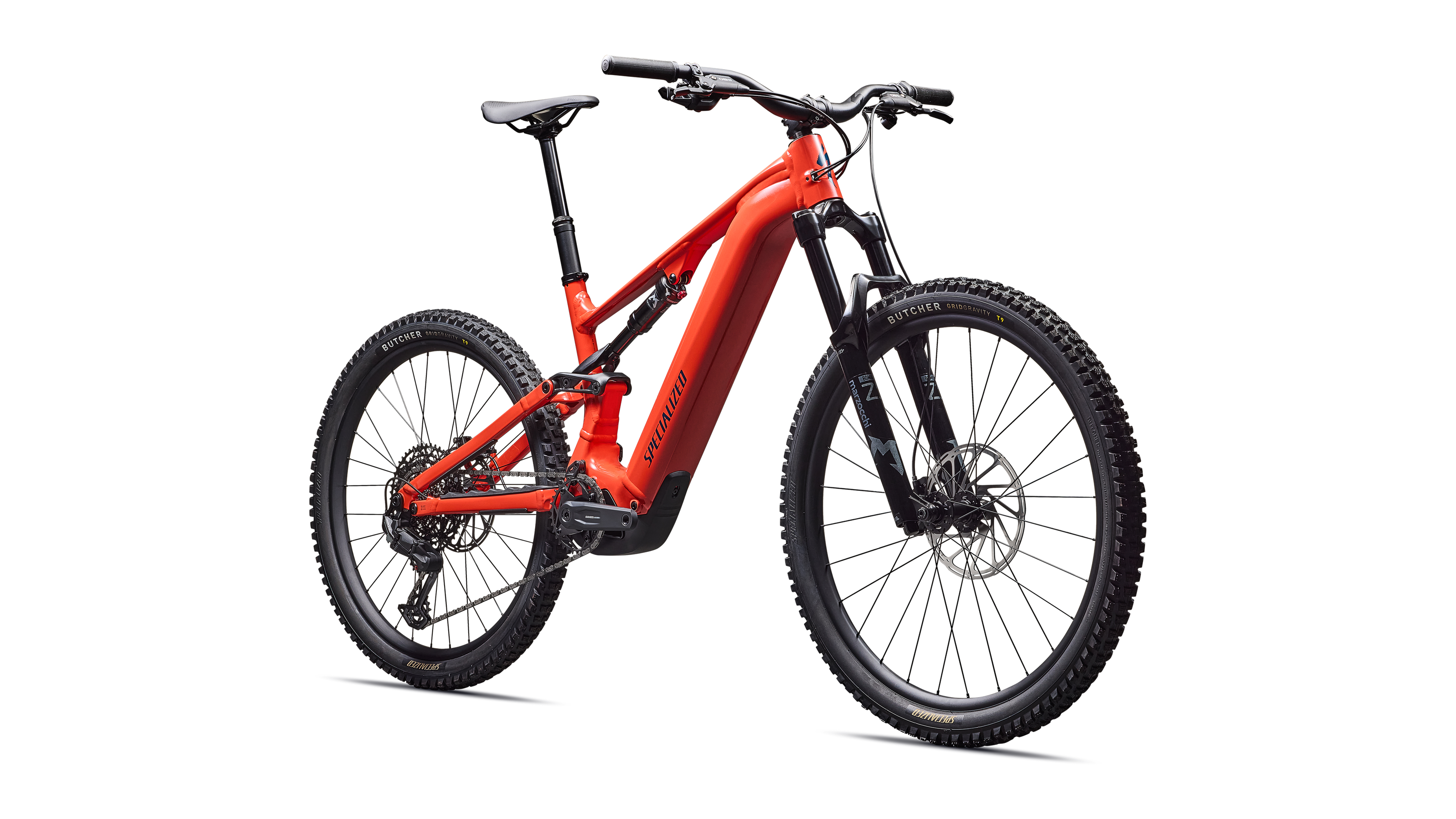

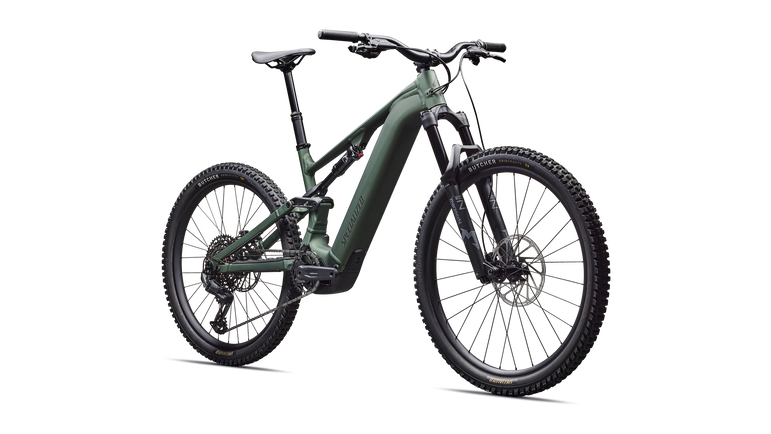

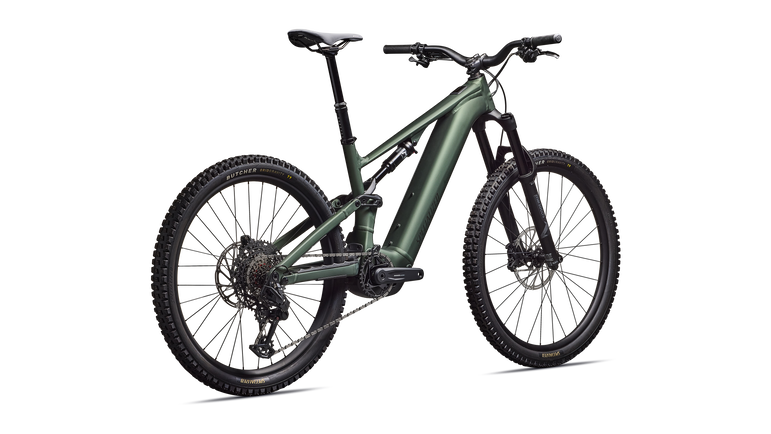

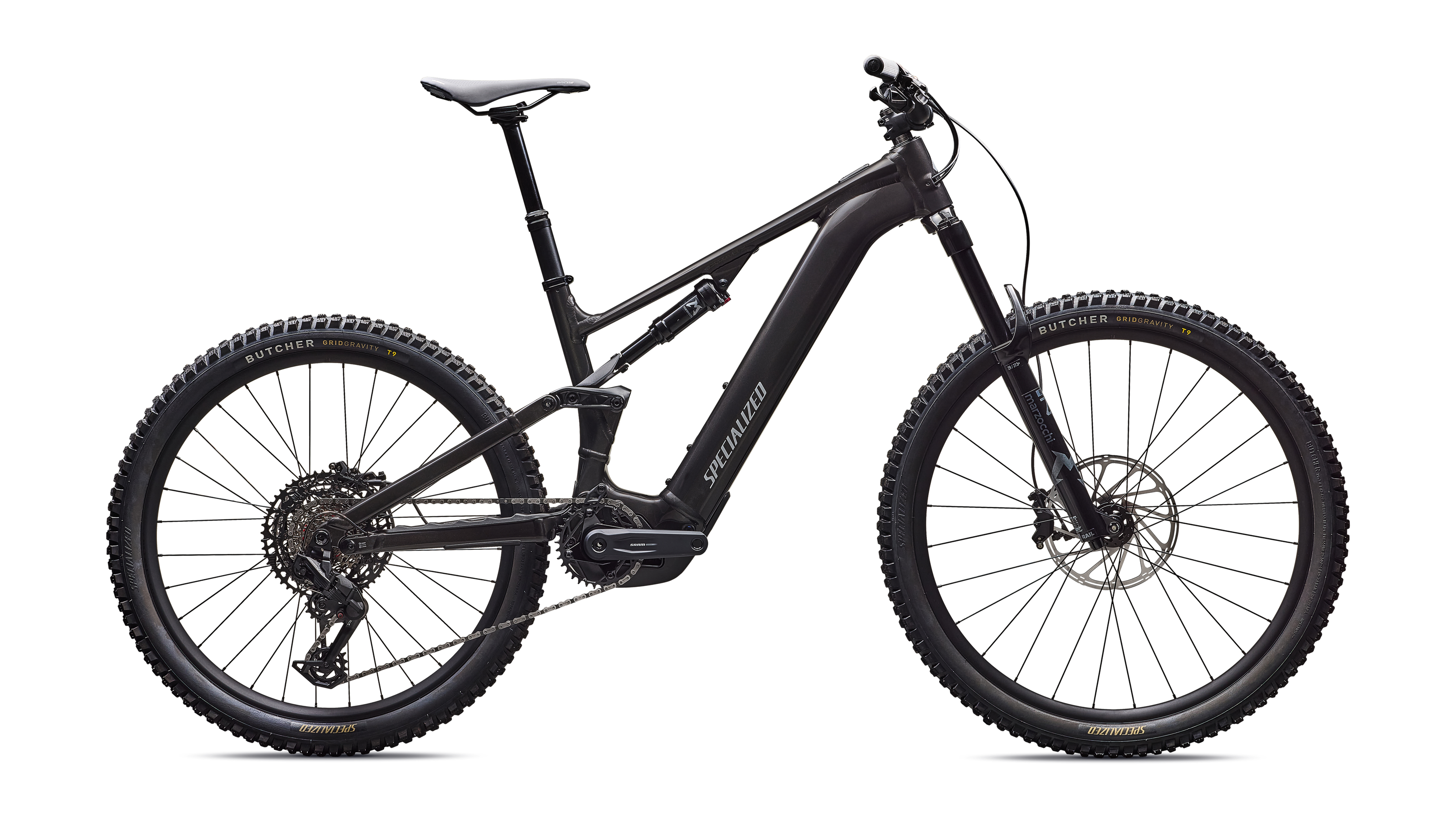

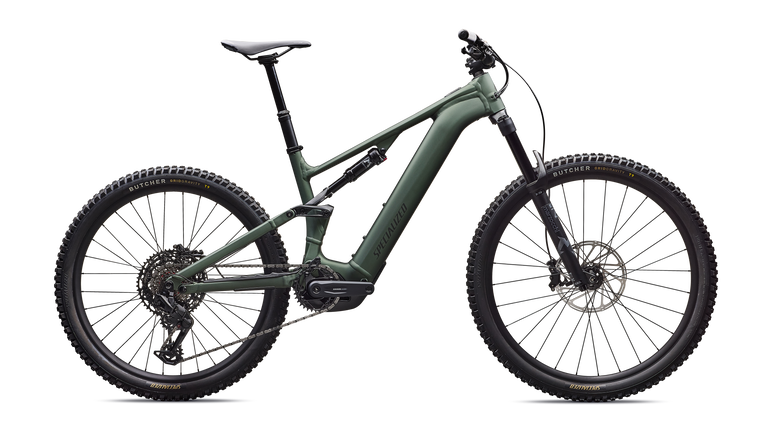

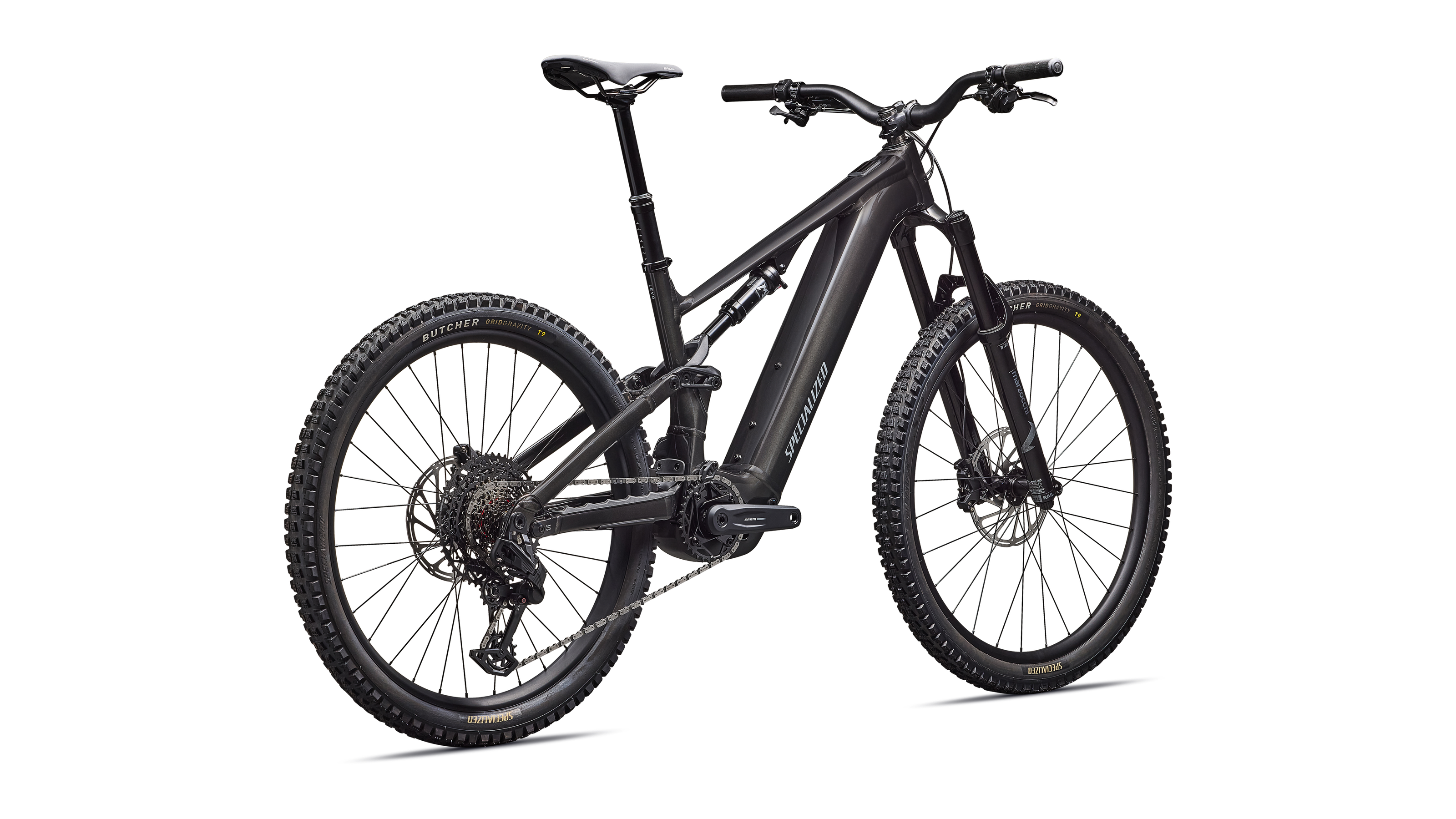

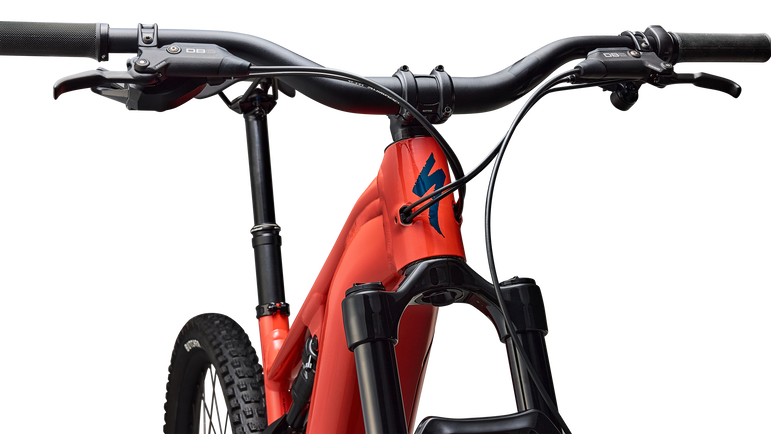

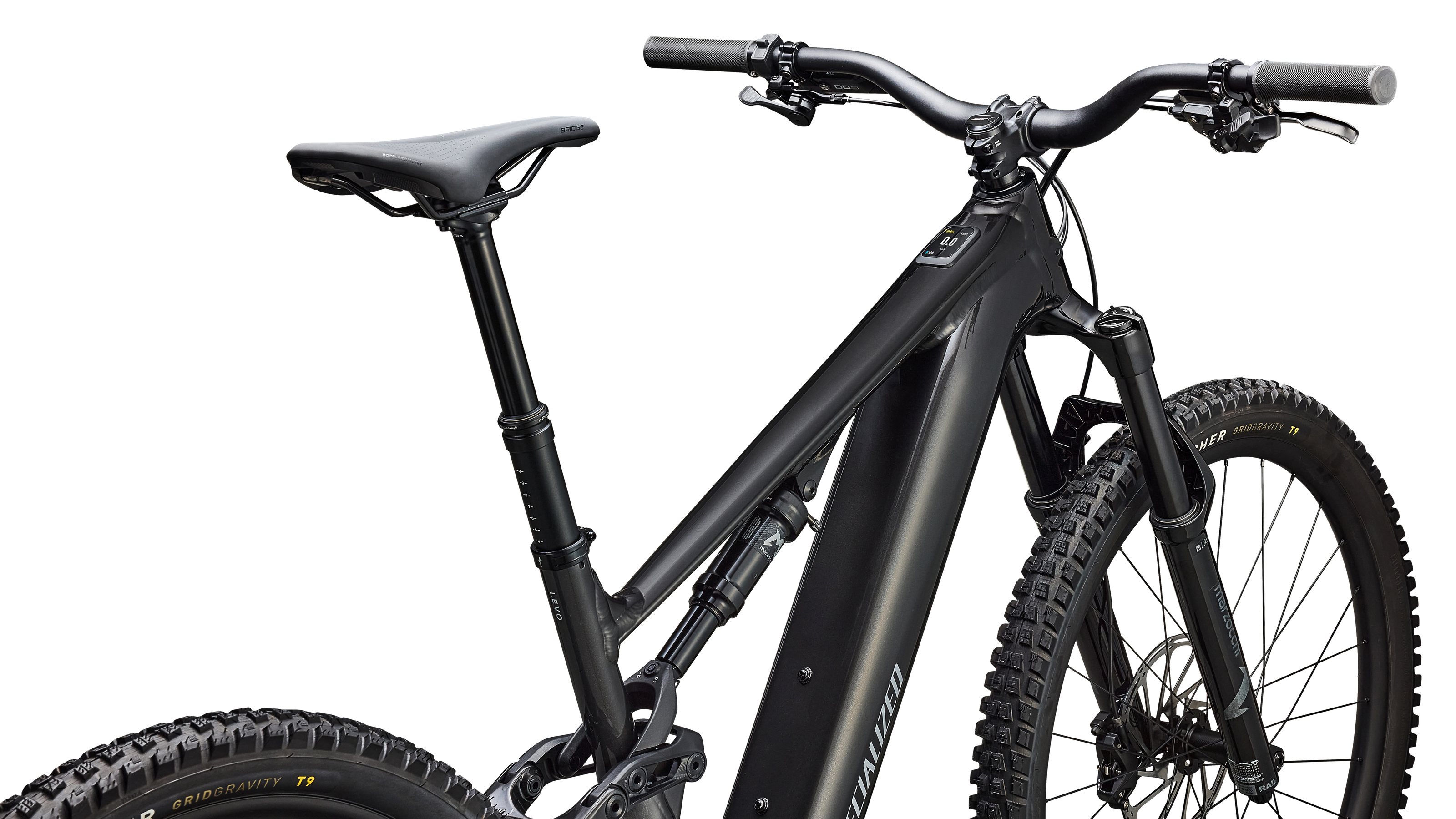

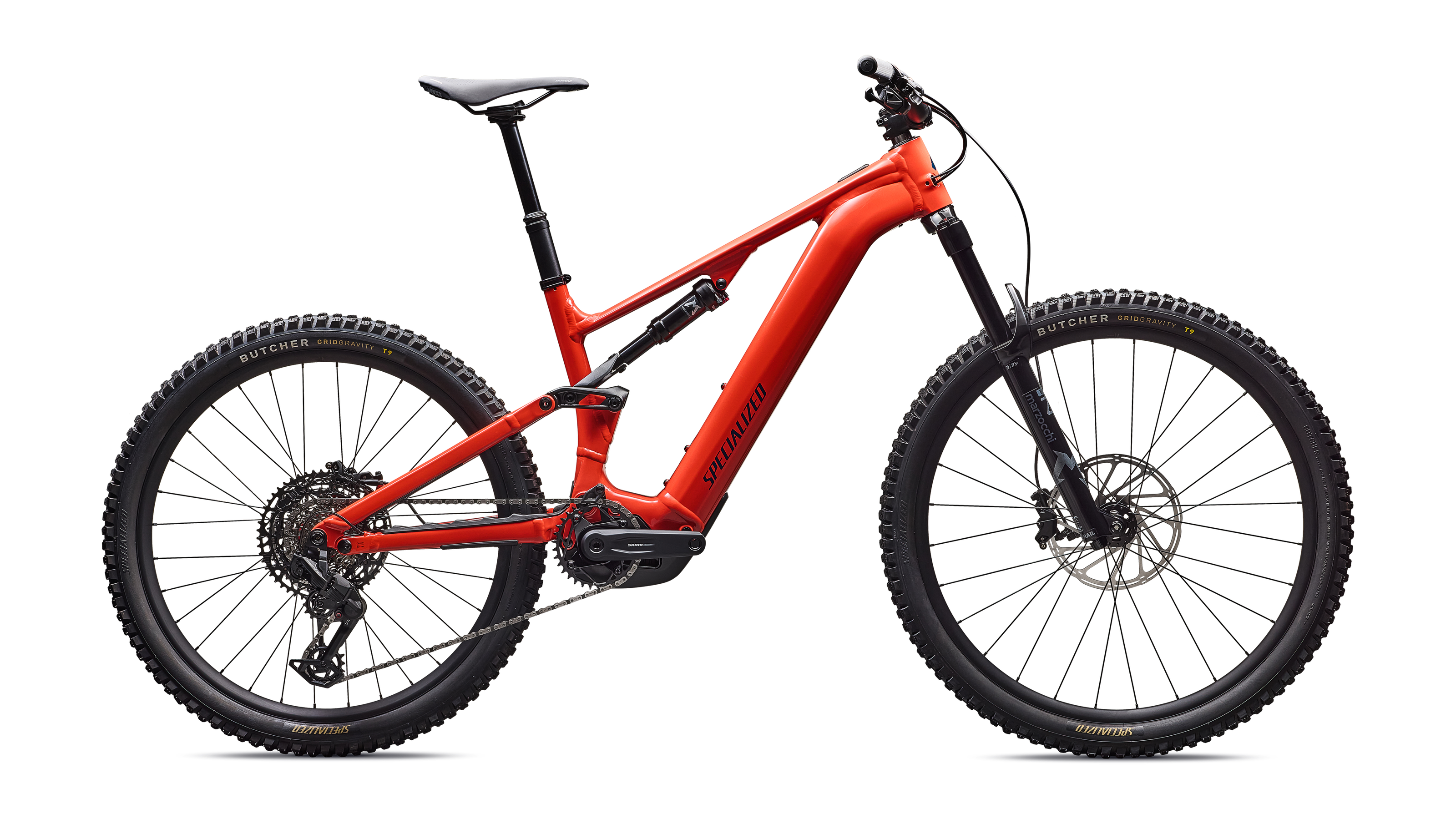

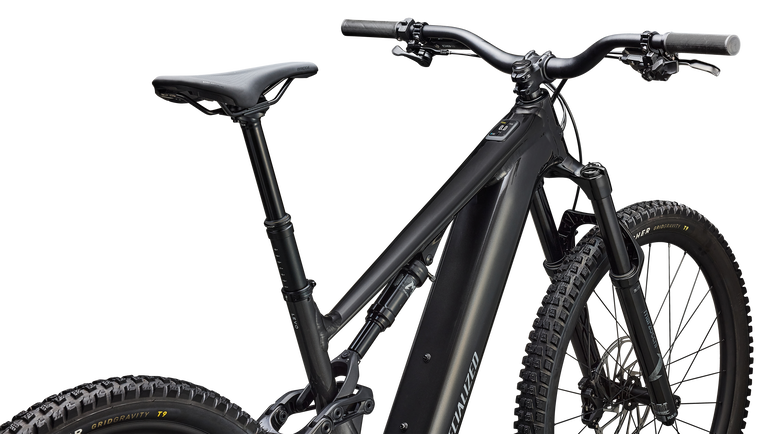

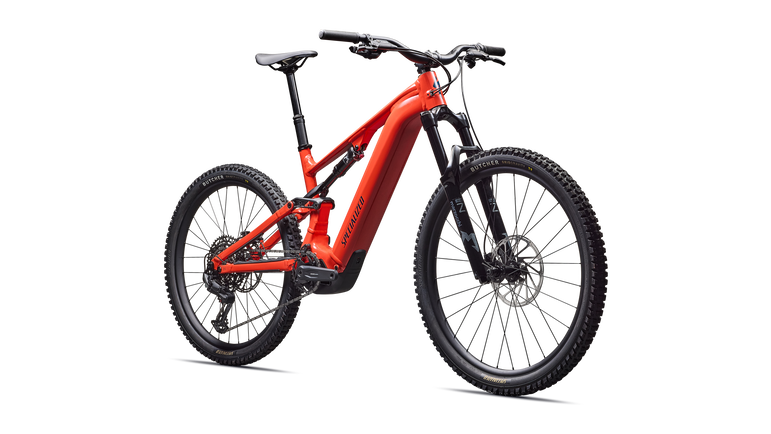

Turbo Levo 4 Alloy

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling...
Specialized Part no. 95226-7001

In stock, ready to ship

    $8,200.00
    $8,200.00
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy
    Turbo Levo 4 Alloy

    Turbo Levo 4 Alloy

    Turbo Levo 4 Alloy

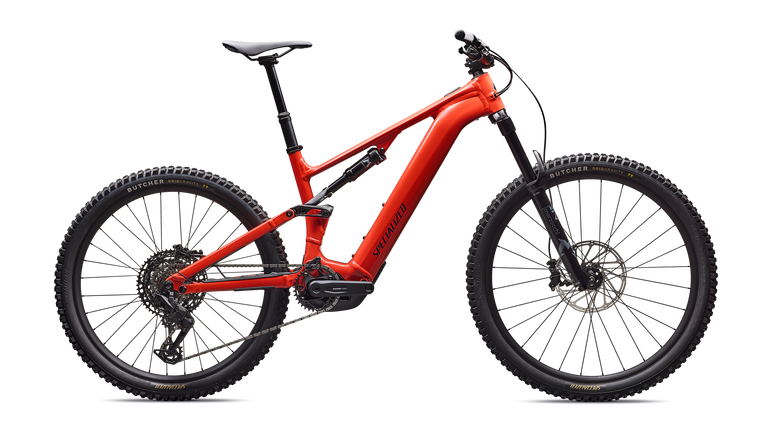

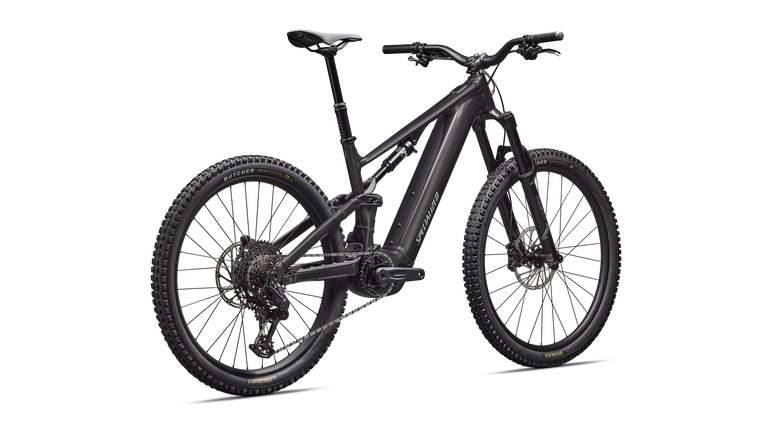

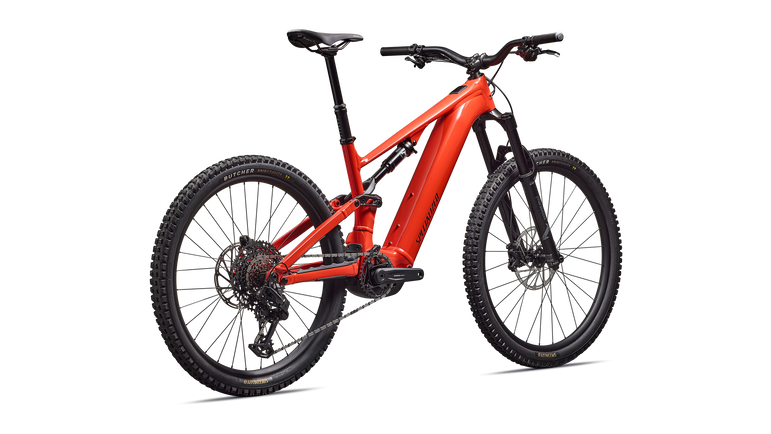

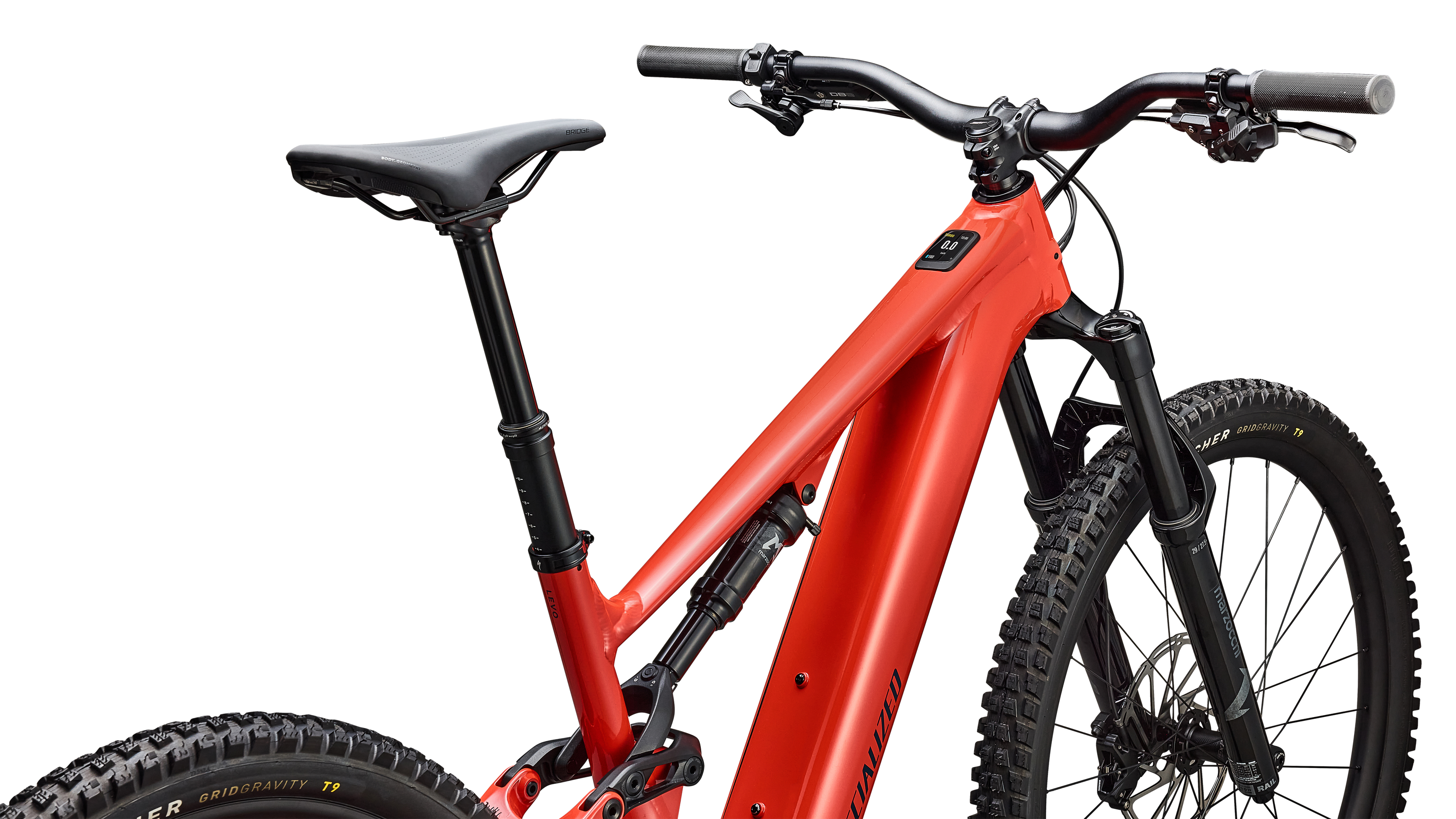

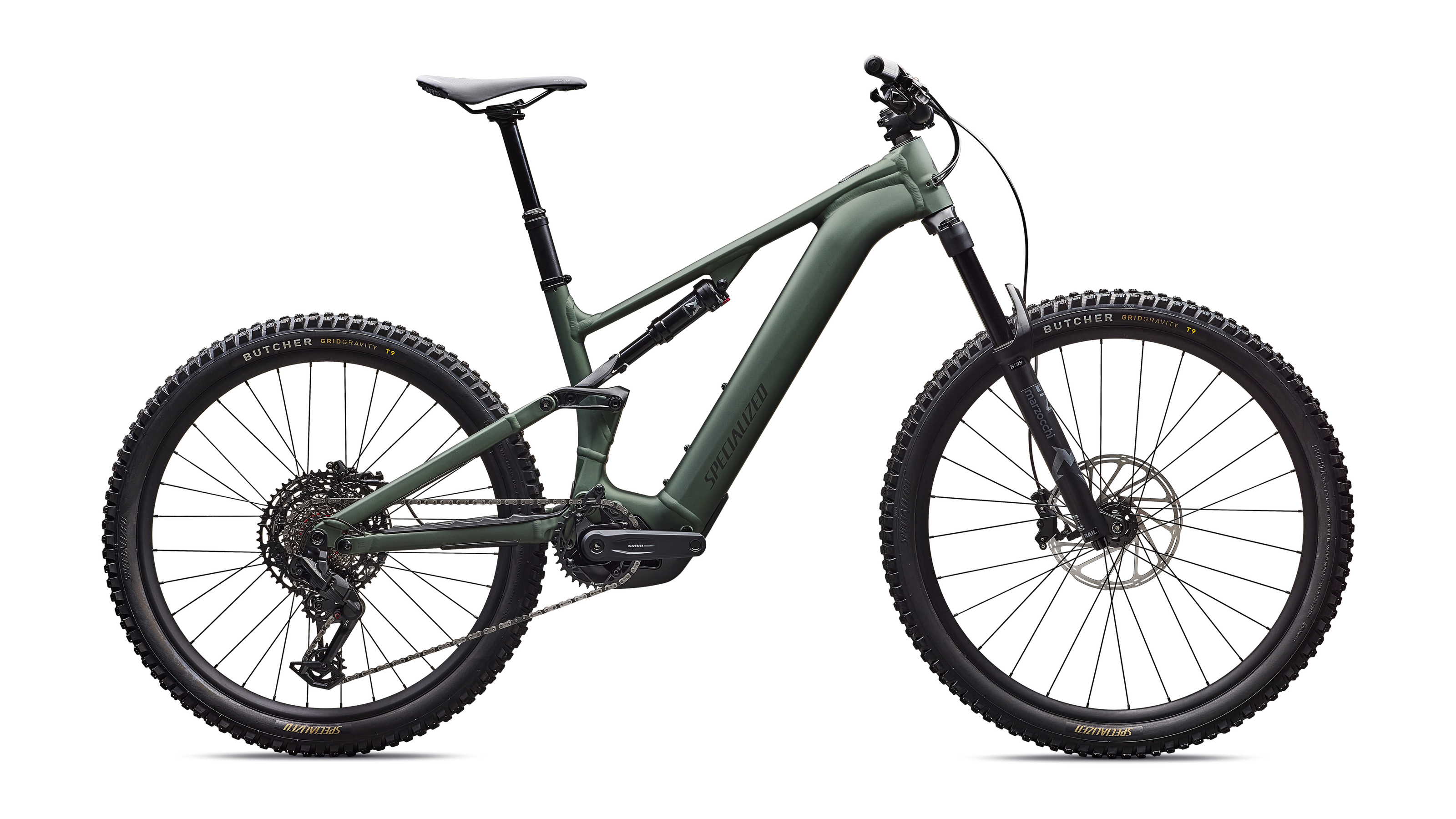

    The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail

    E-System - Specialized 3.1 Motor w/ 810 Watts & 105Nm, 840Wh Battery, up to 5 hour range

    Frame - Premium M5 Alloy, Geo Adj & SWAT Storage

    Front: 160mm Marzocchi Bomber Z1, Rear: 150mm Marzocchi Bomber Inline

    Drivetrain - SRAM 70 Eagle T-Type Mechanical

    Wheels - Specialized Alloy / Bear Pawls hubs







    Product Specifications

    Frame

    All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

    Seat Binder

    Alloy, 38.6mm

    SWAT

    SWAT internal downtube storage

    *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

    *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

    Fork

    Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

    Seat Post

    TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

    Saddle

    Body Geometry Bridge Saddle, steel rails

    Stem

    Alloy Trail Stem, 35mm bar bore

    Grips

    Specialized Trail Grips

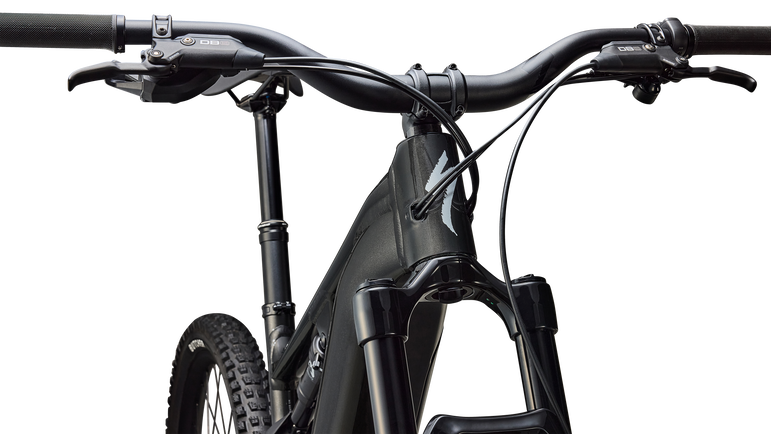

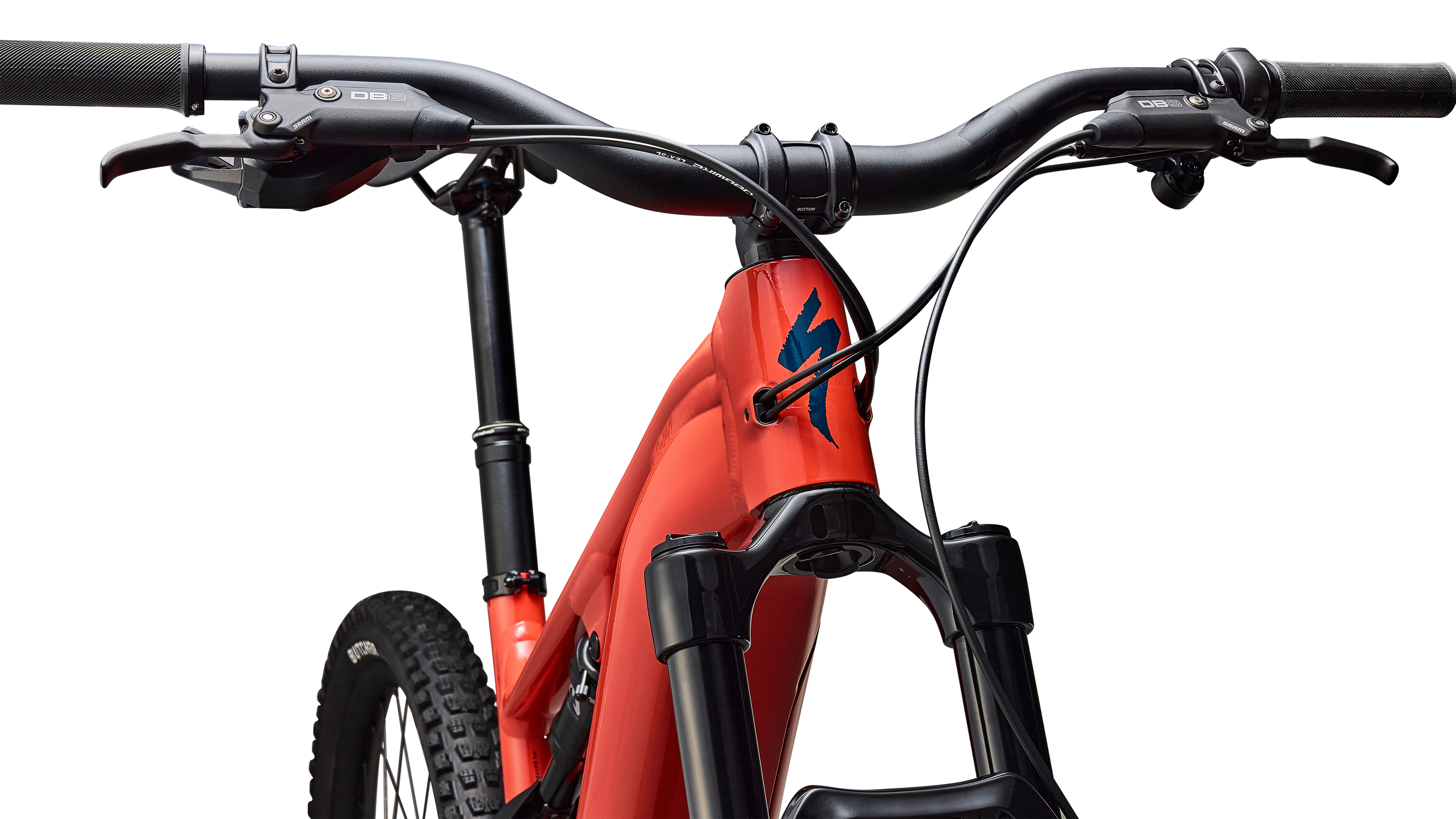

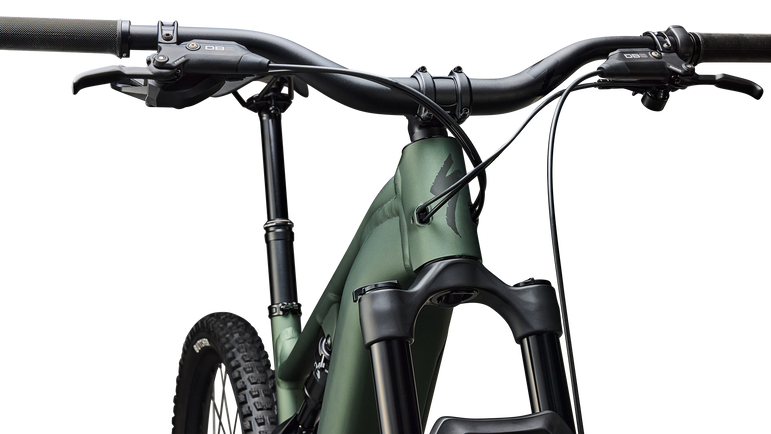

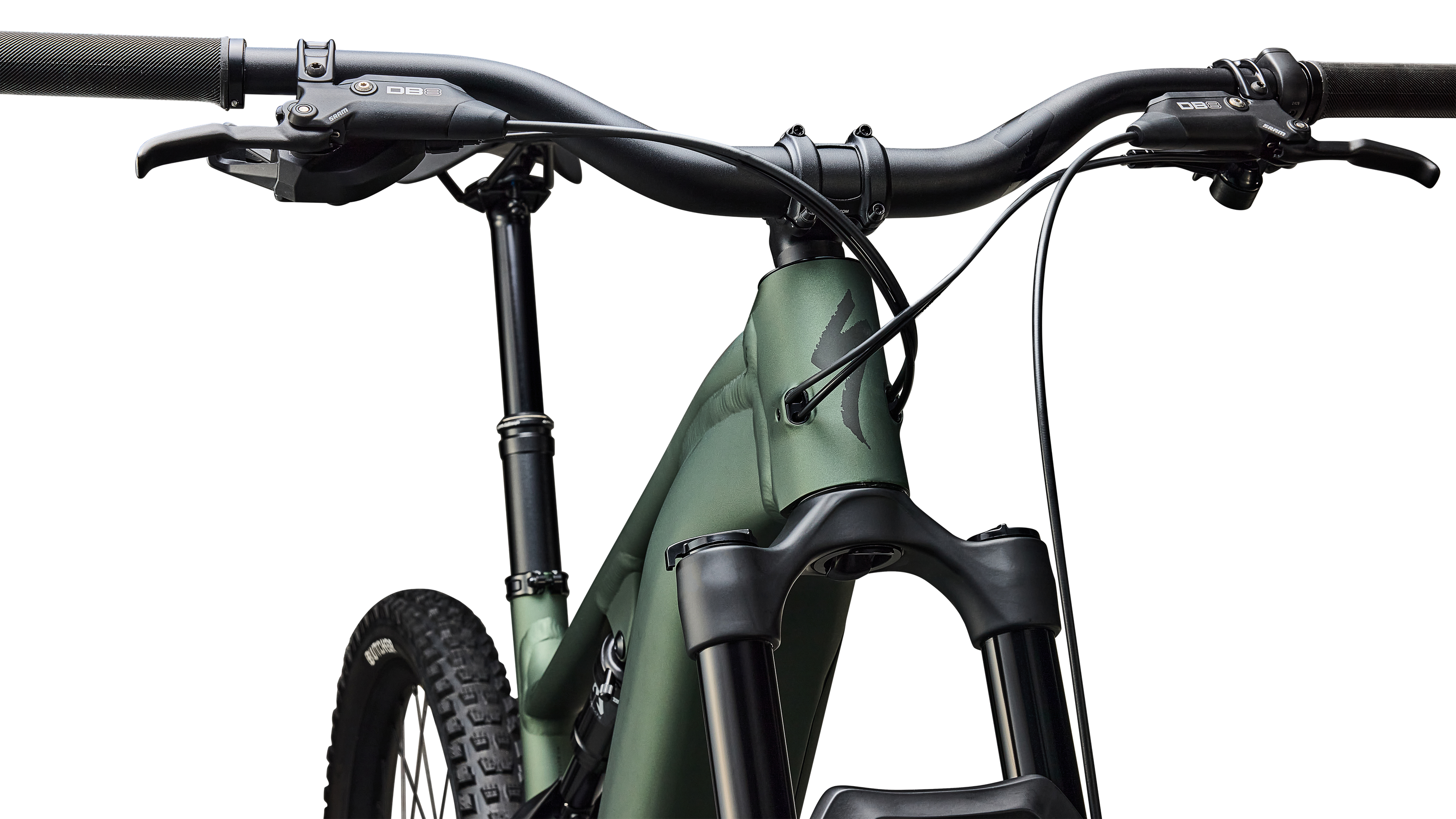

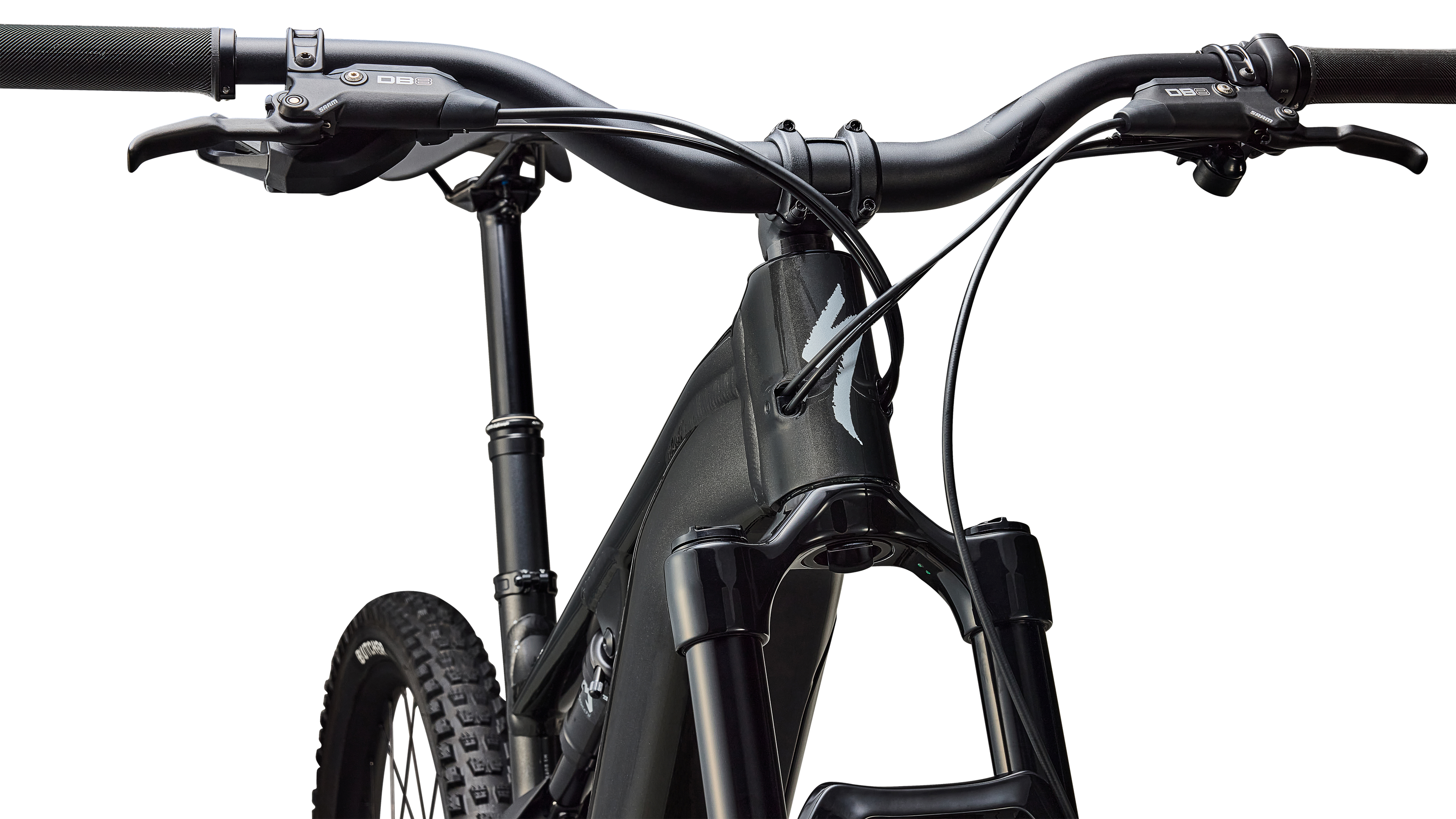

    Handlebars

    Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width/30mm rise, S3-S6 800mm width/50mm rise

    Front Brake

    SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

    Rear Brake

    SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

    Shift Levers

    SRAM 70 trigger, 12-speed, single click

    Rear Derailleur

    SRAM Eagle 70 T-Type

    Cassette

    XS-1270, 12-speed, 10-52t

    Shift Levers

    SRAM 70 trigger, 12-speed, single click

    Crankset

    SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

    Chain

    SRAM Eagle 70 T-Type Flattop Chain

    Chain Ring

    SRAM 34t T-Type chainring, 104 BCD, steel

    Front Hub

    Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

    Rear hub

    Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

    Rims

    Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

    Spokes

    DT Swiss Industry

    Tubes

    Standard, Presta valve

    Motor

    Specialized 3.1 Motor, 105Nm torque, 810W power

    UI Remote

    All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

    Battery

    840Wh battery

    Charger

    Specialized 4amp charger
